        Clipsal by Schneider Electric | MAX9 Surface Mount Enclosure 26 Pole 2 Row | IP40 Indoor

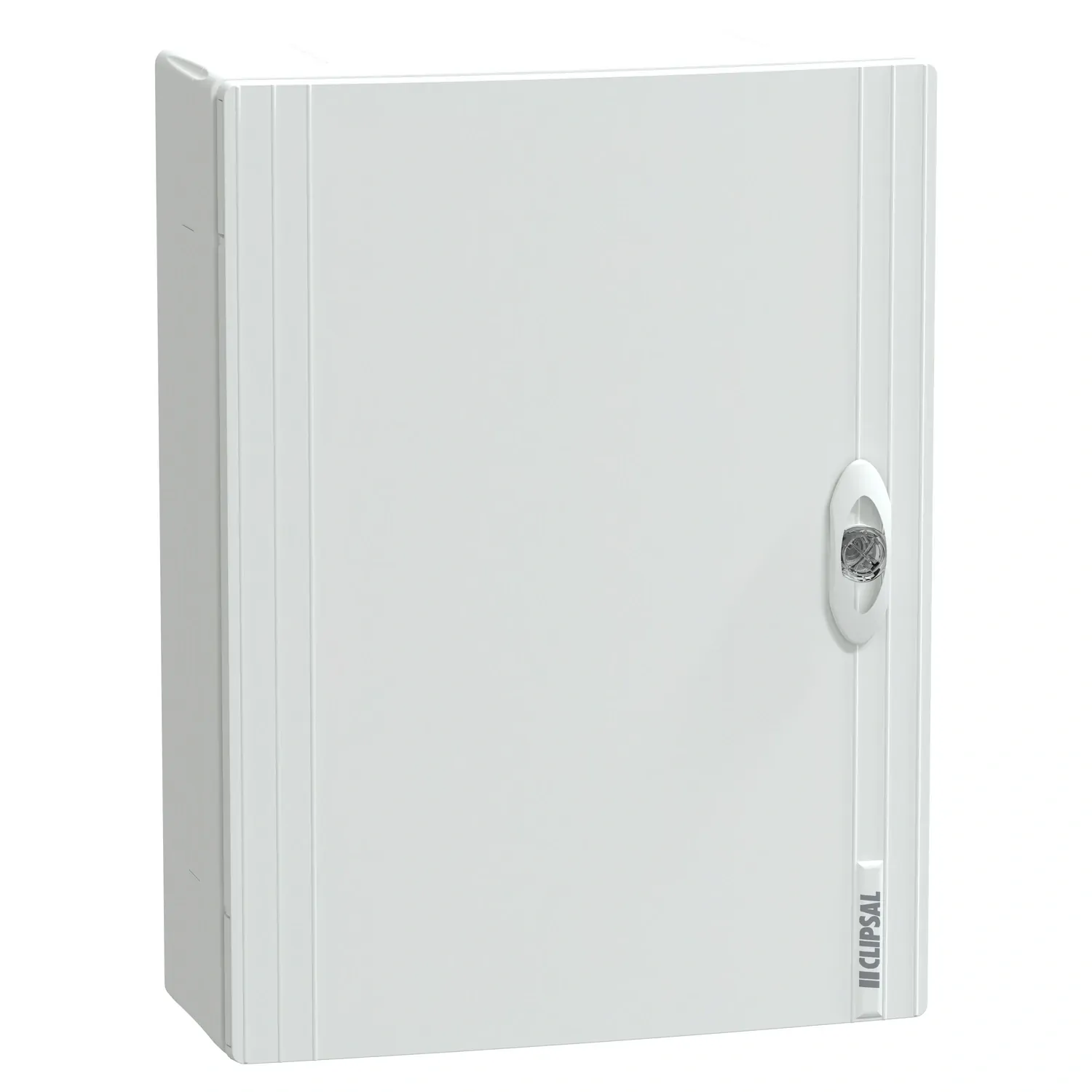

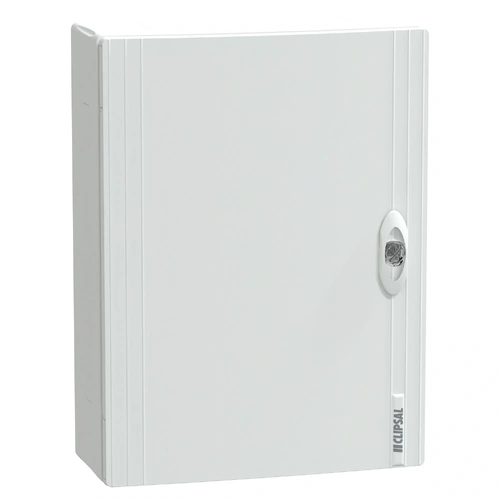

        The Clipsal MX9SB213S is a MAX9 surface-mount switchboard enclosure with 26 module poles across 2 rows, rated IP40 for indoor distribution. It takes MAX9 devices and MAXBAR busbar systems, suiting compact residential and light-commercial boards. The MX9SB213S fixes flat onto the wall face and ships with a reversible door that hinges from either side.

        A smaller home, unit, or granny flat rarely needs a full multi-row board, but a standard domestic circuit list still has to land somewhere tidy. Where there is no wall cavity to recess into, the board has to sit on the surface. The MX9SB213S sets 26 poles across 2 rows onto the wall face, giving a compact board with no cavity to cut.

        For a smaller switchboard upgrade or a solid-wall install, the MX9SB213S carries a right-sized circuit list in a board that fixes straight onto brick, block, or a finished wall. The 26-pole, 2-row layout runs 13 modules to a row, keeping the enclosure small and neat. A reversible door lets the installer set the hinge to suit the wall, and the surface fixing means no cavity work on site.

        Features

        • 26-pole capacity — 2 rows of 13 18mm modules suit a compact distribution board.
        • Surface mount — the MX9SB213S fixes flat onto the wall face, so there is no wall cavity to cut.
        • MAX9 compatible — takes MAX9 MCBs, RCBOs, and MAXBAR busbar systems for a keyed, tidy assembly.
        • Reversible door — the door hinges from either side, so the MX9SB213S fits left or right-hand wall positions.
        • Two-row layout — 13 modules per row keep the enclosure small and neat on the wall.
        • Expansion headroom — spare ways in the 26-pole frame leave room to add a circuit without a bigger board.
        • White plastic body — moulded RAL 9003 white enclosure and trim give a clean face on the wall.
        • MAX9 ready — suits a standard domestic circuit list with room for a solar or EV circuit.
        • IP40 rating — protected against small solid objects, suited to dry indoor and protected locations.
        • Indoor use only — IP40 gives no rain or splash protection, so the MX9SB213S is not for outdoor or damp positions.
        • Solid-wall friendly — surface fixing suits brick, block, and finished walls where there is no cavity to recess into.

        Where to use

        • Solid-wall switchboards — the MX9SB213S fixes onto brick or block where a flush board cannot recess.
        • Units and granny flats — a compact board sized for a smaller domestic circuit list.
        • Renovation re-boards — replaces an older, undersized board on a smaller upgrade.
        • New builds — sized for smaller homes needing a neat surface-fixed board.
        • Garages and plant rooms — surface mounting suits utility spaces where a cavity fit is not practical.
        • Sub-boards — the MX9SB213S works as a compact sub-board off a main switchboard.

        The MX9SB213S is rated IP40 and is an indoor enclosure only. It gives no protection against rain, splash, or damp, so it should not be mounted outdoors or in wet areas. It is a surface-mount box that fixes onto the wall face, not a flush or recessed enclosure. Fitting must be carried out by a licensed electrician.

        (MX9SB213S)

        They are used to house circuit breakers and protect electrical circuits in residential and commercial installs.

        It depends on how many circuits you have. Smaller jobs suit 13–24 pole, while larger installs may need 36–72 pole boards.

        It refers to the number of breaker spaces available inside the board.

        The board is mounted directly onto the wall instead of recessed into it.

        They are designed for indoor use or protected locations only.

        Yes. Sparky Direct stocks a range of Clipsal MAX9 surface mount boards with fast dispatch across Australia.

        100-Day Fuss-Free Returns
        We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

        • Items must be unused, with all parts, accessories, and original packaging.
        • We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
        • Proof of purchase is required.
        • Return shipping is the responsibility of the customer.

        If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.

        All products come with a manufacturer’s or supplier’s warranty

        • Warranty starts from the Invoice Date
        • Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
        • Sparky Direct isn’t responsible for losses caused by product failure.
        • Warranties are void if products aren’t installed by a licensed electrician.

        Damaged or Faulty Goods
        If your order arrives damaged or is faulty, let us know within 24 hours.

        • Sparky Direct will pay for return shipping via an emailed return label.
        • If the fault is confirmed, we will send you a replacement item or provide a refund.

        Contact us via our chat to arrange the return.

        Exclusions
        We can’t accept returns for:

        • Items that have been installed, modified, or used
        • Clearance, End of life, Discontinued, or special order items (unless faulty)
        • All PPE Items
        • Goods returned without original packaging or proof of purchase

        How to Request a Return

        1. Contact our customer service team with your order number.
        2. Confirm it’s eligible under our return or warranty policy.
        3. Pack the item securely and return it using a trackable service.
        4. Once we receive and inspect it, we’ll process your refund or replacement.

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Clipsal in home warranty

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU MX9SB213S
        Model # MX9SB213S
        Package Weight 3.465kg
        View Datasheet
        View Brochure
        View Manual
        TYPE VALUE
        Type Switchboard
        Brand Clipsal by Schneider Electric
        Range MAX9
        Colour White
        Number of Poles 26
        IP Rating IP40
        Number of Rows 2
        Mounting Type Surface
