        Clipsal MX9A3220 | 20A MAX9 AFDD all-in-one 1PN C | 30mA Type A
        $187.00 $170.00 ex. GST
        Video

        How Arc Fault Fires Start AFDD

        Very localised phenomena can cause an electrical fire.

        Check out this video to see how a loose wire in a standard multi-socket can arc and start a fire.

        Additional related video.

        Description

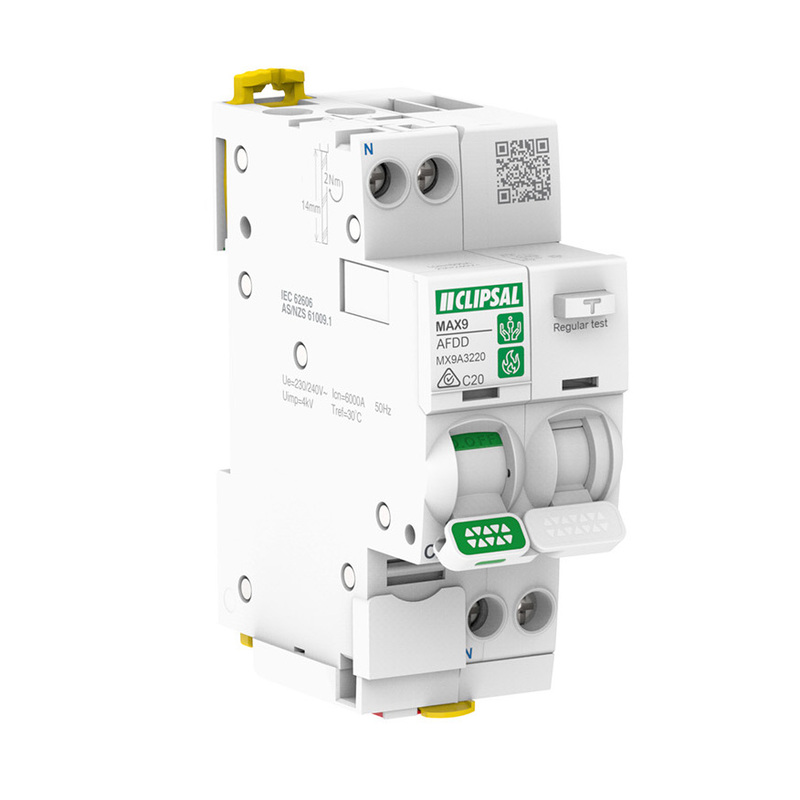

        Clipsal MX9A3220 | 20A MAX9 AFDD all-in-one 1PN C | 30mA Type A

        Keep your family and property protected

        In just seconds, undetected arc faults can break out into an electrical fire. Broken wires, loose connections, crushed cables and worn insulation can all cause hidden arc faults in electrical circuits. Arc Fault Detection Device’s (AFDD’s), also known as Arc Fault Circuit Interrupter, can help to isolate the faulty circuit as soon as the Arc fault is detected.
        Arc faults can be difficult to see. They usually occur in hidden places, such as damaged cables, inside walls or a loose connection in a hidden junction box, or outlet sockets.
        Arc Faults are one of the main causes of electrical fires. These fires are surprisingly common in older buildings.

        What is an Arc Fault Detection Device?

        The Clipsal MX9A3220 AFDD is a circuit breaker that automatically cuts the electricity supply when it detects an arc fault in a circuit. By cutting the electricity supply, AFDD’s help prevents arc faults from reaching temperatures where electrical fires can break out.

        This MAX9 product is an arc fault detection RCBO.
        MX9A3220 is a 1P+N circuit breaker with 1 protected pole, 20A In rated current at 30øC and C tripping curve.

        Features:

        • The operating frequency is 50Hz.
        • The earth leakage protection class is type A with a sensitivity of 30mA.
        • The earth-leakage protection time delay is instantaneous.
        • The Icn rated short circuit breaking capacity goes up to 6000A at 240VAC conforming to IEC 61009 standard.
        • This MAX9 circuit breaker is compatible with TN-S, TT and IT earthing systems.
        • It has an electrical endurance going up to 10000 cycles and mechanical endurance going up to 20000 cycles.
        • It detects arc fault that comes from fire start and is constantly analyzing electric settings.
        • It isolates the involved circuit automatically before the first flame appearance.
        • It is particularly adapted for circuit protection where the fire started is the most important in domestic installation (outdoors, rooms).
        • It has an RCM quality label.
        • The Ue rated operational voltage is 240VAC.
        • The Ui rated insulation voltage is 440VAC.
        • It has a Uimp rated impulse withstand voltage of 4kV.
        • It can be mounted on DIN rail for modular installation.
        • The width in 9mm pitches is 4.
        • The dimensions are (W) 36mm x (H) 91mm x (D) 75mm.
        • The product colour is white (RAL9003).
        • The product weight is 237g.
        • According to IEC 60529 standard, the degree of protection is IP20.
        • The pollution degree is 2.
        • The operating temperature is from -25øC to +70øC.
        • The storage temperature is from -40øC to +85øC.
        • This product complies with EN/IEC 62606 standard.

        (MX9A3220)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 7 Year
        Commercial Use: 7 Year
        Warranty Method: Clipsal in home warranty

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU MX9A3220
        Barcode # 9311554813437
        Shipping Weight 0.2360kg
        Shipping Width 0.044m
        Shipping Height 0.084m
        Shipping Length 0.102m
        Shipping Cubic 0.000377000m3
        TYPE VALUE
        Type Circuit Protection
        Brand Clipsal by Schneider Electric
        Range Clipsal - Max9
        Rated Current (A) 20A
        Poles 1P+N
        Earth Leakage Sensitivity 30mA
        Voltage (V) 240Vac
        Equivalent Max 4 Reference 4AFRC220
        Curve C-curve
        Breaking Capacity 6kA
        Tripping Standard
        Earth Leakage Protection Class A-type
