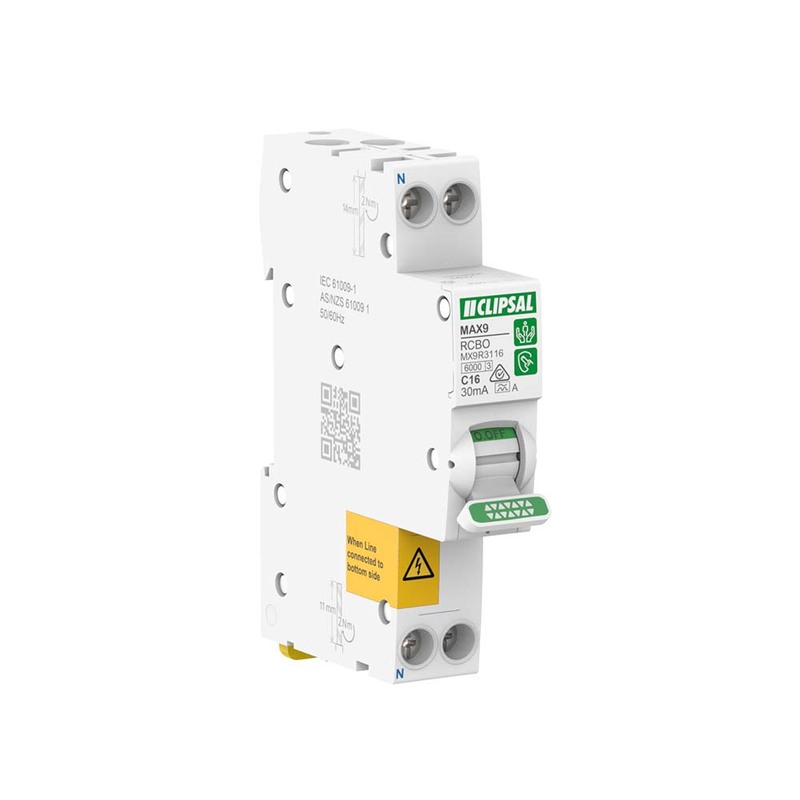

The Clipsal MX9R3116 is a residual current breaker with overcurrent protection (RCBO) rated 16A at 240V AC, with 30mA Type A earth-leakage protection and a C-curve tripping characteristic. The MX9R3116 combines RCD and circuit-breaker functions in a single SLIM-width module (18mm), meeting AS/NZS 61009 compliance for Australian electrical installations. This is the most commonly installed RCBO across residential and commercial switchboards where space is constrained.
A standard switchboard often runs short of space when retrofitting RCD protection to existing circuits. Licensed electricians face a choice between stacking separate MCB and RCD devices side-by-side or consolidating both functions into a single RCBO. The MX9R3116's single 18mm width delivers the protection of two devices in one module, freeing space for additional circuits or future expansion. This is especially valuable on renovation jobs and board upgrades where panel real estate is already claimed by existing protection.
Sparkies on the tools value the MX9R3116 because it wires up quickly with MAX9 busbar systems and cuts installation time significantly compared to cable-fed connections. The SLIM module width is standard across all 16A MAX9 RCBOs, so stock rotation is straightforward and interchangeability is assured. The 6kA breaking capacity handles the full spectrum of domestic and commercial fault conditions, while Type A instantaneous earth-leakage detection protects against both AC and DC fault patterns.
The Clipsal MX9R3116 is not suitable for circuits requiring higher current ratings (20A, 25A, 32A protection) or for applications with very high inrush currents such as large motor starts or heavy welding loads. It is designed for general-purpose and lighting circuits only, not for dedicated cooker or oven circuits (which may require B or D curve characteristics).
Verified Sparky Direct customer reviews: Clipsal MX9R3116 | 16A MAX9 RCBO 1PN C | 30mA Type A SLIM (MX9R3116)
"Excellent value. Quick delivery" — Darren
"Well priced and easy to install." — Michael
"These are so easy to install with the Max9 busbar." — Trevor
(MX9R3116)
A standard circuit breaker (MCB) protects only against overload and short-circuit faults. An RCBO combines that protection with RCD (residual current protection), which detects dangerous leakage currents caused by faults to earth. The MX9R3116 provides both functions in a single 18mm module, which is why it saves switchboard space compared to installing separate MCB and RCD devices.
Yes, the MX9R3116 is fully compatible with Clipsal MAX9 busbar systems. Connection via busbar eliminates the need for individual cable connections and can cut installation time significantly compared to terminal-by-terminal wiring, which is why it has become the most commonly installed RCBO in Australian switchboards.
Yes, the MX9R3116 is suitable for 16A lighting circuits in residential and commercial buildings. The C-curve characteristic tolerates brief inrush current from standard incandescent and LED loads without nuisance trips. For very high inrush loads (large motor starts, heavy-duty industrial machinery), a B or D curve breaker is more appropriate.
Type A means the MX9R3116 detects both AC and DC residual currents (leakage) and isolates the circuit within 30 milliseconds of detecting 30mA leakage. "Instantaneous" means there is no intentional delay. This combination protects against direct earth-fault contact and is required by modern Australian electrical safety standards for general circuits.
The Clipsal MX9R3116 comes with a 7-year domestic and commercial warranty from the manufacturer. Warranty covers manufacturing defects; it does not apply to damage from incorrect installation, misuse, or operation outside the rated specification. Installation must be completed by a licensed electrician in accordance with the relevant Australian electrical standards and the installer's manual.
No, the MX9R3116 is rated for general-purpose circuits only and should not be used on dedicated cooker or large oven circuits. These circuits typically require higher current ratings (20A–32A) and may benefit from B-curve or D-curve protection to allow for the momentary inrush current of heating elements. Consult the switchboard designer or a licensed electrician to select the correct breaker for high-demand applications.
The Clipsal MX9R3116 is available online from Sparky Direct, with Australia-wide delivery to any state or territory including regional areas. Sparky Direct is an Australian electrical wholesaler established in 2005, supplying more than 500,000 customers with transparent trade pricing.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 7 Year
Commercial Use: 7 Year
Warranty Method: Clipsal in home warranty
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Clipsal by Schneider Electric |
| SKU | MX9R3116 |
| Model # | MX9R3116 |
| Barcode # | 9311554812690 |
| Package Weight | 0.135kg |
| TYPE | VALUE |
|---|---|
| Type | Circuit Protection |
| Brand | Clipsal by Schneider Electric |
| Range | Clipsal - Max9 |
| Rated Current (A) | 16A |
| Height (mm) | 93 |
| Width (mm) | 18 |
| Depth (mm) | 73 |
| Mounting | Flush |
| Equivalent Hager Reference | ADC916T |
| Voltage (V) | 240Vac |
| Equivalent Max 4 Reference | 4RCBE216/30S |
| Tripping | Standard |
| Poles | 1P+N |
| Curve | C-curve |
| Earth Leakage Protection Class | A-type |
| Earth Leakage Sensitivity | 30mA |
| Breaking Capacity | 6kA |
| IP Rating | IP20 |
| Number of Poles | 1 |
