        Clipsal MX9R3216S | 16A MAX9 RCBO 1PN C | 30mA Type A-SI
        $131.94 $119.95 ex. GST

        Ultimate Efficiency and Professional Finish

        • MAX9 takes the definition of a busbar to next level with MAXBAR. MAXBAR helps to improve installation speed by up to 15 times when compared to using cables for feeding RCBOs
        • With MAXBAR, no cable connections are needed to feed final sub-circuits protected by an RCBO or AFDD - it picks up the active feed from the main switch and distributes both active & neutral across all types of Clipsal  RCBOs and AFDDs

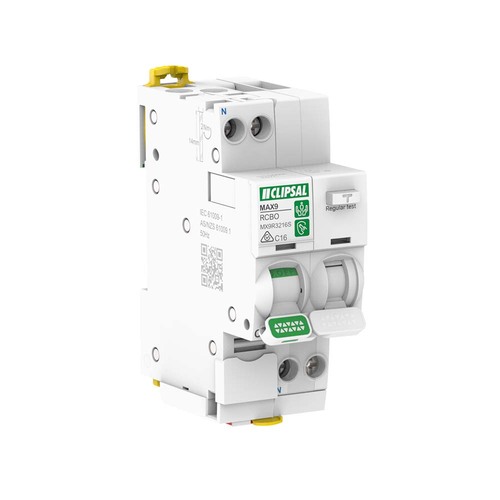

        Clipsal MX9R3216S | 16A MAX9 RCBO 1PN C | 30mA Type A-SI

        The Max9 Clipsal MX9R3216S product is a residual current breaker with overcurrent protection (RCBO).
        The MX9R3216S is a 1P+N circuit breaker with 1 protected pole, 16A In rated current at 30øC and C tripping curve.

        MCB/RCD Combinations – 2 module Type A-SI RCBO

        Clipsal switchboard mounted combination MCBs and RCDs fall into two main categories - electro-mechanical and electronic.

        The electro-mechanical devices derive their ‘action energy’ from actual leakage (residual) current.
        They work on an electromagnetic principle. A toroidal transformer is used to detect the magnetic fields created by current flowing in the Active and Neutral wires of the protected circuit, which pass through the RCD.
        Taking into account the magnitude and direction of these currents, under normal circuit conditions the vector sum of the currents (known as the residual current) is effectively zero and the magnetic fields cancel.
        Should the condition occur where a current flows from an Active or Neutral wire to Earth, the residual current will not be zero and the magnetic field will establish a tripping signal to disconnect the protected circuit. These devices are not voltage dependant.

        Features and benefits:

        • Separate RCD trip flag for easy trip diagnosis
        • The same base module as the MCBs. Uniformity in space requirements and installation.
        • Top and bottom line and load compatible for ease of installation
        • Green strip on the toggle that indicates the opening of all the poles
        • Top and bottom clip allowing dismounting with comb busbar in place
        • Busbar compatible through an insulated slot


        • Super Immune - A-SI Type
        • High dependency installation.


        • The operating frequency is 50Hz.
        • The earth leakage protection class is type A-SI (Super Immunised) with a sensitivity of 30mA.
        • The earth-leakage protection time delay is instantaneous.
        • The Icn rated short circuit breaking capacity is up to 6000A at 240VAC.
        • It has an electrical endurance going up to 10000 cycles and mechanical endurance going up to 20000 cycles.
        • This product protects against short circuits, cable overload, electrical shock by indirect contact and fire hazards.
        • It brings safe, reliable solutions for commercial and industrial applications with high breaking capacity.
        • It has an RCM quality label.
        • The Ue rated operational voltage is 240VAC.
        • The Ui rated insulation voltage is 440VAC.
        • It has a Uimp rated impulse withstand voltage of 4kV.
        • It can be mounted on a DIN rail for modular installation.
        • The width in 9mm pitches is 4.
        • The dimensions are (W) 36mm x (H) 91mm x (D) 75mm.
        • The product colour is white (RAL9003).
        • The product weight is 268g.
        • According to IEC 60529 standard, the degree of protection is IP20.
        • The pollution degree is 2.
        • The operating temperature is from -25øC to +70øC.
        • The storage temperature is from -40øC to +85øC.
        • This product complies with IEC 61009-2-1 and EN/IEC 61009-1 standards.



        Warranty starts from Invoice Date

        Domestic Use: 7 Year
        Commercial Use: 7 Year
        Warranty Method: Clipsal in home warranty


        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU MX9R3216S
        Barcode # 9311554813116
        Shipping Weight 0.2240kg
        Shipping Width 0.044m
        Shipping Height 0.080m
        Shipping Length 0.102m
        Shipping Cubic 0.000359000m3
        TYPE VALUE
        Type Circuit Protection
        Brand Clipsal by Schneider Electric
        Range Clipsal - Max9
        Rated Current (A) 16A
        Poles 1P+N
        Earth Leakage Sensitivity 30mA
        Voltage (V) 240Vac
        Equivalent Max 4 Reference 4RCBM216SI30
        Curve C-curve
        Breaking Capacity 6kA
        Tripping Standard
        Earth Leakage Protection Class A-SI type
