        EVH5A07N2C7 | 7.4kW Schneider Charge | 7 Meter Cable | 1P+N 32A | Home Charging Station
        $1,408.00 $1,280.00 ex. GST
        Video

        Learn more by watching our EVH5A07N2C7 | 7.4kW Schneider Charge | 7 Meter Cable | 1P+N 32A | Home Charging Station video.

        Description

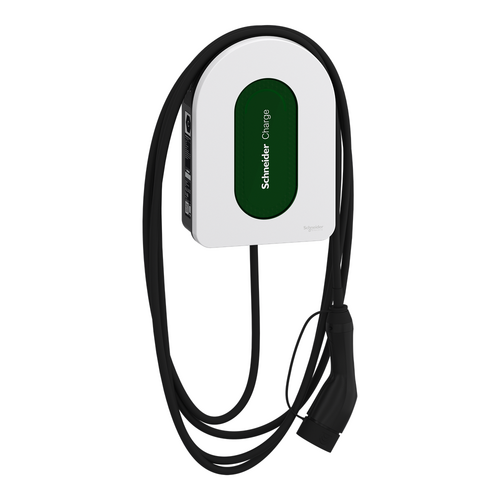

        EVH5A07N2C7 | 7.4kW Schneider Charge | 7 Meter Cable | 1P+N 32A | Home Charging Station

        The EVH5A07N2C7 is a powerful and reliable Home Charging Station designed for your convenience. With this station, you can charge your electric vehicle at home without worrying about power availability being affected.

        Schneider Charge allows a convenient vehicle charge at home without impacting power availability. This charging station is straightforward to install, protecting your car and you while ensuring the correct charge in a residential setting. It is a simple and easy-to-install charger that provides the correct charge for your EV, minimizing any peak impact and avoiding power overruns or associated costs at an affordable price.

        The output type is a 7m attached cable with a T2 socket outlet at the end.

        The EVH5A07N2C7 is a wall box charging station compatible with a home anti-tripping system (peak controller EVA2HPC1 ). The charging station can benefit from dynamic energy management by complementing it with an anti-tripping system that adjusts the maximum power allocated to the charging electric vehicle in real-time according to the consumption of other loads in the house.

        It delivers 7.4KW power, a 7m attached cable, a T2 socket outlet, and a 32A charging capacity. The station is designed for 1 phase connection.

        The Charging Station is compact and space-saving. With a height of 352mm, a width of 244mm, and a depth of 117mm, it can easily fit in any corner of your garage or wall on your driveway.

        The charging station features IP55 protection, which is dust—and splash-proof. This makes it perfect for outdoor installation. You can confidently install it outside your home, knowing it will withstand the elements.

        It is easy to install and recommended for private use at home.

        (EVH5A07N2C7)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU EVH5A07N2C7
        Barcode # 3606486961131
        Shipping Weight 4.5000kg
        Shipping Width 0.282m
        Shipping Height 0.409m
        Shipping Length 0.148m
        Shipping Cubic 0.017070024m3
        TYPE VALUE
        Type Charging Station
        Brand Schneider Electric
        Range Schneider Charge
        Height (mm) 352
        Width (mm) 244
        Depth (mm) 117
        Weight (kg) 4.5
        Number of Sockets 1
        Communication network type Wi-Fi | Wireless | Ethernet
        Communication port protocol OCPP 1.6, for connection to the Schneider Electric Wiser app
        Mounting Mode Wall mounted
        Pole description 1P+N
        Nominal Output Power 7.4 kW 32A 230V
        Maximum supply current 32 A
        Connection to the vehicle Attached cable T2 bottom 7 m
