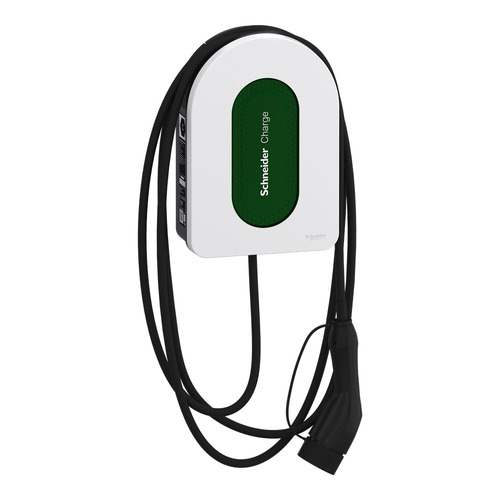

The Schneider Electric EVH5A11N2C5 is an 11kW wall-mounted electric vehicle charging station from the Schneider Charge range, configured 3P+N at 400V AC. It delivers up to 16A per phase through a 5-metre attached cable terminating in a Type 2 vehicle connector. The EVH5A11N2C5 is rated IP55 and IK10, with earth-leakage protection built into the station. Schneider lists it to EN 61851 and IEC 61851-1.
An 11kW charger operates alongside the oven, the air conditioning, and every other load on the same service. Without management, a full-rate charging session can drive the installation beyond the main switch rating on a winter evening. The EVH5A11N2C5 incorporates a dry contact input for dynamic energy management, allowing the charge rate to be moderated against household demand in real time. Combined with a peak controller, the charger continues operating rather than tripping the mains.
For an installer quoting electric vehicle work, the 3P+N configuration at 16A maintains modest per-phase current while still delivering 11kW at the vehicle. The attached 5-metre Type 2 cable eliminates the lead as a separate purchase and a separate point of failure. Commissioning proceeds over Wi-Fi or Ethernet, with OCPP 1.6 providing connection to the Schneider Electric Wiser application. IP55 and IK10 accommodate a carport or an exposed garage wall.
Features
- 11kW at 16A, 3P+N — the EVH5A11N2C5 delivers a maximum 11kW drawn at 16A per phase on a three-phase plus neutral supply.
- 400V AC supply — rated supply voltage of 400V AC at 50 to 60Hz, plus or minus 10 percent.
- Attached 5-metre Type 2 cable — the cable is fixed to the station, exits from the bottom, and terminates in a T2 vehicle connector.
- Single charge point — one charge point per station, for one vehicle at a time.
- IP55 and IK10 rated — IP55 to EN/IEC 60529 against dust and water jets, with IK10 mechanical impact resistance.
- Earth-leakage protection — protection type is listed as earth-leakage protection within the station.
- Dry contact input — one input, a dry contact for dynamic energy management driven by an external controller.
- Wi-Fi and Ethernet — communication over Wi-Fi, wireless, or Ethernet, using OCPP 1.6 for the Schneider Electric Wiser app.
- Single status LED — one LED signalling status in red, green, and blue.
- Wall-mounted, 352 x 244 x 117mm — wall-mounted at 352mm high, 244mm wide, and 117mm deep, with a net weight of 4.4kg.
- Wide ambient range — rated for operation from minus 30 to plus 55 degrees Celsius, 5 to 95 percent relative humidity, up to 2000 metres altitude.
- Captive Type 2 cable only — the EVH5A11N2C5 has no socket outlet, so the station cannot be used with a different vehicle connector.
Where to use
- Domestic garages and carports — the EVH5A11N2C5 wall mounts within cable reach of the parked vehicle.
- Exposed external walls — IP55 and IK10 suit a driveway wall or an open-sided structure.
- Three-phase homes — dwellings already carrying a three-phase service, where 11kW is available without a supply upgrade.
- New builds with EV provision — first-fix installations where the submain and charger position are set during construction.
- Installations with load management — systems pairing the charger with a peak controller through the dry contact input.
- Retrofit to an existing three-phase board — the EVH5A11N2C5 lands on a dedicated submain from an existing three-phase switchboard.
The EVH5A11N2C5 is not configured for a single-phase service and requires a three-phase 400V supply. Schneider lists the earthing systems as IT 230, TT, and TN-S, so confirm suitability against the local MEN arrangement before quoting. Installation and connection are work for a licensed electrician, and the datasheet cites EN 61851 and IEC 61851-1 rather than an Australian standard.
