    Learn more by watching our HAGER NDN316A | 16 Amp Three Pole 10kA Circuit Breaker | D Curve video.

    Description

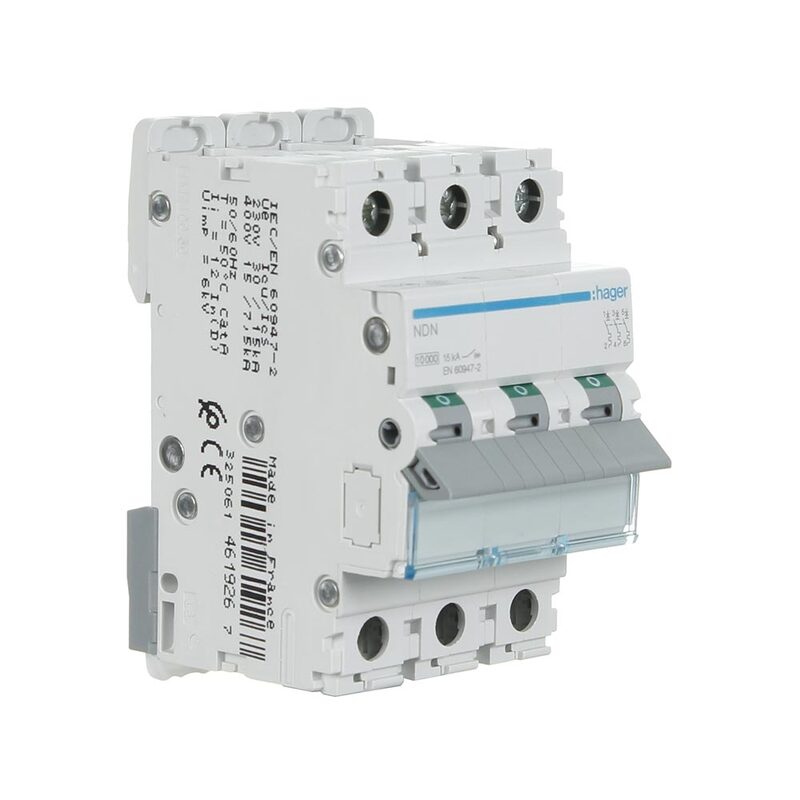

    HAGER NDN316A | 16 Amp Three Pole 10kA Circuit Breaker | D Curve

    The Hager NDN316A is a D Curve three pole circuit breaker which protects and control circuits against overloads and short-circuits. The NDN316A circuit breaker is rated at 10kA and is suitable for commercial and Industrial applications.

    Features:

    • 16 Amp
    • 3 Pole
    • 10kA
    • Curve D
    • Rated short circuit breaking capacity 10 kA
    • Rated insulation voltage: 500 V
    • Operating temperature: -25 to 70 °C
    • Electric endurance in number of cycles: 4000
    • Number of mechanical operations: 20000
    • Height of installed product: 83 mm
    • Width of installed product: 52.5 mm
    • Depth of installed product: 70 mm

    (NDN316A)

    Warranty

    Warranty starts from Invoice Date

    Domestic Use: 2 Year
    Commercial Use: 2 Year
    Warranty Method: Return to Sparky Direct

    Specifications

    These specifications and characteristics outline physical, mechanical, electrical details.

    Brand Hager Electrical
    SKU NDN316A
    Barcode # 3250614619243
    Package Width 0.080m
    Package Height 0.050m
    Package Length 0.070m
    TYPE VALUE
    Type Circuit Protection
    Brand Hager Electrical
    Rated Current (A) 16
    Height (mm) 83
    Width (mm) 52.5
    Depth (mm) 70
    Standards AS/NZS 60898
    Mounting Din Rail
    Voltage (V) 500
    Number of Poles 3
    IP Rating IP20 ( IP40 Enclosed )
    Breaking Capacity 10kA
    Curve D
