    Description

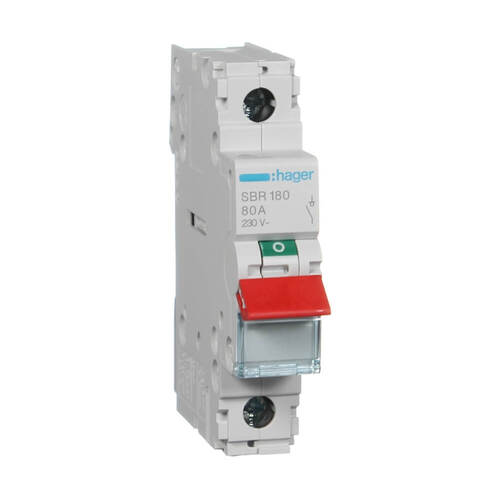

    HAGER SBR180 | Main switch single pole 80 amp

    The Hager SBR180 is a main switch with a red toggle. The SBR180 is rated at 80 amps and is designed to isolate a load. Great for inductive and resistive loads. The Hager SBR180 mounts on to din rail. Strong and durable will provide 40000 mechanical operations

    Features:

    • Main Switch
    • Single Pole
    • 80 Amp
    • Red Toggle
    • Din Rail Mount
    • Depth 68mm
    • Height 83mm
    • Width 17.5mm
    • Install Rigid cables from 6mm² - 50mm²
    • Install Flexible conductors 6mm² - 35mm²

    (SBR180)

    Warranty

    Warranty starts from Invoice Date

    Domestic Use: 2 Year
    Commercial Use: 2 Year
    Warranty Method: Return to Sparky Direct

    Specifications

    These specifications and characteristics outline physical, mechanical, electrical details.

    Brand Hager Electrical
    SKU SBR180
    Barcode # 3250615510426
    Package Weight 0.091kg
    Package Width 0.080m
    Package Height 0.016m
    Package Length 0.095m
    TYPE VALUE
    Type Circuit Protection
    Brand Hager Electrical
    Rated Current (A) 80
    Height (mm) 83
    Width (mm) 17.5
    Depth (mm) 68
    Standards IEC/EN 60947-3
    Mounting Din Rail
    Voltage (V) 240
    Number of Poles 1
    IP Rating IP20 ( IP40 Enclosed )
    Box increments (This item is sold individually) 12
    Curve C
    Total Number of modules 1
