        HAGER SBR280 | Main switch double pole 80 amp
        $72.55 $65.95 ex. GST
        Video

        Learn more by watching our HAGER SBR280 | Main switch double pole 80 amp video.

        Description

        HAGER SBR280 | Main switch double pole 80 amp

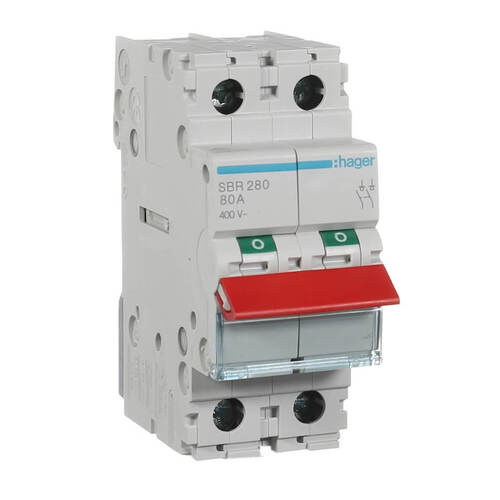

        The Hager SBR280 is a main switch with a red toggle. The SBR280 is rated at 80 amps and is designed to isolate a load. Great for inductive and resistive loads. The Hager SBR280 mounts on to din rail. Strong and durable will provide 40000 mechanical operations

        Features:

        • Main Switch
        • 2 Pole
        • 80 Amp
        • Red Toggle
        • Din Rail Mount
        • Depth 68mm
        • Height 83mm
        • Width 35mm
        • Install Rigid cables from 6mm² - 50mm²
        • Install Flexible conductors 6mm² - 35mm²

        (SBR280)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 2 Year
        Commercial Use: 2 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Hager Electrical
        SKU SBR280
        Barcode # 3250615510433
        Shipping Weight 0.1710kg
        Shipping Width 0.081m
        Shipping Height 0.040m
        Shipping Length 0.095m
        Shipping Cubic 0.000308000m3
        TYPE VALUE
        Type Circuit Protection
        Brand Hager Electrical
        Rated Current (A) 80
        Height (mm) 83
        Width (mm) 35
        Depth (mm) 68
        Standards IEC/EN 60947-3
        Mounting Din Rail
        Curve C
        Number of Poles 2
        Voltage (V) 400
        Box increments (This item is sold individually) 1
        Total Number of modules 2
        IP Rating IP20 ( IP40 Enclosed )
