National Light Sources | IP66 Lockable Steel Cabinet 200 x 200 x 150mm | RAL7035 Light Grey

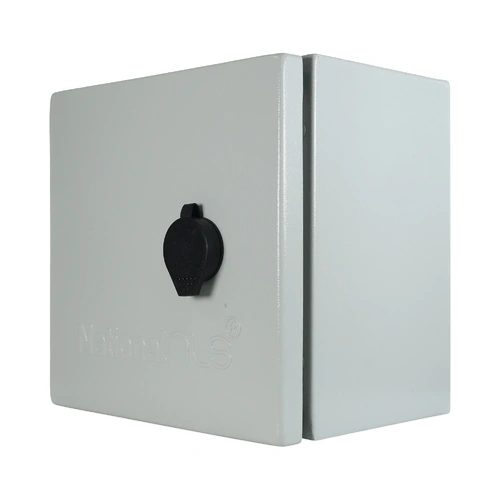

The NLS 30911 is an IP66 lockable steel enclosure measuring 200 x 200 x 150mm, manufactured from 1.2mm cold rolled steel in a RAL7035 light grey finish. The 30911 is the smallest cabinet in the NLS steel enclosure range, rated 240V single phase and 450V three phase at 50/60Hz. It ships with a mounting plate, ground cable, installation brackets, and an MS705 cam lock.
Small terminations positioned outdoors present the same weather exposure and interference risks as a full switchboard, without justifying switchboard-sized real estate. A 200 x 200 x 150mm footprint accommodates an isolator, a terminal block, or a controller. IP66 protection and a PU foam sealing strip deliver the identical ingress rating carried by the larger cabinets in the range.
Steel construction justifies its additional cost precisely where a polycarbonate enclosure would be levered open or fractured. The 1.2mm cold rolled steel body resists impact and deliberate interference, the MS705 cam lock restricts access to key holders, and a 1.2mm mounting plate is supplied internally, eliminating a separate backing panel purchase.
Features
- IP66 protection — dust tight, and protected against powerful water jets from any direction.
- PU foam sealing strip — the door seal that delivers the IP66 rating around the full perimeter.
- 200 x 200 x 150mm — the smallest cabinet in the NLS steel enclosure range, at 200mm high, 200mm wide, and 150mm deep.
- 1.2mm cold rolled steel body — high strength cold rolled steel, with the mounting plate also at 1.2mm.
- RAL7035 light grey finish — the standard light grey used across industrial switchgear and enclosures.
- MS705 cam lock — a keyed cam lock with lock plug supplied, restricting access to key holders.
- Mounting plate included — a 1.2mm plate ships inside for mounting devices, in galvanised zinc or painted finish.
- Grounding and bonding provision — a ground cable is supplied for earthing the door and body.
- Rated 240V and 450V — 240V single phase or 450V three phase at 50/60Hz, for low-voltage distribution and circuit protection.
- Approved to AS/NZS — the manufacturer states AS/NZS approval and RoHS compliance across the range.
- Vandal resistant and fire retardant — both classifications are stated by National Light Sources for this enclosure range.
- Limited internal volume — at 150mm deep this is the shallowest cabinet in the range, so device depth needs checking before specifying.
Where to use
- Isolator and switch housings — the 30911 suits a single isolator or switch mounted outdoors or in a plant area.
- Terminal and junction points — secure weatherproof housing for terminations along a cable run.
- Controller and sensor enclosures — small control devices, timers, and monitoring equipment needing an IP66 housing.
- Wash-down and dusty areas — workshops, processing plant, and sites where equipment is hosed or dust-laden.
- Remote and exposed sites — pump stations, irrigation controls, and outbuildings where the lock deters interference.
- Retrofit into tight positions — the compact footprint fits where a larger cabinet has no clearance.
The 30911 is an empty enclosure: switchgear, DIN rail, glands, and cable entries are specified and fitted separately. Its 150mm depth is the shallowest in the range, so device and terminal depth must be checked before it is specified. IP66 covers water jets, not immersion, and installation must follow manufacturer specification by a licensed electrician.
