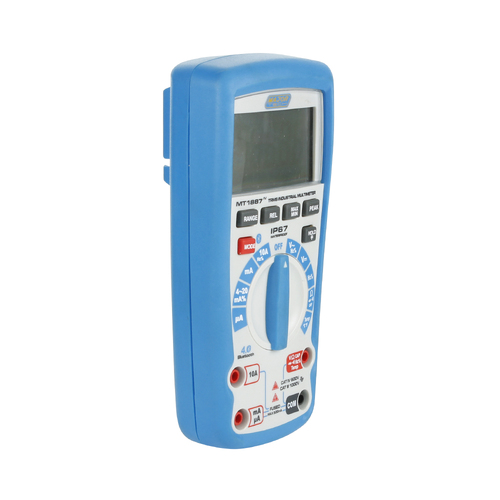

Major Tech MT1887 | 1500V DC IP67 True RMS Bluetooth Multimeter
This video shows Major Tech IP67 multimeters used underwater.
Major Tech multimeters are one of the first to be designed to meet the IP67 rating.
IP67 is the Ingress Protection rating, where,
Major Tech IP67 multimeters can be used immediately, accurately and safely in highly humid conditions, and yes, you can turn the switch.
(Model shown may not be the same as the product on this page)
Additional related video.
Description:
The MT1887 is a True RMS professional multimeter having improved measurement functions, troubleshooting feature, resolution and accuracy to solve problems on power distribution, motor drives, electromechanical equipment and plant automation with the 4-20mA% loop measurements. The meter has a large 40 000 count backlit LCD with the added advantage of a 41 segment analogue bargraph. NCV function, automatic Non-Contact voltage detection, the LCD backlight will be in red when AC voltage above 110V is sensed. Specially designed for the Solar Industry the DC voltage range measures up to 1500V DC, other measuring ranges include ACV to 1000V, Micro Amps and Amps, Frequency, Resistance, Duty Cycle, capacitance and temperature measurements. The Bluetooth function allows the user to transmit data to the Android or iOS mobile App for viewing, organising and sharing recordings. The meter has a double moulded rubber case with IP67 waterproof and dustproof rating, rugged design for heavy duty use.
Features:
(MT1887)
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
| Function | Range | Resolution | Accuracy |
| DC Voltage | 400mV – 1500V | 1V | ±(0.1% + 6 Digits) |
| AC Voltage | 4V – 1000V | 0.1V | ±(1.0% + 8 Digits) |
| DC Current | 400uA – 10A | 0.001A | ±(1.0% + 3 Digits) |
| AC Current | 400uA – 10A | 0.01A | ±(1.5% + 8 Digits) |
| Resistance | 400Ω – 40MΩ | 0.01MΩ | ±(0.5% + 8 Digits) |
| Capacitance | 40nF – 40mF | 0.01mF | ±(2.5% + 10 Digits) |
| Temperature | -50°C – 1000°C | 1°C | ±(1.0% + 2.5°C Digits) |
| 4-20mA% | 25 to 15% | 0.01% | ±50 digits |
| Frequency (Electronic) | 40Hz – 100MHz | 0.01MHz | ±(0.1% + 1 Digits) |
| Frequency (Electrical) | 40 ~ 400Hz | 0.01Hz | ±(0.5% reading) |
| Duty Cycle | 5% – 95% | 0.01% | ±(1.2% + 2 Digits) |
| AC Response | True RMS | ||
| Digital Display | 40 000 Count | ||
| Bargraph | 41 Segmented | ||
| Continuity Test | Audible signal if the resistance is approx. 50Ω or less | ||
| Diode Test | Test current 0.9mA typical, open circuit voltage 3.2V DC typical | ||
| Peak | >1ms | ||
| Non-Contact Voltage | Detection above 110V AC, LCD display turns red | ||
| Bluetooth | Bluetooth 4.0 Technology | ||
| Data Hold | Yes | ||
| Back Light | Yes | ||
| Enclosure | IP67 Dust & Waterproof Double Moulded | ||
| Battery | 9V | ||
| Dimensions | 187 x 81 x 50mm | ||
| Weight | 342g | ||
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Major Tech |
| SKU | MT1887 |
| Barcode # | 6008229006371 |
| Shipping Weight | 0.3510kg |
| TYPE | VALUE |
|---|---|
| Type | Mulitmeter |
| Brand | Major Tech |
| Battery | 9V |
| Dimensions | 187 x 81 x 50mm |
| Enclosure | IP67 |
