        Description

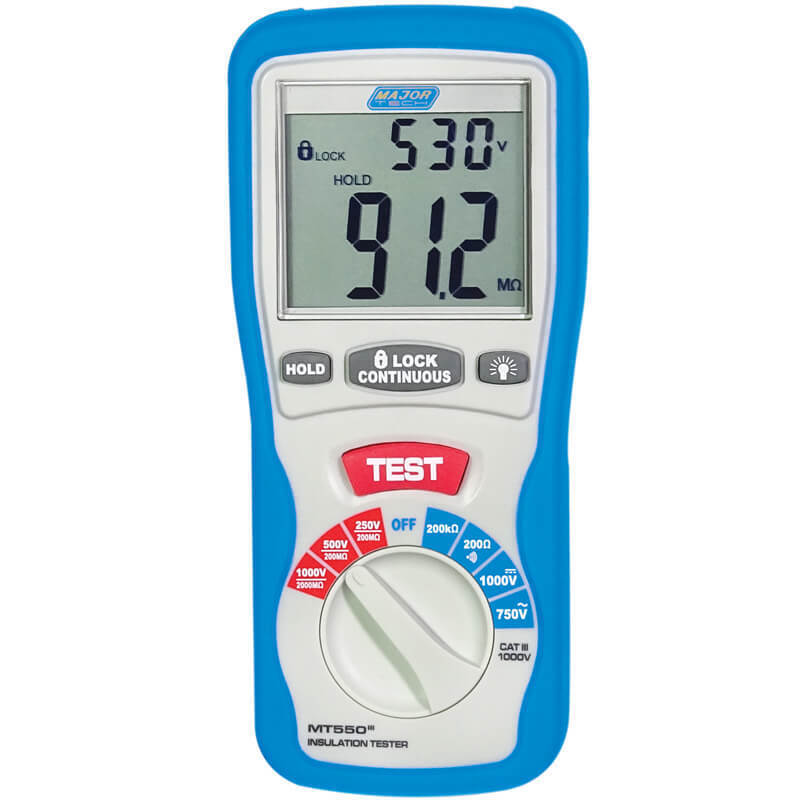

        Major Tech MT550 | 1000V Digital Insulation Tester

        Description:

        The MT550 is an easy-to-use handheld meter and has three test voltage ranges 250V, 500V and 1000V together with two continuity ranges. Whilst doing the insulation test, the large LCD will indicate the insulation resistance together with the actual output voltage. Once the test is complete the circuit under test will be automatically discharged. The MT550 features an AC and DC voltage ranges, battery voltage indication, resistance and a continuity buzzer. If AC voltage is detected, the LCD will display the actual voltage to the
        user except in the off position.

        Features:

        • CAT IV 600V and CAT III 1000V
        • 3 test ranges 250V-500V-1000V
        • 750V AC voltage and 1000V DC voltage ranges
        • Live Circuit warning and buzzer
        • Data Hold function
        • 1mA output current on insulation test
        • 200mA short circuit on continuity range
        • Continuity Buzzer
        • Automatic discharge after test
        • Lock down Test Button for continuous use
        • Hands free strap and magnet supplied as standard accessories
        • Rubber overmould housing
        • Illuminated display

        (MT550)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 2 Year
        Commercial Use: 2 Year
        Warranty Method: Return to Sparky Direct

        All Major Tech Meters sold through Sparky Direct are covered by the manufacturer’s warranty. If you believe your meter is faulty or defective, you may request an assessment under this warranty policy.

        How to Lodge a Warranty Claim

        To initiate a warranty claim:

        1. Return to Sparky Direct
          Ship the meter back to Sparky Direct along with:

          • A copy of your proof of purchase
          • A brief description of the issue
          • Your contact details

          Please ensure the unit is securely packaged to prevent damage in transit.

        2. Forwarded for Assessment
          Upon receiving your meter, we will forward it to Major Tech’s authorised service centre for inspection, testing, and calibration.

        Assessment Process

        Major Tech’s service lab will assess the returned unit to determine:

        • Whether the fault is due to a manufacturer’s defect (covered under warranty), or
        • If the issue is the result of user error or no fault is found.

        Outcomes

        • If approved under warranty: The product will be repaired or replaced at no cost to you.
        • If not covered under warranty: The lab may offer repair services, which will be quoted and billed directly to you by the service provider.

        Important Notes

        As Major Tech’s service labs are independent providers, Sparky Direct cannot govern or guarantee turnaround times or any costs incurred for repairs outside of warranty coverage.

        Please allow up to 7-14 working days for the return of your product.

        Features

        Specifications

        Function Range Resolution Accuracy
        DC voltage 0 – 1000V 1V ±(0.8% +3)
        AC voltage 0 – 750V 1V ±(1.2% +10)
        Resistance 200Ω – 200KΩ 0.1Ω ±( 1.0%+2)
        Insulation resistance 250V 250V 0 – 200MΩ ±(3.0% +5)
        Insulation resistance 500V 500V 0 – 200MΩ ±(3.0% +5)
        Insulation resistance 1000V 1000V 0 – 2000MΩ ±(5.0% +5)
        Short circuit current 1.0mA
        Overrange indication Yes
        AC Bandwidth 40Hz – 400Hz
        Digital Display Dual LCD Display
        Continuity Yes
        Auto discharge Yes
        Input impedance >10MΩ VDC & >10MΩ VAC
        Data Hold Yes
        Back Light Yes
        Enclosure Double moulded
        Low battery indication Yes
        Batteries 6 x AA
        Weight 700g
        Dimensions 200 x 92 x 50mm
        Safety Specs IEC61010-1 CAT IV 600V
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Major Tech
        SKU MT550
        Barcode # 6008229008023
        Package Weight 1.255kg
        Package Width 0.090m
        Package Height 0.260m
        Package Length 0.180m
        TYPE VALUE
        Type Insulation Tester
        Brand Major Tech
        Height (mm) 50
        Width (mm) 92
        Length (mm) 200
