        Major Tech MT500 | 1000V Analogue Insulation Tester
        $280.50 $255.00 ex. GST

        Learn more by watching our Major Tech MT500 | 1000V Analogue Insulation Tester video.

        Additional related video.

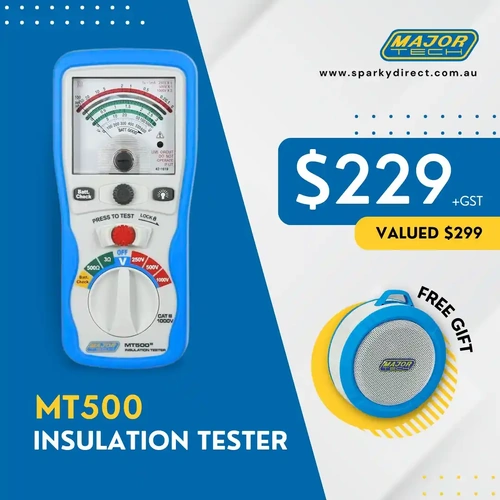

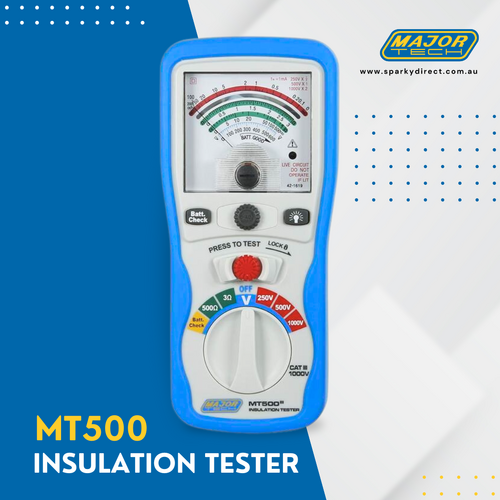

        Major Tech MT500 | 1000V Analogue Insulation Tester


        The MT500 is a rugged, compact and easy to use Insulation and Continuity Tester. The instrument offers three insulation test ranges: 250V, 500V and 1000V, a 3Ω continuity range and a 500Ω resistance range. This meter is not only equipped with a “Live Circuit Warning” but also displays the actual AC voltage measurements of the mains supply. The scale has a backlight which is ideal when working in dimly lit environment.


        • CAT IV 600V and CAT III 1000V
        • 3 test ranges 250V-500V-1000V
        • 600V AC voltage range
        • Live Circuit warning and buzzer
        • Data Hold function
        • 1mA output current on insulation test
        • 200mA short circuit on continuity range
        • Automatic discharge after test
        • Front panel zero adjustment for test lead resistance
        • Lock down Test Button for continuous use
        • Hands free strap and magnet supplied as standard accessories
        • Rubber overmould housing
        • Illuminated display



        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct



        Function Range Resolution Accuracy
        AC voltage 0 – 600V 20V ±(5.0%)
        Resistance 3Ω – 500Ω 0.05Ω ±(3.0%)
        Insulation resistance 250V 250V 0 – 100MΩ ±(5.0%)
        Insulation resistance 500V 500V 0 – 200MΩ ±(5.0%)
        Insulation resistance 1000V 1000V 0 – 400MΩ ±(5.0%)
        Short circuit current 1.3mA
        Overrange indication Yes
        AC Bandwidth 40Hz – 400Hz
        Digital Display Analogue Display
        Continuity Yes
        Auto discharge Yes
        Input impedance  >1.2MΩ VAC
        Data Hold Yes
        Back Light Yes
        Enclosure Double moulded
        Low battery indication Yes
        Batteries 6 x AA
        Weight 700g
        Dimensions 200 x 92 x 50mm
        Safety Specs IEC61010-1 CAT IV 600V

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Major Tech
        SKU MT500
        Barcode # 6008229008030
        Shipping Weight 1.2440kg
        Shipping Width 0.090m
        Shipping Height 0.260m
        Shipping Length 0.180m
        TYPE VALUE
        Type Insulation Tester
        Brand Major Tech
        Analogue or Digital Analogue
        Dimensions 200 x 92 x 50mm
