        Description

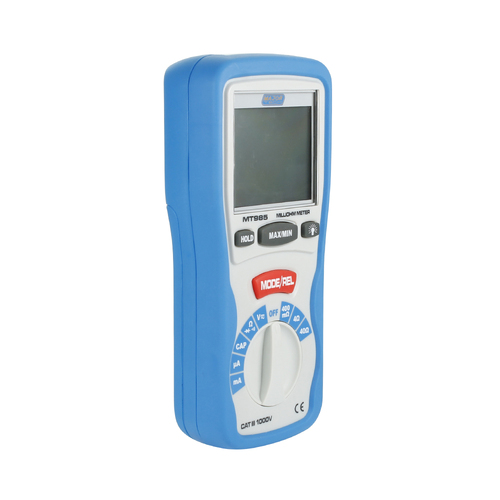

        Major Tech MT985 | Digital Milliohm Meter

        Description:

        The MT985 is a handheld Milliohm/Multimeter combination that measures low resistance from 400mΩ to 40Ω with a resolution of 0.1mΩ and a test current of 200mA. With a two times per second sampling rate, this unit provides fast and accurate measurements on a large high contrast 4000 count LCD Display with a bargraph and back light. The Multimeter function measures AC/DC voltage, AC/DC current, resistance, capacitance, continuity, and includes a diode test offering excellent performance and is ideal for any industry.

        Features:

        • CAT IV 600V and CAT III 1000V
        • 4 Terminal Kelvin measurements
        • High resolution 0.1mΩ
        • Test current of 200mA
        • AC Voltage 750V
        • DC Voltage 1000V
        • AC/DC Current 400mA
        • Capacitance 1pF to 40mF
        • MIN / MAX
        • Relative mode
        • Data Hold
        • Continuity
        • Diode Test
        • 4000 Count LCD
        • Bargraph and backlight
        • Low battery indication
        • Overload protection

        (MT985)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 2 Year
        Commercial Use: 2 Year
        Warranty Method: Return to Sparky Direct

        All Major Tech Meters sold through Sparky Direct are covered by the manufacturer’s warranty. If you believe your meter is faulty or defective, you may request an assessment under this warranty policy.

        How to Lodge a Warranty Claim

        To initiate a warranty claim:

        1. Return to Sparky Direct
          Ship the meter back to Sparky Direct along with:

          • A copy of your proof of purchase
          • A brief description of the issue
          • Your contact details

          Please ensure the unit is securely packaged to prevent damage in transit.

        2. Forwarded for Assessment
          Upon receiving your meter, we will forward it to Major Tech’s authorised service centre for inspection, testing, and calibration.

        Assessment Process

        Major Tech’s service lab will assess the returned unit to determine:

        • Whether the fault is due to a manufacturer’s defect (covered under warranty), or
        • If the issue is the result of user error or no fault is found.

        Outcomes

        • If approved under warranty: The product will be repaired or replaced at no cost to you.
        • If not covered under warranty: The lab may offer repair services, which will be quoted and billed directly to you by the service provider.

        Important Notes

        As Major Tech’s service labs are independent providers, Sparky Direct cannot govern or guarantee turnaround times or any costs incurred for repairs outside of warranty coverage.

        Please allow up to 7-14 working days for the return of your product.

        Features

        Specifications

        Function Range Resolution Accuracy
        Low Resistance 400mΩ – 40Ω 0.1mΩ ±(1% + 10 Digits)
        DC Voltage 400mV – 1000V 0.1mV ±(1% + 5 Digits)
        AC Voltage 400mV – 750V 0.1mV ±(1.2% + 10 Digits)
        DC Current 400μA – 400mA 0.1μA ±(1.0% + 2 Digits)
        AC Current 400μA – 400mA 0.1μA ±(1.5% + 5 Digits)
        Resistance 400Ω – 40MΩ 0.1Ω ±(1.0% + 4 Digits)
        Capacitance 4nF – 40mF 1pF ±(5.0% + 20 Digits)
        Output Current 220mA – 2mA
        Digital Display Large LCD Display
        Continuity Yes
        Diode Test Yes
        Bargraph Yes
        Overrange Indication Yes
        Min Max Yes
        Data Hold Yes
        Back Light Yes
        Enclosure Double moulded case
        Low Battery Indication Yes
        Batteries 6 x AA
        Weight 700g
        Dimensions 200 x 92 x 50mm
        Safety Specs IEC61010-1 CAT III 1000V
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Major Tech
        SKU MT985
        Barcode # 6008229027598
        Package Weight 1.462kg
        Package Width 0.300m
        Package Height 0.080m
        Package Length 0.230m
        TYPE VALUE
        Type Milliohm/Multimeter
        Brand Major Tech
        Dimensions 200 x 92 x 50mm
        Batteries 6 x AA
        DC Voltage 1000V
        AC Voltage 750V
        Test current 200mA
