        Major Tech MTD81 | Compact Auto Ranging Multimeter
        $57.20 $52.00 ex. GST

        Learn more by watching our Major Tech MTD81 | Compact Auto Ranging Multimeter video.

        Additional related video.

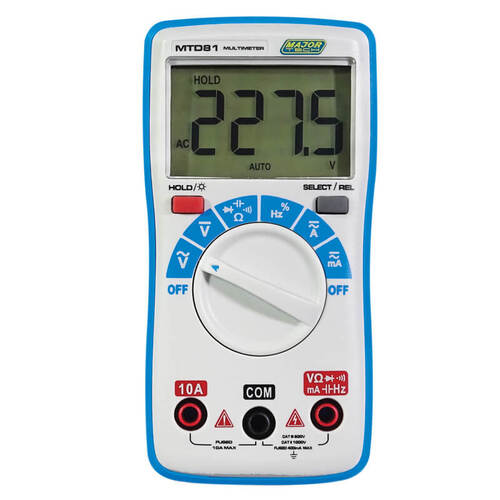

        Major Tech MTD81 | Compact Auto Ranging Multimeter


        The MTD81 is a compact auto-ranging multimeter with a 4000 count LCD backlit display. Measuring functions include AC and DC voltage, AC and DC current, Resistance, Frequency, Capacitance, continuity buzzer and diode test range. This meter meets the International Standard IEC 61010-1 CAT III 600V, and is ideally suited for everyday use by electricians, electronic technicians, students and DIY users. The meter has a built-in tilt stand for hands-free convenience as well as low battery indication and auto power off.


        • CAT III 600V and CAT II 1000V
        • 4000 count with backlit LCD display
        • Measures DC voltage up to 1000V and AC voltage to 750V
        • Measures AC and DC current up to 10A
        • Capacitance to 200μF
        • Frequency to 10MHz
        • Duty Cycle
        • Continuity buzzer and Diode Test
        • REL mode and Data Hold
        • Auto Power Off
        • Tilt Stand



        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct



        Function Range
        DC Voltage 400.0mV – 1000V
        AC Voltage 400.0mV – 750V
        DC Current 40mA – 10A
        AC Current 40mA – 10A
        Duty Cycle 1% – 99%
        Resistance 400.0Ω – 40.00MΩ
        Frequency 99.99Hz – 10MHz
        Capacitance 4.000nF – 200.0µF
        Continuity Yes
        Built-in Buzzer Yes
        Diode Test Yes
        Battery Test Yes
        Ac Bandwidth 50Hz to 400Hz
        Digital Display LCD 4000 count
        Overrange Indication Yes
        Data Hold Yes
        Back Light Yes
        Back Light Yes
        Enclosure ABS
        Batteries 2 x AAA
        Weight 136g
        Dimensions 130 x 65 x 32mm
        Safety Specs CAT III 600V

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Major Tech
        SKU MTD81
        Barcode # 6008229006920
        Shipping Weight 0.2360kg
        Shipping Width 0.050m
        Shipping Height 0.200m
        Shipping Length 0.100m
        Shipping Cubic 0.000833625m3
        TYPE VALUE
        Type Compact Multimeter
        Brand Major Tech
        Batteries 2 x AAA
        Dimensions 130 x 65 x 32mm
