        NLS 30214 | Single Pole 35Amp Isolator Switch | IP66 Weather Protected
        $9.35 $8.50 ex. GST
        Video

        Learn more by watching our NLS 30214 | Single Pole 35Amp Isolator Switch | IP66 Weather Protected video.

        Description

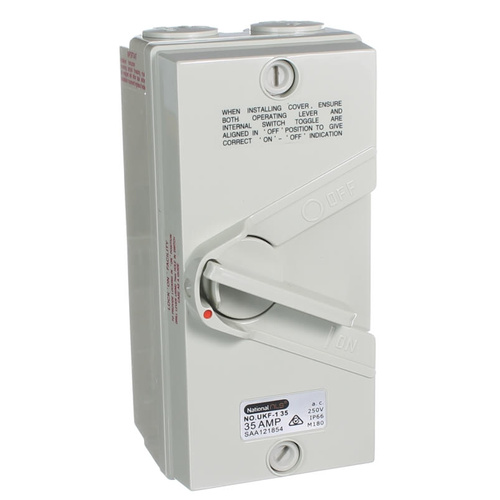

        NLS 30214  | Single Pole 35Amp Isolator Switch | IP66 Weather Protected

        Suitable for Air Conditioners and many other isolating purposes. These outdoor isolator switches are robust and can stand the harsh Australian sun.
        Electricians and Air conditioner installers find these isolators easy to install and find the neutral link and earth link located inside very handy. The terminals are large and will easily clamp down on 6mm - 8mm cable if required.

        Features:

        • Amperage: 35amp
        • IP66 Rated
        • The isolator switch complies with IEC/EN60947-3 and AS/NZS60947-3 standard.
        • Facility for padlocking in both on and off position provided, thereby enabling conformity to the electricity at work regulations.
        • The enclosure is made of high impact polycarbonate plastic material combining good insulation properties with strength, durability and style.
        • Silica gel basket seal is used between lid and base to provide environmental protection.
        • Supplied with two 25 to 20mm reducers for optional installation to 20mm conduit.
        • IP66 Rating prevents water and dust ingress.
        • Width: 84mm
        • Height: 84mm
        • Length: 174mm

        (30214)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand NATIONAL LIGHT SOURCES
        SKU 30214
        Barcode # 9336700003678
        Shipping Weight 0.4210kg
        Shipping Width 0.090m
        Shipping Height 0.090m
        Shipping Length 0.175m
        Shipping Cubic 0.001417000m3
        TYPE VALUE
        Brand National Light Sources
        Range WeatherX
        Colour Resistant Grey
        Rated Current (A) 35
        Height (mm) 84
        Width (mm) 84
        Length (mm) 174
        Complete / Skin Only / Grid Plate Only Complete
        Number of Switches / Gangs 1
        Standards IEC/EN60947-3 and AS/NZS60947-3
        Protection IP66
        Reviews
        5.0

        4 Reviews
        5 STARS
        4
        4 STARS
        0
        3 STARS
        0
        2 STARS
        0
        1 STAR
        0

        Write a review

        Bill Buckley

        35amp isolator on 5 February 2022

        great isolator plenty of space robust design We have used these for years to long to remember

        Eddie Borczuch

        Eddie the builder on 16 April 2021

        Excellent quality switches, Great price, Perfect for my job for them. Thanks.

        JOHN DENLAY

        REVIEW SINGLE POLE 35AMP 250V ISOLATING SWITCH (IP on 21 February 2017

        The switch was exactly what we needed and has been installed. Thank you to staff of Sparky Direct for the quick turn around of our order

        bill buckley

        35 amp isolator on 22 January 2015

        Great product have used 100 or more of these no failures Thanks bill
