        THEBEN LUNA108PLUSAL | Analogue Surface-mounted light sensor | External Light Sensor
        $97.10 $88.27 ex. GST
        Video

        Learn more by watching our THEBEN LUNA108PLUSAL | Analogue Surface-mounted light sensor | External Light Sensor video.

        Description

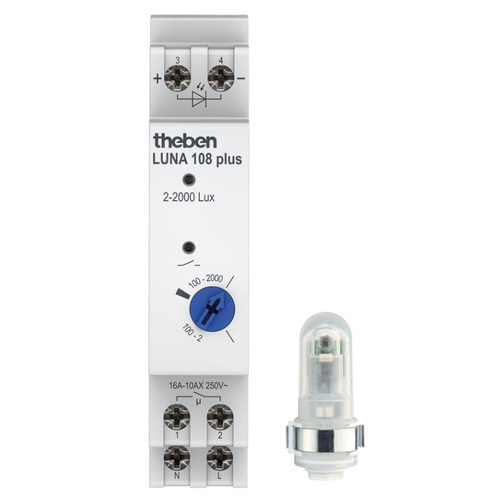

        THEBEN LUNA108PLUSAL | Analogue Surface-mounted light sensor | External Light Sensor

        • German Quality
        • Surface Mount
        • Analogue twilight switch
        • The external light sensor included in delivery
        • Fixed On and Off switching delay

        If you are controlling a motor or element, you must use a contactor to protect the twilight switch

        Features

        • Analogue twilight switch
        • The external light sensor included in delivery
        • Fixed On and Off switching delay to avoid faulty operation caused by lightning, car headlights etc.
        • Display of channel and switching status
        • Infinitely adjustable switching brightness

        (LUNA108PLUSAL)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Features
        Operating voltage 230 V AC
        Frequency 50 – 60 Hz
        Number of channels 1
        Stand-by consumption ~0.3 W
        Setting range brightness 2 – 2000 lx
        Switch-on delay 20 s
        Switch-off delay 80 s
        Switching output Switching of various phases, no SELV
        Width 1 modules
        Installation type DIN rail
        Type of connection Screw terminals
        Switching capacity 16 A at 250 V AC, cos φ = 1, 10 AX Fluorescent lamp load
        Incandescent/halogen lamp load 2600 W
        Halogen lamp load 2600 W
        LED lamp < 2 W 30 W
        LED lamp 2-8 W 350 W
        LED lamp > 8 W 350 W
        Sensor (included) Surface-mounted light sensor
        Housing and insulation material High-temperature resistant, self-extinguishing thermoplastic
        Ambient temperature -30°C ... 55°C
        Type of protection IP 20
        Protection class II
        Max. cable length to sensor 50 m
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Theben
        SKU LUNA108PLUSAL
        Barcode # 4003468100974
        Shipping Weight 0.1260kg
        Shipping Width 0.103m
        Shipping Height 0.046m
        Shipping Length 0.076m
        Shipping Cubic 0.000360000m3
        TYPE VALUE
        Type Twilight Switch
        Brand Theben
        Rated Current (A) 16(10)
        Height (mm) 65.5
        Width (mm) 35.8
        Length (mm) 85.5
        Protection IP20
        Mounting Din Rail
        Voltage (V) 240
        Number of Modules 1
