        Learn more by watching our Alpha CSPZ065315S | SDS Plus 6.5x315mm 4 Cutter Masonry Bit | Reo Head video.

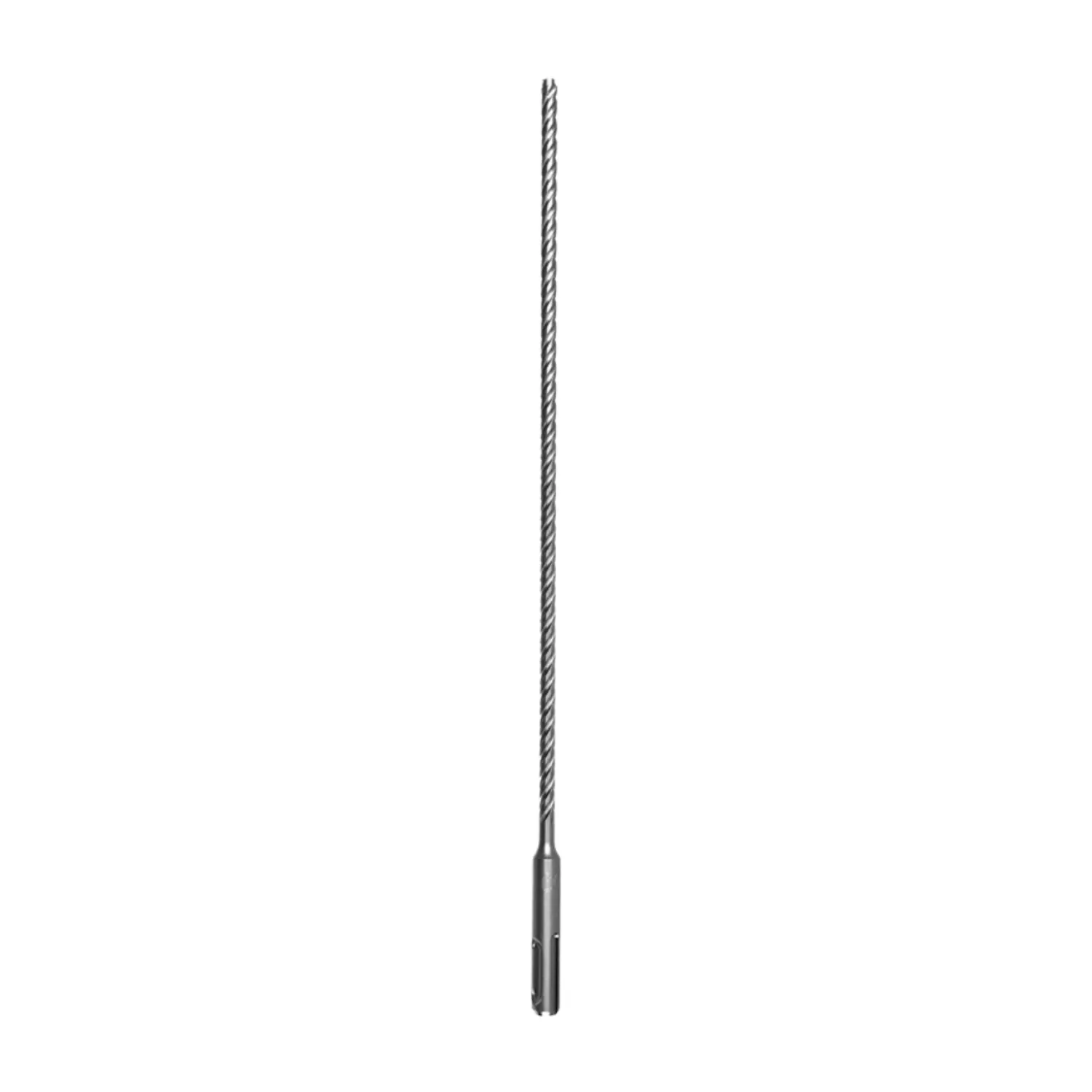

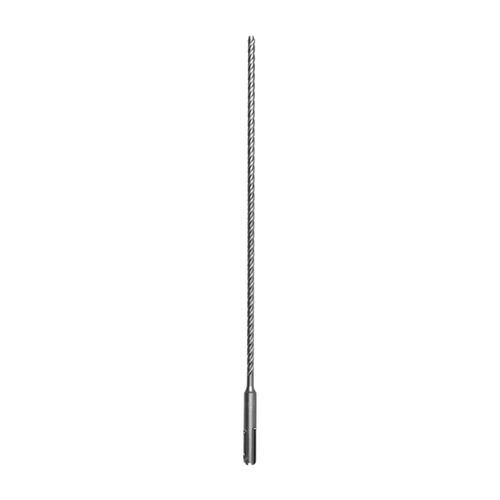

        Alpha | SDS Plus 4 Cutter Masonry Drill Bit 6.5 x 315mm | Reo Head Solid Carbide

        The Alpha CSPZ065315S is an SDS Plus masonry drill bit with a 4 cutter Reo Head, rated 6.5mm drilling diameter and 315mm overall length. The CSPZ065315S is made in Germany and PGM certified, so hole tolerances suit anchor and structural fixing work. The solid carbide head is built for reinforced concrete, including holes that run into rebar.

        Standard 2 cutter SDS bits stall or deflect the moment the carbide touches rebar. Concrete slabs and columns on commercial sites carry reinforcement at depths nobody on the tools can see. The 4 x 90 degree cutter geometry spreads impact across four carbide edges at once, so the bit does not seize on a rebar strike. The 315mm overall length gives penetration for deeper anchor installations and pass-through work in structural concrete.

        A single bit that drills concrete and the rebar inside it removes a tool changeover and a second consumable from the ute. Alpha rates the Reo Head geometry at up to 6 times longer life in reinforced concrete against professional 4 cutter SDS alternatives. The optimised flute configuration clears dust continuously, and Alpha rates it at up to 20% more holes per charge on battery rotary hammers. Certified hole tolerances also mean mechanical anchors seat correctly without reaming.

        Features

        • 4 cutter Reo Head — four carbide edges set at 90 degree symmetry cut evenly and stop the bit seizing when it reaches reinforcing steel.
        • Solid carbide head — a one piece head with reinforced shoulders takes hammer impact and holds its centre in dense concrete.
        • 6.5mm drilling diameter — matched to 6.5mm masonry plugs and anchor fixings used across commercial and domestic fit-off.
        • 315mm overall length — long reach for deep anchor holes and pass-through drilling that shorter SDS bits cannot finish.
        • SDS Plus shank — the CSPZ065315S locks into an SDS Plus rotary hammer chuck without a key or an adaptor.
        • PGM certified — hole accuracy is certified, which matters where an anchor manufacturer specifies a hole size.
        • Centring tip — starts the hole on the mark rather than walking across a smooth slab face.
        • Optimised flute design — high volume flutes clear dust as the bit advances, holding drilling speed on deep holes.
        • Up to 20% more holes per charge — Alpha rates the flute geometry for extra holes per battery on cordless SDS hammers.
        • Up to 6 times longer life — Alpha rates the Reo Head against professional 4 cutter SDS drills for life in concrete with rebar.
        • Made in Germany — the CSPZ065315S is manufactured in Germany under the Alpha Reo Head range.
        • SDS Plus hammer required — the shank will not grip in a keyed or keyless drill chuck, so a rotary hammer is needed.

        Where to use

        • Reinforced concrete slabs — the CSPZ065315S drills slab concrete and continues into rebar without stalling on the steel.
        • Structural anchor holes — certified hole accuracy suits mechanical and chemical anchors specified for concrete columns and beams.
        • Commercial masonry and blockwork — brick, block and structural concrete on commercial fitouts and base build work.
        • Cable tray and conduit brackets — landing tray hangers, saddles and conduit brackets into concrete ceilings and walls.
        • Switchboard and enclosure mounting — the 315mm reach clears packers and deep boxes when fixing an enclosure to a concrete wall.
        • Deep pass-through drilling — the CSPZ065315S reaches through thick concrete walls where a 160mm bit runs out of length.
        • Renovation and retrofit drilling — existing concrete where the rebar layout is unknown and a strike is likely.
        • Cordless SDS work — the flute design suits battery rotary hammers on sites with no site power run in yet.

        The CSPZ065315S is a masonry and concrete drill bit and is not intended for tile, glass or mirror. It is not a timber or metal drill, so keep it off stud work and steel sections. The SDS Plus shank will not fit a standard drill chuck, so the bit needs an SDS Plus rotary hammer.

        (CSPZ065315S)

        The Alpha CSPZ065315S is designed for drilling into reinforced concrete and masonry, including areas with embedded rebar.

        The 4-cutter Reo Head improves drilling performance in reinforced concrete and helps reduce jamming when hitting rebar.

        Yes. It is PGM certified, meaning it provides accurate hole tolerances for anchor and fixing applications.

        It features a solid carbide head for increased durability and impact resistance.

        The optimised flute design improves dust removal, helping maintain drilling speed and efficiency.

        Yes. Sparky Direct stocks the Alpha CSPZ065315S with fast dispatch and fast Australia-wide delivery.

        100-Day Fuss-Free Returns
        We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

        • Items must be unused, with all parts, accessories, and original packaging.
        • We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
        • Proof of purchase is required.
        • Return shipping is the responsibility of the customer.

        If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.

        All products come with a manufacturer’s or supplier’s warranty

        • Warranty starts from the Invoice Date
        • Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
        • Sparky Direct isn’t responsible for losses caused by product failure.
        • Warranties are void if products aren’t installed by a licensed electrician.

        Damaged or Faulty Goods
        If your order arrives damaged or is faulty, let us know within 24 hours.

        • Sparky Direct will pay for return shipping via an emailed return label.
        • If the fault is confirmed, we will send you a replacement item or provide a refund.

        Contact us via our chat to arrange the return.

        Exclusions
        We can’t accept returns for:

        • Items that have been installed, modified, or used
        • Clearance, End of life, Discontinued, or special order items (unless faulty)
        • All PPE Items
        • Goods returned without original packaging or proof of purchase

        How to Request a Return

        1. Contact our customer service team with your order number.
        2. Confirm it’s eligible under our return or warranty policy.
        3. Pack the item securely and return it using a trackable service.
        4. Once we receive and inspect it, we’ll process your refund or replacement.

        Warranty starts from Invoice Date

        Warranty Method:  Return to Sparky Direct

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Alpha
        SKU CSPZ065315S
        Model # CSPZ065315S
        Barcode # 9313601015627
        Package Weight 0.121kg
        TYPE VALUE
        Type Tools
        Type Drill Bit
        Brand Alpha
        Range Reo Head
        Length (mm) 315
        Diameter (mm) 6.5
        Head Type 4 Cut
        Shank Type SDS
