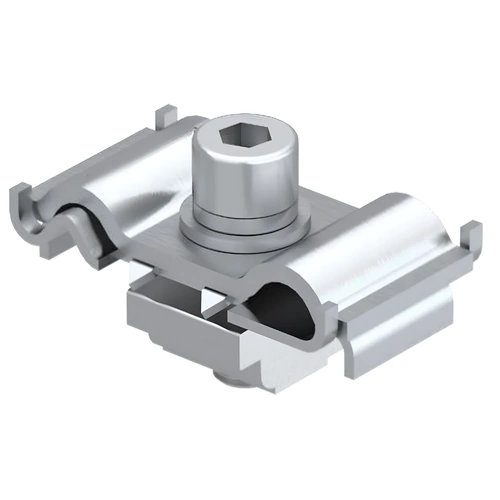

        Clenergy EZ-GL-AT | PV-ezRack Grounding Lug | Silver

        The Clenergy EZ-GL-AT is a heavy-duty grounding lug built for safe and compliant earthing of solar PV systems. Designed for fast installation with Clenergy ECO, T50, and T110 rails, it secures firmly via a Z module fastening system, delivering a stable ground point in rooftop or ground-mount arrays.

        Made from SUS316 stainless steel, the lug, bolt, and washer resist corrosion in tough outdoor conditions. The dual-channel design supports a wide range of cable sizes, making it ideal for commercial installs with varying earthing requirements. Its compact footprint fits easily into tight rail layouts while offering a secure, tool-fastened connection.

        EZ-GL-AT Features

        • Compatible with ECO, T50, and T110 rails: Installs via Z module for secure, quick attachment.
        • Dual-channel cable sizing:
            Channel 1: 4, 6, 10, 16mm²
            Channel 2: 25, 35, 50mm²
        • SUS316 stainless steel construction: Corrosion-resistant for long outdoor service life.
        • Compact and lightweight: 52mm (W) x 30mm (H) x 17.4mm (D), weighing just 0.073kg.
        • Tool-secured installation: Simple, reliable grounding with lasting performance.

        EZ-GL-AT FAQ
        Q: Which cable sizes fit this lug?
        A: It supports:
        • Channel 1: 4, 6, 10, 16mm²
        • Channel 2: 25, 35, 50mm²

        Q: Is it compatible with all PV-ezRack rails?
        A: It fits Clenergy ECO, T50, and T110 rail systems.

        Q: What material is it made from?
        A: SUS316 stainless steel throughout—for high corrosion resistance and long-term durability outdoors.

        (EZ-GL-AT)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 10 Year
        Commercial Use: 10 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clenergy
        SKU EZ-GL-AT
        Package Weight 0.086kg
        Package Width 0.050m
        Package Height 0.030m
        Package Length 0.040m
        TYPE VALUE
        Type Grounding Lug
        Brand Clenergy
        Colour Silver
        Material Aluminium/Steel/Brass
