Clipsal | Centrifugal Square Ductable Exhaust Fan 287mm | White

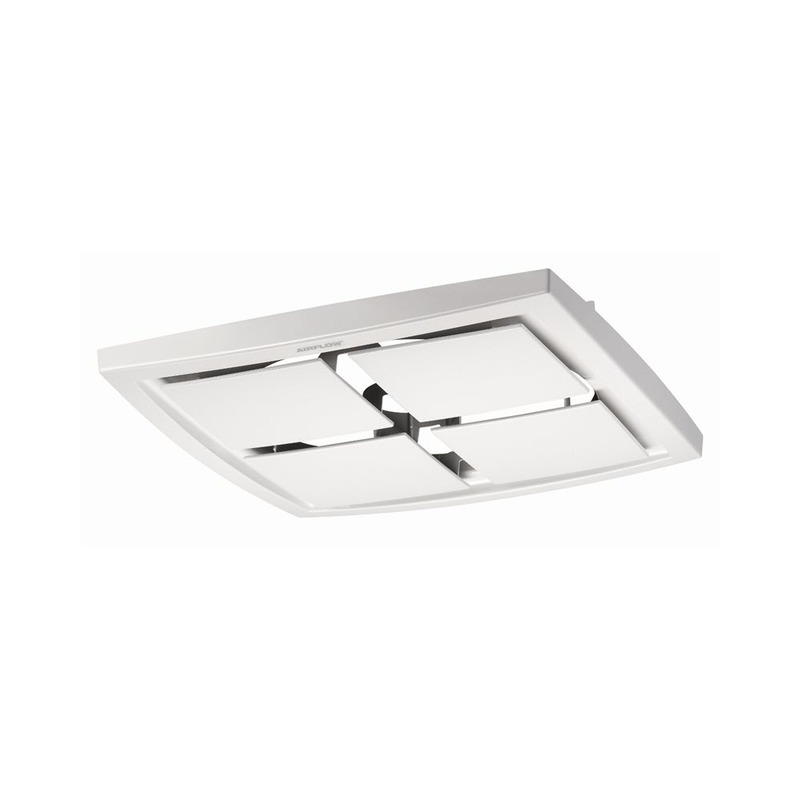

The Clipsal Airflow CEF40N-WE is a ceiling-mounted centrifugal exhaust fan rated 240V 35W, designed for ducted installation with a 150mm side-entry duct connection. The square inlet grille measures 287mm across, with a recessed mounting depth of 212mm. It carries a 3-year manufacturer warranty and complies with IPx4 splash protection standards.
Bathroom and laundry ventilation often relies on surface-mounted non-ducted fans that can't shift steam fast enough, leaving walls damp and vulnerable to mould. A ducted fan moves moist air directly outside through ductwork, preventing condensation buildup and mould growth at the source. The CEF40N-WE's square inset grille blends into modern ceiling finishes while the centrifugal fan design delivers 290 m³/hr airflow, making it suitable for kitchens, bathrooms and laundries in residential and commercial settings. The ducted configuration allows installation in ceilings without the aesthetic compromise of a large round outlet.
Electricians specify ducted exhaust fans for rental property retrofits and new-build bathrooms where performance and longevity matter. The CEF40N-WE fits a standard 287mm ceiling cutout and clips to 150mm flexible ductwork with a straightforward side-entry connection. Supplied with an 850mm plug and lead, the fan installs directly into the circuit, minimising additional wiring on site. The positive-clip inlet grille is removable without tools, making annual cleaning and maintenance quick and cost-free.
Features
- Centrifugal fan motor — delivers 290 m³/hr airflow, efficiently shifting steam and odours compared to smaller inline or axial designs.
- Square inset grille (287mm cut-out) — fits a standard ceiling opening, rotatable to align with room walls without damage to paint or plasterboard.
- Positive-clip inlet grille — removes without tools for cleaning, reattaches securely to prevent rattle and disconnection during operation.
- Side-entry duct connection — 150mm flexible ductwork clips to the fan body, factory pre-taped at the connection for fast on-site assembly.
- Recessed mounting (212mm depth) — installs into ceiling cavity with minimal protrusion, suitable for standard timber-frame and suspended ceilings.
- Whisper-quiet operation (44 dBa) — ball-bearing motor runs at 44 decibels, meeting expectations for residential bathrooms without creating noise complaints.
- Low power consumption (35W) — draws minimal current on a standard 10A lighting circuit, no dedicated sub-circuit required in most installations.
- Supplied ready to run — includes 850mm power lead and plug, no additional cabling or connectors needed on the job.
- IPx4 splash protection — rated for damp bathroom and laundry environments, not submersible and not suitable for external or high-splash areas.
- ABS plastic construction — lightweight, corrosion-resistant housing suitable for indoor humid environments, halogen-free.
Where to use
- Bathroom exhaust ventilation — the CEF40N-WE is specified for residential bathrooms where ducting to an external wall or roof space is feasible and moisture control is a priority.
- Laundry exhaust — removes dryer heat and humidity in laundries, with ductwork terminating outside to prevent warm moist air recirculating indoors.
- Kitchen ventilation retrofit — supports kitchen exhaust when ductwork paths exist; the 290 m³/hr capacity suits residential kitchens with moderate cooking loads.
- Commercial bathroom and toilet ventilation — the 3-year warranty and durable ABS housing make the CEF40N-WE suitable for small commercial facilities where downtime is costly.
- Rental property upgrades — commonly installed during bathroom renovations and rental turnovers to upgrade from non-ducted fans to ducted exhaust.
- New-build residential construction — specified in display homes and apartments where ducting infrastructure is built into the roof space during framing.
The CEF40N-WE is not suitable for external walls, exposed damp locations, or outdoor installation. It is designed for internal ceilings only and should not be used where ducting cannot terminate safely outside the building envelope.
