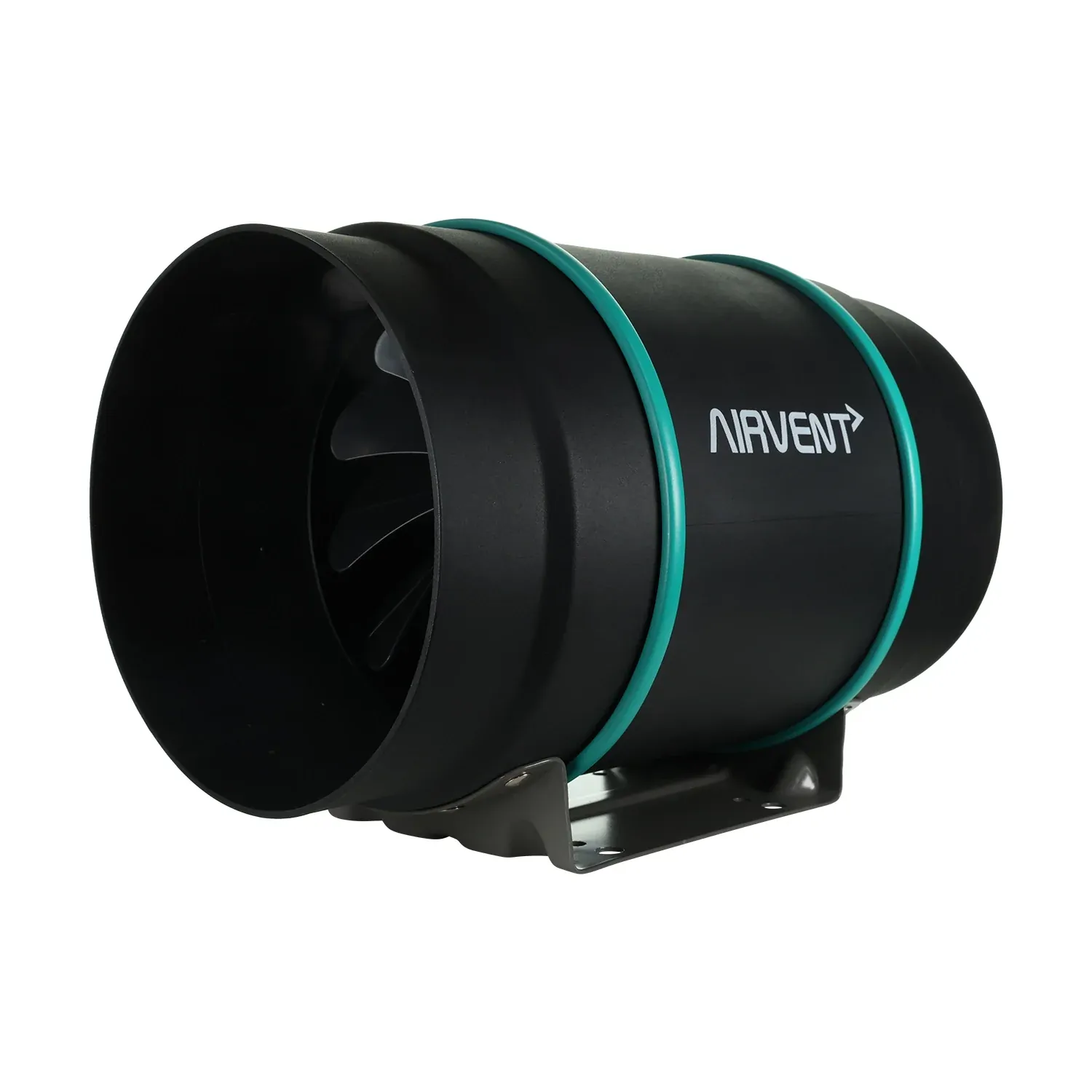

The Airvent ECIF200-MAX is a 200mm inline mixed flow fan with an EC motor rated 180W, running on 240V at 0.75A. It is rated at 306 litres per second, or 1102 cubic metres per hour, against 269 Pa of static pressure. The ECIF200-MAX turns at 2971 RPM and reaches 55.3 percent total efficiency at that duty point. It arrives with a 1.2 metre lead and a three-pin plug fitted.
Airflow ratings deteriorate once a duct run accumulates length, bends, and a restrictive terminal. The ECIF200-MAX is rated at 269 Pa of static pressure, approximately double the capability of the smaller configurations in the range. That capability sustains 306 L/s through installations that would otherwise stall a lesser impeller. Sound pressure measures 47 dBA at the inlet and 48 dBA at the outlet, both at 3 metres.
Specifying this configuration represents a decision about system resistance rather than room dimensions. It draws 0.75A, considerably above the smaller configurations, so the circuit allowance requires adjustment. Speed control operates through an external potentiometer that is not supplied with the fan. Sigrist Design states 2019 and 2022 NCC/BCA Section J compliance.
The ECIF200-MAX is an in-duct fan and does not mount at the ceiling or wall face, so ducting, a grille, and a terminal are all required. At 47 dBA at the inlet it is the loudest unit in the range, so assess noise-sensitive positions before committing to full speed. Speed adjustment needs an external potentiometer, which is not supplied with the fan.
(ECIF200-MAX)
It is used for high capacity ventilation where large volumes of air need to be moved or extracted.
In large bathrooms, commercial kitchens, offices or areas with long duct runs and high airflow demand.
It is designed to keep noise controlled, especially when installed within ducting away from occupied areas.
Yes. It has adjustable speed control for commissioning and balancing.
It helps maintain airflow over long duct runs or where there are bends and resistance in the system.
Yes. Sparky Direct stocks the Airvent ECIF200-MAX with fast dispatch and delivery across Australia.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 2 Year
Commercial Use: 2 Year
Warranty Method: Return to Sparky Direct
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Airvent |
| SKU | ECIF200-MAX |
| Model # | IM-AI-200-ECE-180 |
| Barcode # | 744109912566 |
| Package Weight | 4.200kg |
| TYPE | VALUE |
|---|---|
| Type | Inline Fan |
| Brand | Airvent |
| Rated Current (A) | 0.75 |
| Height (mm) | 234 |
| Width (mm) | 251 |
| Length (mm) | 330 |
| Mounting | Inline |
| Voltage (V) | 240 |
| Diameter (mm) | 200 |
| Air Flow (m3/h) | 1332 |
| Fan Speed (RPM) | 2971 |
| Fan Wattage (W) | 180 |
