The Clipsal MX9B118N is a MAX9 MAXBAR top-feed comb busbar rated 100A, configured 1P+N across 18 modules of 18mm pitch with a neutral terminal block. The MX9B118N takes the active and neutral feed at the main incomer and combs it across a row of Clipsal MAX9 RCBOs and AFDDs, replacing the cable tails a traditional switchboard loom needs. It complies with AS/NZS 61439-3 and AS/NZS 3000, and ships with the neutral terminal block for single-row boards or the row that carries the main switch.
The row that holds the main switch has to distribute both active and neutral across its protective devices, which the conventional cable method makes slow and untidy. A single-row board faces the same task with no separate incomer row to draw from. The MX9B118N handles this with an integrated neutral terminal block and a top-feed comb busbar that lands active and neutral in one pass. Its cuttable configuration lets an electrician trim the bar to the exact module count a row requires.
MAXBAR is engineered to accelerate switchboard assembly: Clipsal rates the system at up to 15 times faster than feeding RCBOs with individual cables. The MX9B118N arrives as a kit with the neutral terminal block and tooth covers the incomer row needs, so there is less to source and less to hand-terminate. Feeding active and neutral from one bar produces a cleaner assembly that is quicker to verify and easier to hand over. For contractors building MAX9 boards daily, the busbar keeps every switchboard consistent from one installation to the next.
The MX9B118N is a MAX9 system component and is not compatible with other busbar ranges or non-MAX9 enclosures. It is sized for an 18-module 1P+N row, so it is not suited to three-phase rows or module counts above 18. It is a switchboard part for installation by a licensed electrician, not a general-purpose busbar for ad-hoc use.
(MX9B118N)
The Clipsal MX9B118N complies with AS/NZS 61439-3 and AS/NZS 3000 for low-voltage switchboard assemblies. The insulated busbar is rated to 500V with a 4kV impulse withstand and a 960 deg C glow-wire fire rating. Installation must be carried out by a licensed electrician.
No. The MX9B118N is a top-feed comb busbar that picks up active and neutral at the incomer and combs it across each device, so individual RCBOs do not need separate cable tails. Clipsal rates this at up to 15 times faster than traditional cable feeding.
The MX9B118N feeds Clipsal MAX9 single-phase protective devices, including SLIM RCBOs, 2-module RCBOs, and AFDDs, on a 1P+N row. It is designed for the Clipsal MAX9 system and mounts in MAX9 enclosures. It is not compatible with other busbar ranges.
The MX9B118N includes a neutral terminal block and is made for single-row boards or the row that carries the main incomer. The MX9B118 ships without a neutral terminal block, for rows that take their feed from another row in a multi-row enclosure. Choose based on where the row sits.

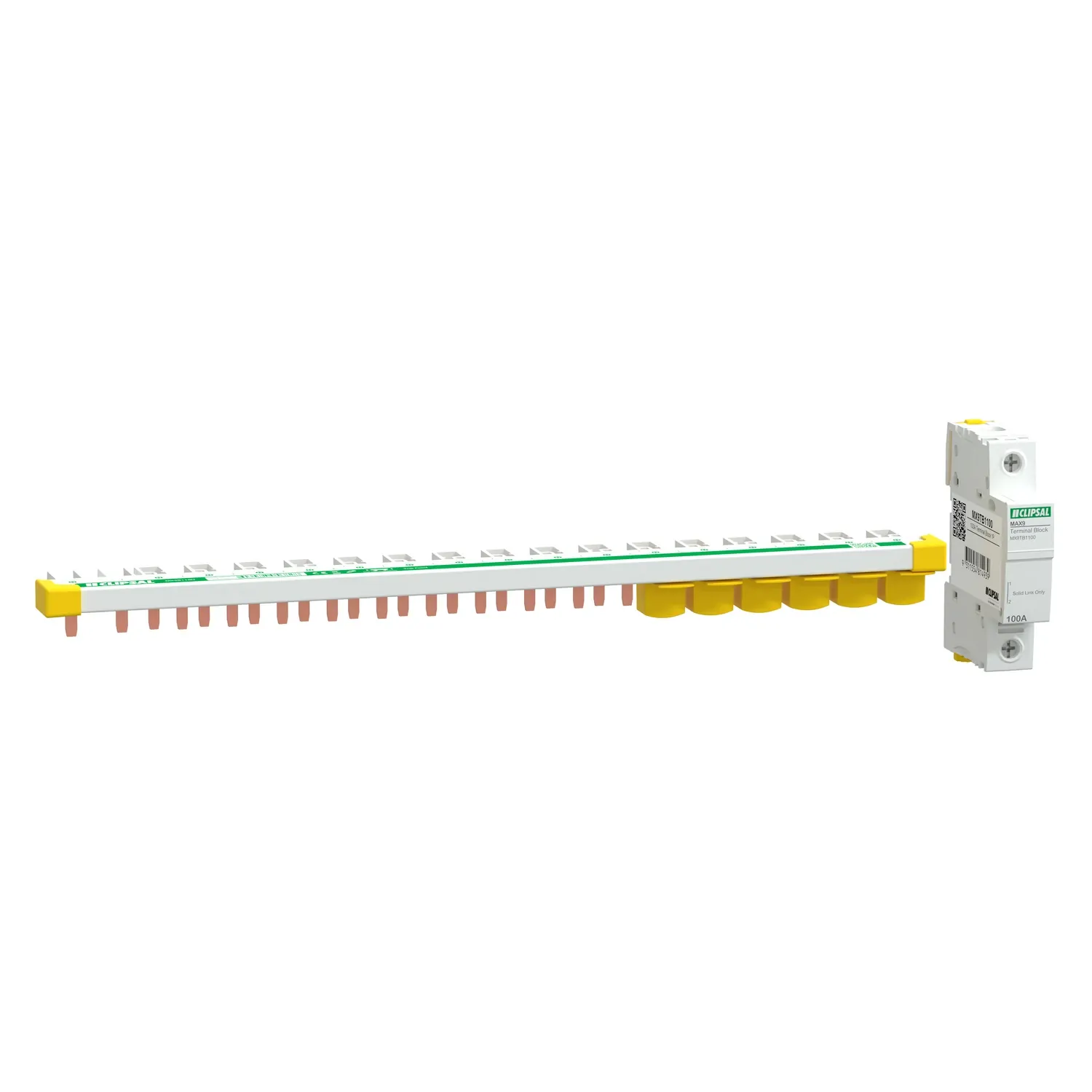

The kit includes the 18-module 1P+N comb busbar, 1 neutral terminal block, and 6 tooth covers. The neutral terminal block distributes neutral in the row with the main switch, and the tooth covers insulate any unused teeth after the bar is cut to length.
Clipsal covers this MAX9 busbar under its standard 7 year warranty, applying to both domestic and commercial use from the invoice date. The warranty is void if the product is not installed by a licensed electrician. Keep proof of purchase for any claim.
No. This busbar is a 1P+N comb busbar, so it distributes a single phase and neutral only. A three-phase row needs a 3P+N busbar instead. A licensed electrician should confirm the busbar matches the board configuration before installation.
The Clipsal by Schneider Electric MX9B118N is available online from Sparky Direct, with Australia-wide delivery to any state or territory including regional areas. Sparky Direct is an Australian electrical wholesaler established in 2005, supplying more than 500,000 customers with transparent trade pricing.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 7 Year
Commercial Use: 7 Year
Warranty Method: Clipsal in home warranty
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Clipsal by Schneider Electric |
| SKU | MX9B118N |
| Model # | MX9B118N |
| Barcode # | 3606488056828 |
| Package Weight | 0.395kg |
| TYPE | VALUE |
|---|---|
| Type | Circuit Protection |
| Brand | Clipsal by Schneider Electric |
| Range | MAX9 |
| Rated Current (A) | 100 |
| Voltage (V) | 230 |
| Number of Poles | 1P+N |
| Number of Modules | 18 |
