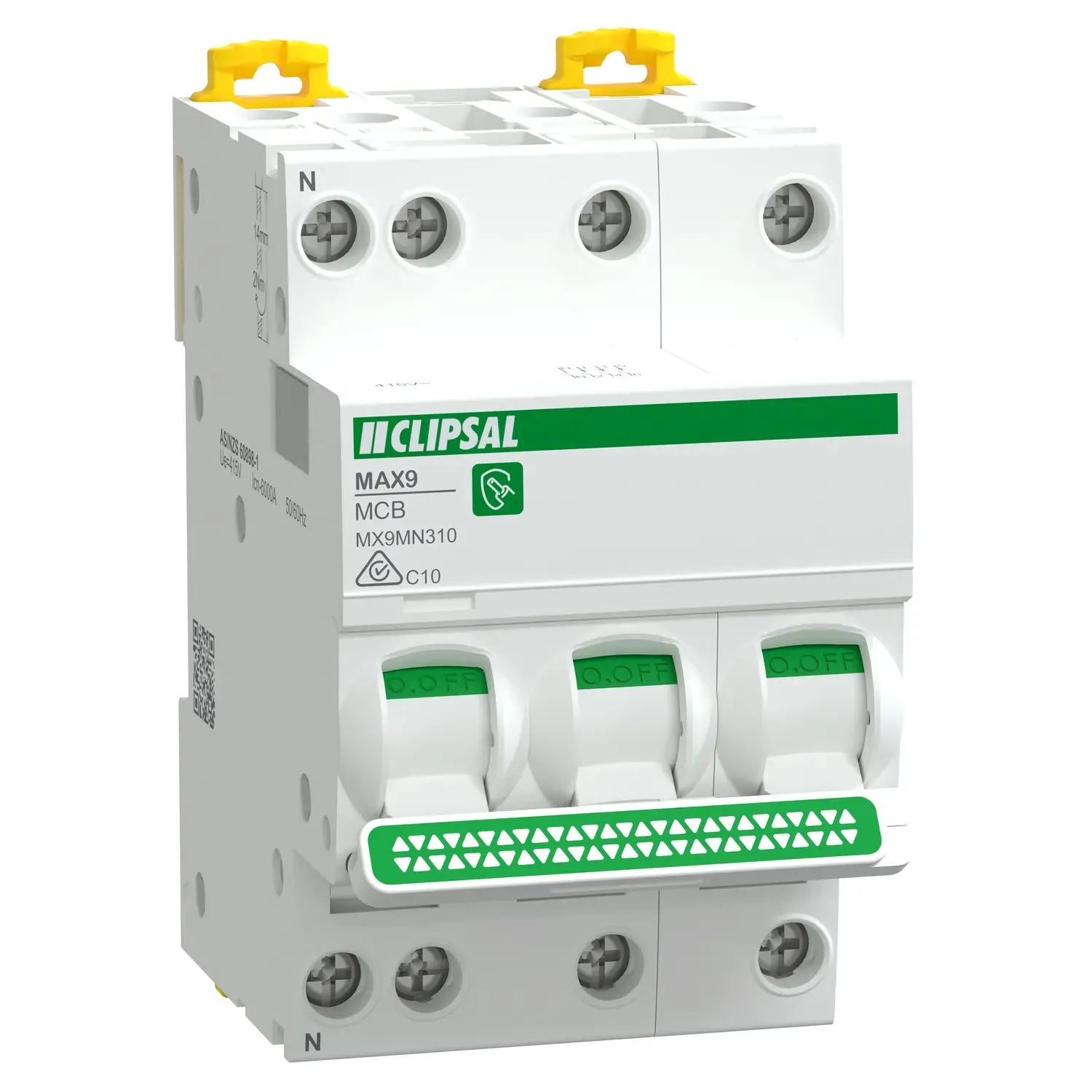

The Clipsal MX9MN310 is a 10A miniature circuit breaker (MCB) with a 3P+N configuration, designed for 415V three-phase circuit protection in light commercial and industrial environments. With a C curve tripping profile between 5 to 10 times the rated current, it is ideal for circuits with moderate inrush currents.
This breaker offers a 6kA breaking capacity and complies with AS/NZS 60898 standards. It includes a toggle mechanism, contact position indicator and ON/OFF status display for safe and clear operation. Rated for 20,000 electrical and mechanical operations, it provides long-lasting protection and includes IP20 internal protection.
The 54mm wide body fits standard three-phase DIN rail boards. Tunnel terminals support 1 to 10mm² flexible and 1 to 16mm² rigid cables. It is also fully compatible with the MAXBAR system for fast and clean busbar integration.
(MX9MN310)
Clipsal MAX9 MX9MN 3P+N circuit breakers are used to protect three-phase electrical circuits from overloads and short circuits in commercial and light industrial switchboards.
The range is available in sizes from 6 amp through to 40 amp, covering a wide range of three-phase lighting and general power circuit requirements.
3P+N means the breaker protects all three phases and switches the neutral at the same time for safer isolation.
They are designed for three-phase lighting, appliances, and general power circuits where a C Curve tripping characteristic is suitable.
Yes. They are commonly used in commercial switchboards requiring compact and reliable three-phase circuit protection.
Yes. Sparky Direct stocks Clipsal MAX9 MX9MN 3P+N circuit breakers with fast dispatch and fast Australia-wide delivery.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 7 Year
Commercial Use: 7 Year
Warranty Method: Clipsal in home warranty
| Specification | Details |
|---|---|
| SKU | MX9MN310 |
| Type | Miniature Circuit Breaker (MCB) |
| Poles Description | 3P + N |
| Rated Current | 10 A at 30 °C |
| Voltage Rating | 415 V AC, 50/60 Hz |
| Curve Type | C Curve |
| Breaking Capacity | 6000 A at 415 V AC |
| Impulse Withstand Voltage | 4 kV |
| Insulation Voltage | 400 V |
| Mounting | DIN rail |
| Dimensions (H x W x D) | 85 mm x 54 mm x 71 mm |
| Connection Capacity | 1–10 mm² flexible, 1–16 mm² rigid |
| Tightening Torque | 2 N·m |
| IP Rating | IP20 |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Clipsal by Schneider Electric |
| SKU | MX9MN310 |
| Model # | MX9MN310 |
| Barcode # | 3606487401513 |
| Package Weight | 0.356kg |
| Package Width | 0.053m |
| Package Height | 0.071m |
| Package Length | 0.053m |
| TYPE | VALUE |
|---|---|
| Type | Circuit Protection |
| Brand | Clipsal by Schneider Electric |
| Rated Current (A) | 10A |
| Height (mm) | 85mm |
| Width (mm) | 53mm |
| Depth (mm) | 71mm |
| Voltage (V) | 415V AC |
| Number of Poles | 3P+N |
| Breaking Capacity | 6kA |
