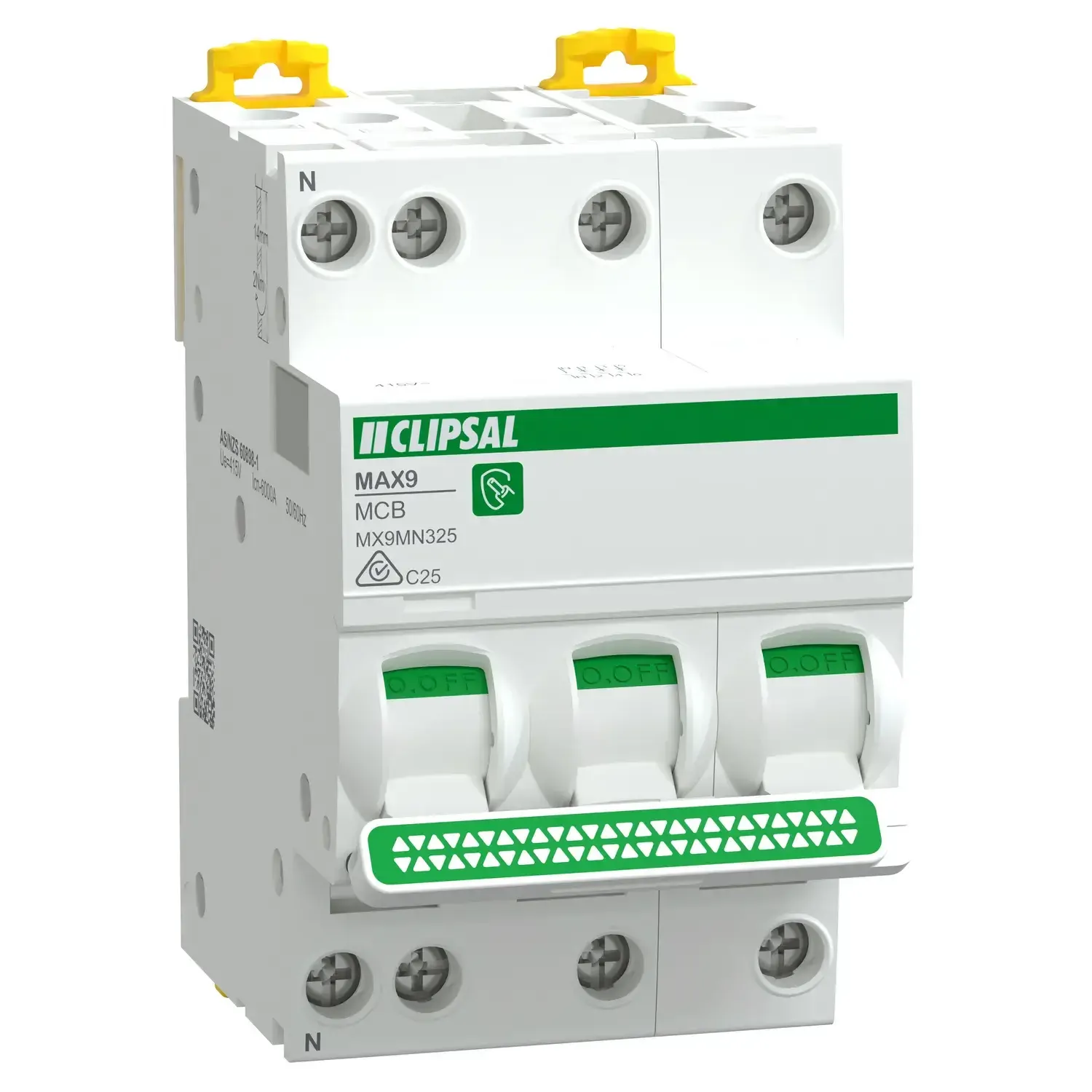

        Clipsal MX9MN325 | MAX9 25A MCB 6kA 3P+N | C Curve

        The Clipsal MX9MN325 is a 25A miniature circuit breaker (MCB) with a 3P+N configuration, engineered for 415V three-phase circuit protection in commercial and light industrial installations. It uses a C curve tripping profile (5 to 10 times rated current), making it ideal for mixed loads with moderate inrush current such as lighting, power outlets or small machinery.

        With a 6kA breaking capacity, the MX9MN325 complies with AS/NZS 60898 and features a toggle mechanism, contact position indicator and ON/OFF visual status for clear monitoring. It is rated for 20,000 mechanical and electrical cycles, ensuring long-term reliability.

        The compact 54mm body is ideal for tight switchboard layouts, and tunnel-type terminals support 1–10mm² flexible and 1–16mm² rigid cables. Like all MAX9 breakers, it is MAXBAR compatible for streamlined and secure installations.

        Clipsal MX9MN325 Features

        • 25A C Curve, 3P+N: Suited for balanced three-phase loads with switched neutral.
        • 415V AC Rated: Ideal for commercial and light industrial applications.
        • 6kA Breaking Capacity: Complies with AS/NZS 60898 for fault protection.
        • Compact 54mm Width: Saves space in multi-pole distribution boards.
        • MAXBAR Compatible: Allows fast and secure busbar connection in MAX9 systems.

        Where to use this Clipsal MX9MN325

        • Three-phase lighting and appliance circuits in commercial settings.
        • Industrial distribution boards using MAX9 protection systems.
        • Installations requiring space-saving 3P+N breakers with neutral switching.

        (MX9MN325)

        Clipsal MAX9 MX9MN 3P+N circuit breakers are used to protect three-phase electrical circuits from overloads and short circuits in commercial and light industrial switchboards.

        The range is available in sizes from 6 amp through to 40 amp, covering a wide range of three-phase lighting and general power circuit requirements.

        3P+N means the breaker protects all three phases and switches the neutral at the same time for safer isolation.

        They are designed for three-phase lighting, appliances, and general power circuits where a C Curve tripping characteristic is suitable.

        Yes. They are commonly used in commercial switchboards requiring compact and reliable three-phase circuit protection.

        Yes. Sparky Direct stocks Clipsal MAX9 MX9MN 3P+N circuit breakers with fast dispatch and fast Australia-wide delivery.

        100-Day Fuss-Free Returns
        We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

        • Items must be unused, with all parts, accessories, and original packaging.
        • We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
        • Proof of purchase is required.
        • Return shipping is the responsibility of the customer.

        If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.

        All products come with a manufacturer’s or supplier’s warranty

        • Warranty starts from the Invoice Date
        • Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
        • Sparky Direct isn’t responsible for losses caused by product failure.
        • Warranties are void if products aren’t installed by a licensed electrician.

        Damaged or Faulty Goods
        If your order arrives damaged or is faulty, let us know within 24 hours.

        • Sparky Direct will pay for return shipping via an emailed return label.
        • If the fault is confirmed, we will send you a replacement item or provide a refund.

        Contact us via our chat to arrange the return.

        Exclusions
        We can’t accept returns for:

        • Items that have been installed, modified, or used
        • Clearance, End of life, Discontinued, or special order items (unless faulty)
        • All PPE Items
        • Goods returned without original packaging or proof of purchase

        How to Request a Return

        1. Contact our customer service team with your order number.
        2. Confirm it’s eligible under our return or warranty policy.
        3. Pack the item securely and return it using a trackable service.
        4. Once we receive and inspect it, we’ll process your refund or replacement.

        Warranty starts from Invoice Date

        Domestic Use: 7 Year
        Commercial Use: 7 Year
        Warranty Method: Clipsal in home warranty

        Specification Details
        SKU MX9MN325
        Type Miniature Circuit Breaker (MCB)
        Poles Description 3P + N
        Rated Current 25 A at 30 °C
        Voltage Rating 415 V AC, 50/60 Hz
        Curve Type C Curve
        Breaking Capacity 6000 A at 415 V AC
        Impulse Withstand Voltage 4 kV
        Insulation Voltage 400 V
        Mounting DIN rail
        Dimensions (H x W x D) 85 mm x 54 mm x 71 mm
        Connection Capacity 1–10 mm² flexible, 1–16 mm² rigid
        Tightening Torque 2 N·m
        IP Rating IP20

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU MX9MN325
        Model # MX9MN325
        Barcode # 3606487401544
        Package Weight 0.356kg
        Package Width 0.053m
        Package Height 0.071m
        Package Length 0.053m
        View Datasheet
        View Brochure
        TYPE VALUE
        Type Circuit Protection
        Brand Clipsal by Schneider Electric
        Rated Current (A) 25A
        Height (mm) 85mm
        Width (mm) 53mm
        Depth (mm) 71mm
        Voltage (V) 415V AC
        Number of Poles 3P+N
        Breaking Capacity 6kA
