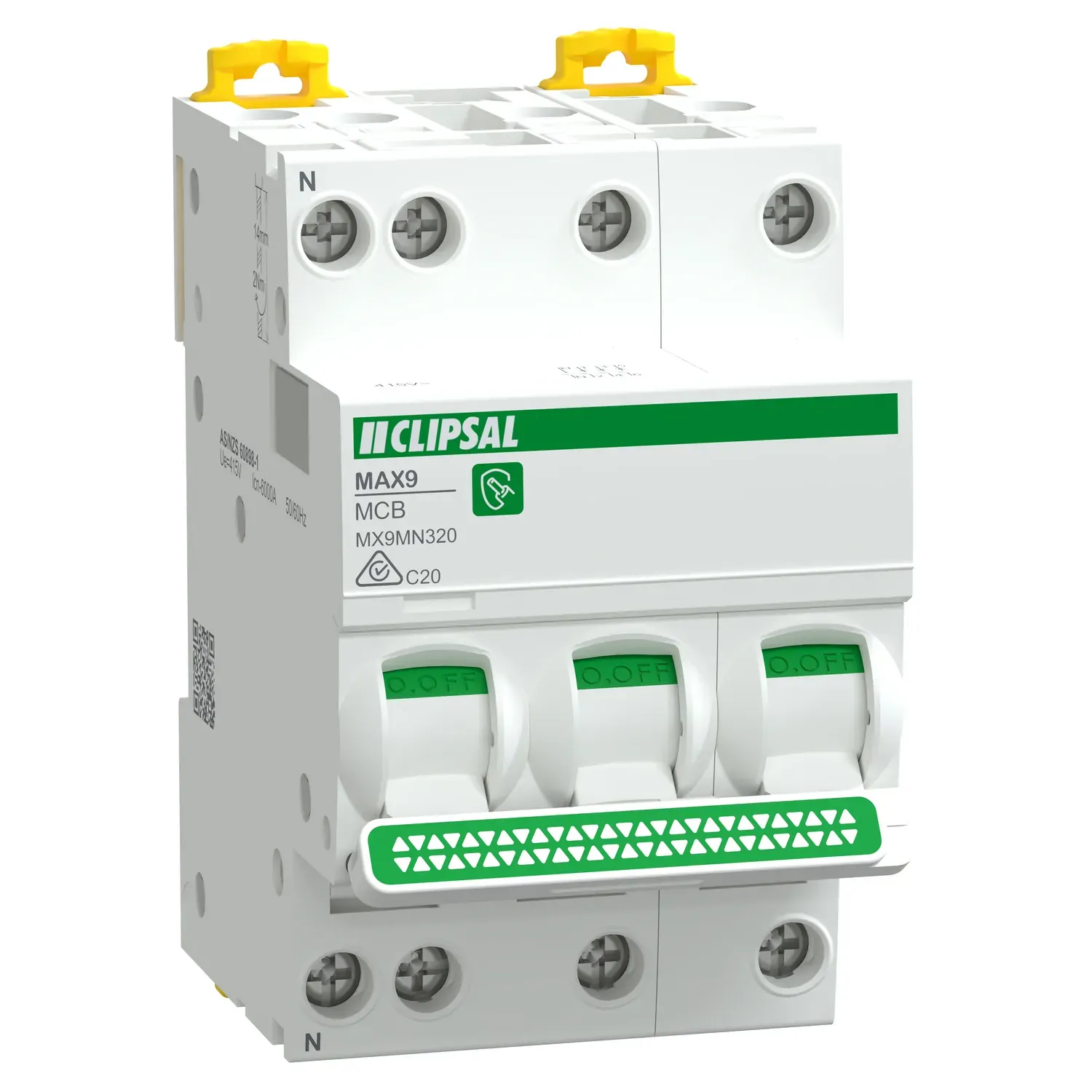

        Clipsal by Schneider Electric | MAX9 Miniature Circuit Breaker 20A 3P+N 6kA | C Curve

        The Clipsal MX9MN320 is a 20A miniature circuit breaker in a 3P+N pole configuration, rated 415V AC for three-phase circuit protection. The MX9MN320 uses a C curve tripping profile, with magnetic tripping between 5 and 10 times rated current. It carries a 6000A breaking capacity conforming to AS/NZS 60898 and forms part of the Clipsal MAX9 range.

        Three-phase submains and distribution circuits draw heavy inrush at start-up, and a lower tripping band nuisance-trips every time the load kicks in. The C curve magnetic trip band of 5 to 10 times rated current rides through that initial surge from motors, compressors and large lighting arrays. Boards feeding those loads also need the neutral switched rather than simply linked, so the circuit isolates fully at the device. The 3P+N configuration breaks all three phases and the neutral together.

        On a commercial board the MX9MN320 clips onto standard DIN rail and occupies 53mm of rail width, so a switched-neutral three-phase device fits without pushing the job into a bigger enclosure. Tunnel terminals land 1 to 16mm2 rigid or 1 to 10mm2 flexible conductors, which covers most three-phase subcircuit tails straight off the truck. The frame stays consistent across current ratings, so wiring habits and board layouts carry over between jobs. Contact position indication and clear ON/OFF signalling let a sparky read board status at a glance during fault-finding.

        Features

        • 20A rated current — rated 20A at 30 degC ambient, with a published derating table running from 23.16A at -25 degC down to 17.34A at 70 degC.
        • C curve tripping profile — magnetic tripping at 5 to 10 times rated current suits circuits with moderate inrush such as motors, HVAC plant and lighting banks.
        • 3P+N pole configuration — the MX9MN320 protects three poles and switches the neutral at the same time for full circuit isolation.
        • 6000A breaking capacity — rated 6000A Icn at 415V AC conforming to AS/NZS 60898, with a rated service breaking capacity of 6000A at 100 percent.
        • 415V AC operation — rated operational voltage of 415V AC at 50/60Hz, matched to Australian three-phase distribution boards.
        • 53mm rail width — the MX9MN320 measures 85mm high, 53mm wide and 71mm deep, with a 45mm grid distance for standard DIN rail layouts.
        • Tunnel-type terminals — top or bottom entry accepting 1 to 10mm2 flexible or 1 to 16mm2 rigid conductors, with a 14mm strip length and 2 N.m tightening torque.
        • Contact position indicator — toggle control with ON/OFF local signalling shows true contact position rather than handle position alone.
        • 20,000 operating cycles — rated for 20,000 mechanical and 20,000 electrical cycles, covering repeated switching over the life of a commercial board.
        • MAXBAR busbar compatibility — the terminal layout accepts MAX9 busbar linking for active and neutral connection across a populated board.
        • IP20 protection only — the MX9MN320 is finger-protected but not sealed, so it is only suitable for installation inside a switchboard or enclosure.

        Where to use

        • Commercial three-phase distribution boards — the MX9MN320 protects final subcircuits feeding lighting, appliances and general power across a three-phase installation.
        • HVAC and plant circuits — the C curve profile handles compressor and fan-motor starting current without tripping on every start cycle.
        • Light industrial switchboards — DIN rail mounting and 53mm width suit populated boards where rail space is already committed.
        • Three-phase lighting arrays — the MX9MN320 covers high-bay and floodlight banks where switch-on inrush from drivers and ballasts is significant.
        • Switchboard upgrades and rewires — a switched-neutral device replaces older three-pole arrangements where the neutral was linked rather than broken.
        • MAX9 board builds — boards assembled around the MAX9 range accept the breaker on shared busbar linking for a tidy, repeatable build.

        The Clipsal MX9MN320 is an overcurrent device only. It provides no earth leakage protection and does not replace an RCD or RCBO where residual current protection is required. Rated IP20, it is not weatherproof and must not be installed outside an enclosure or in damp exposed locations. It is rated for AC networks at 415V and is not intended for DC circuits such as photovoltaic array strings.

        (MX9MN320)

        Clipsal MAX9 MX9MN 3P+N circuit breakers are used to protect three-phase electrical circuits from overloads and short circuits in commercial and light industrial switchboards.

        The range is available in sizes from 6 amp through to 40 amp, covering a wide range of three-phase lighting and general power circuit requirements.

        3P+N means the breaker protects all three phases and switches the neutral at the same time for safer isolation.

        They are designed for three-phase lighting, appliances, and general power circuits where a C Curve tripping characteristic is suitable.

        Yes. They are commonly used in commercial switchboards requiring compact and reliable three-phase circuit protection.

        Yes. Sparky Direct stocks Clipsal MAX9 MX9MN 3P+N circuit breakers with fast dispatch and fast Australia-wide delivery.

        100-Day Fuss-Free Returns
        We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

        • Items must be unused, with all parts, accessories, and original packaging.
        • We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
        • Proof of purchase is required.
        • Return shipping is the responsibility of the customer.

        If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.

        All products come with a manufacturer’s or supplier’s warranty

        • Warranty starts from the Invoice Date
        • Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
        • Sparky Direct isn’t responsible for losses caused by product failure.
        • Warranties are void if products aren’t installed by a licensed electrician.

        Damaged or Faulty Goods
        If your order arrives damaged or is faulty, let us know within 24 hours.

        • Sparky Direct will pay for return shipping via an emailed return label.
        • If the fault is confirmed, we will send you a replacement item or provide a refund.

        Contact us via our chat to arrange the return.

        Exclusions
        We can’t accept returns for:

        • Items that have been installed, modified, or used
        • Clearance, End of life, Discontinued, or special order items (unless faulty)
        • All PPE Items
        • Goods returned without original packaging or proof of purchase

        How to Request a Return

        1. Contact our customer service team with your order number.
        2. Confirm it’s eligible under our return or warranty policy.
        3. Pack the item securely and return it using a trackable service.
        4. Once we receive and inspect it, we’ll process your refund or replacement.

        Warranty starts from Invoice Date

        Domestic Use: 7 Year
        Commercial Use: 7 Year
        Warranty Method: Clipsal in home warranty

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU MX9MN320
        Model # MX9MN320
        Barcode # 3606487401537
        Package Weight 0.356kg
        View Datasheet
        View Brochure
        View Manual
        TYPE VALUE
        Type Circuit Protection
        Brand Clipsal by Schneider Electric
        Range MAX9
        Colour White (RAL 9003)
        Rated Current (A) 20A
        Height (mm) 85mm
        Width (mm) 53mm
        Depth (mm) 71mm
        Mounting DIN Rail
        Voltage (V) 415V AC
        Number of Poles 3P+N
        IP Rating IP20
        Breaking Capacity 6kA
