Clipsal by Schneider Electric | MAX9 Flush Mount Enclosure 13 Pole 1 Row | IP40 Indoor

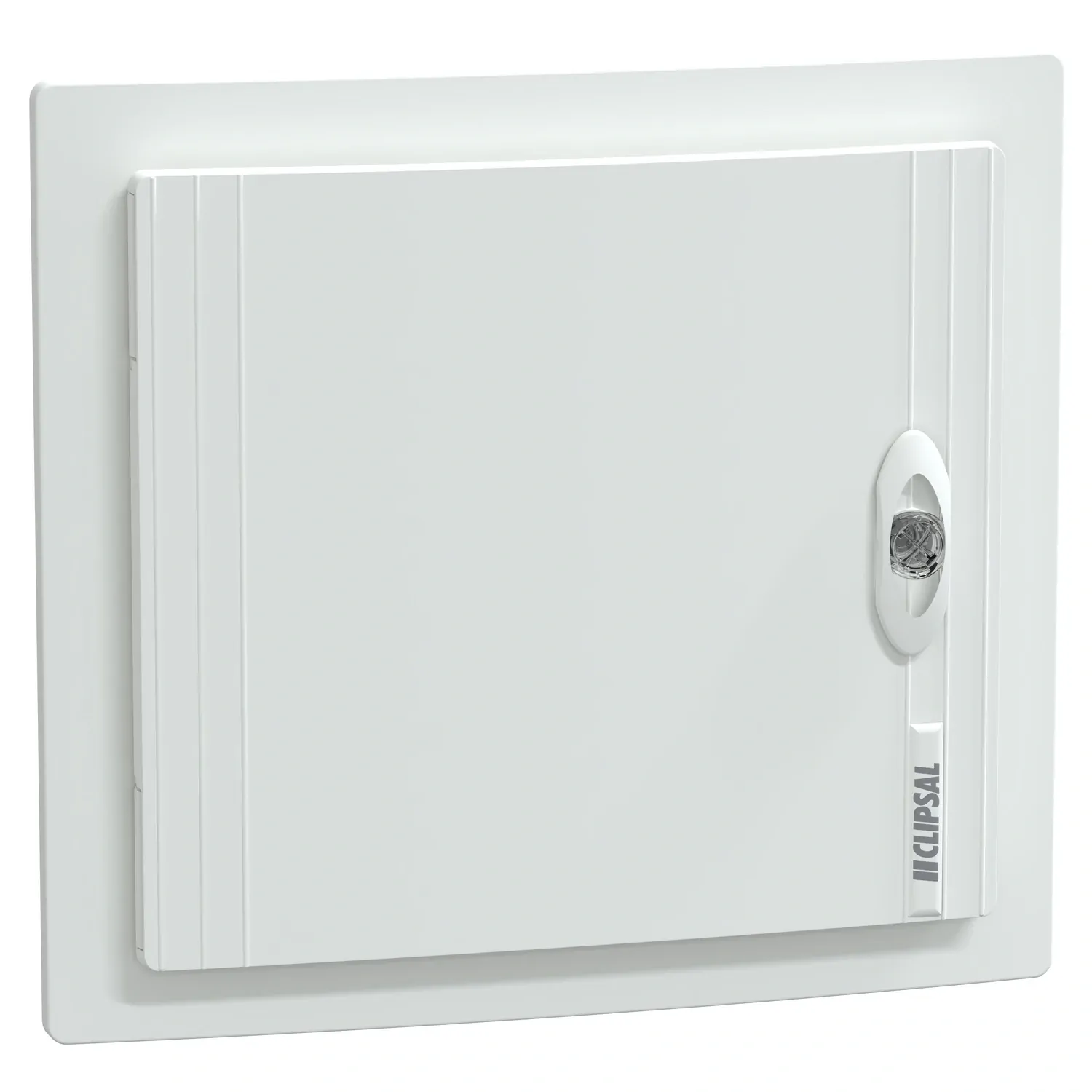

The Clipsal MX9SB113F is a MAX9 flush-mount switchboard enclosure with 13 module poles in a single row, rated IP40 for indoor distribution. It takes MAX9 devices and MAXBAR busbar systems, suiting compact residential and light-commercial boards. The MX9SB113F recesses into the wall cavity for a built-in finish and ships with a reversible door that hinges from either side.
A small board, a sub-board, or a single-purpose circuit rarely needs the height of a multi-row enclosure, but the breakers still have to land somewhere tidy. Where the board should sit flush in the wall rather than proud of it, the enclosure has to recess into a cavity. The MX9SB113F sets 13 poles in one row into the wall, giving the smallest board in the range with a built-in finish.
For a sub-board, a granny flat, or a dedicated circuit off the main board, the MX9SB113F carries a short circuit list in a board that sits flush with the wall face. The 13-pole single-row layout keeps the enclosure low and neat where a taller board would not fit. A reversible door lets the installer set the hinge to suit the wall, and the recessed body keeps the finished board flush with the surface.
Features
- 13-pole capacity — a single row of 13 18mm modules suits a small board or sub-board.
- Flush mount — the MX9SB113F recesses into the wall cavity for a built-in finish that sits flush with the wall.
- MAX9 compatible — takes MAX9 MCBs, RCBOs, and MAXBAR busbar systems for a keyed, tidy assembly.
- Reversible door — the door hinges from either side, so the MX9SB113F fits left or right-hand wall positions.
- Single-row layout — one row of 13 modules keeps the enclosure low and compact in the wall.
- Smallest in the range — the low footprint suits tight wall space where a taller board will not fit.
- White plastic body — moulded RAL 9003 white enclosure and trim give a clean face at the wall.
- MAX9 ready — suits a short domestic circuit list, a solar feed, or an EV circuit sub-board.
- IP40 rating — protected against small solid objects, suited to dry indoor and protected locations.
- Indoor use only — IP40 gives no rain or splash protection, so the MX9SB113F is not for outdoor or damp positions.
- Cavity-fit design — flush mounting needs a stud wall or cavity deep enough to take the recessed body.
Where to use
- Sub-boards — the MX9SB113F works as a compact single-row flush sub-board off a main switchboard.
- Granny flats and studios — a small board sized for a short domestic circuit list.
- Dedicated circuits — a low-pole board for a solar or EV circuit off the main board.
- Living-area boards — the flush finish suits hallways and rooms where a proud board would stand out.
- Renovation add-ons — adds a small flush board where the main switchboard is already full.
- Tight wall runs — the low single-row footprint fits where a taller board will not.
The MX9SB113F is rated IP40 and is an indoor enclosure only. It gives no protection against rain, splash, or damp, so it should not be mounted outdoors or in wet areas. It is a flush-mount enclosure that recesses into a wall cavity, so it needs a stud wall or recess deep enough to take the body, not a solid wall with no cavity. Fitting must be carried out by a licensed electrician.
