    Learn more by watching our Clipsal Schneider L5512RVF | C-Bus 12 Channel Voltage Free Relay DIN Rail 240V AC 10A video.

    Description

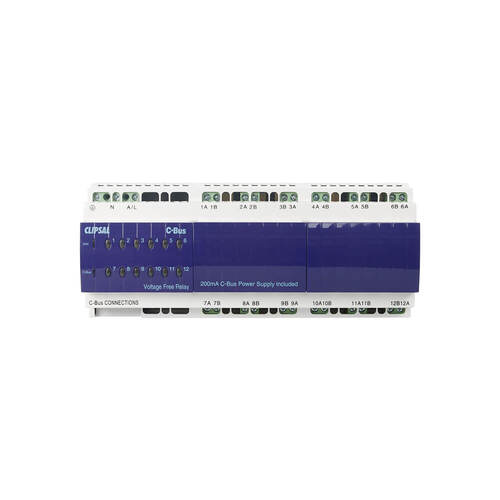

    Clipsal Schneider L5512RVF | C-Bus 12 Channel Voltage Free Relay DIN Rail 240V AC 10A

    Description:

    The Clipsal Schneider L5512RVF is an advanced 12-channel voltage-free relay for efficient electrical circuit management within your C-Bus smart home system. Operating with a nominal 220-240V AC and compatible with 50Hz and 60Hz frequencies, it ensures seamless integration into various systems. With electrical isolation up to 3.75 kV and the capacity to support up to 10 12-channel relay units per network, this device offers reliability and scalability. Its magnetically latched contacts handle loads up to 10A (2A for motors), making it a versatile solution for controlling lighting and power circuits efficiently. This relay also includes a power supply, which supplies 200mA to the C-Bus network.

    Features:

    • 12-Channel Control for comprehensive electrical system management.
    • Voltage Free Contacts suitable for a variety of applications.
    • Magnetically Latched for reliable operation without continuous power.
    • High Electrical Isolation of 3.75 kV ensures safety in all conditions.
    • Low Quiescent Power Consumption at 10W, optimizing energy efficiency.
    • Rapid Warm-Up and Restart Delay, offering immediate usability and flexibility.
    • Robust Load Rating of 10A, with a special consideration of 2A for motor loads.
    • Wide Operating Conditions, functioning optimally from 0 to 45°C and in 10 to 95% humidity.
    • 400mm CAT5E data cable included.

    FAQ:

    Q: What is the maximum number of L5512RVF relays that can be connected to a network?
    A: Up to 10 units can be connected, allowing for extensive network scalability.

    Q: How does the relay handle motor loads?
    A: It has a specific load rating for motors at 2A, ensuring safe and efficient control.

    Q: What type of connections does the L5512RVF use for integration?
    A: It utilizes RJ45 sockets for C-Bus connections, facilitating easy and secure integration into existing systems.

    Q: Can the L5512RVF be used in any environment?
    A: Designed for a wide range of operating conditions, it's suitable for environments with temperatures from 0 to 45°C and humidity levels of 10 to 95%.

    (L5512RVF)

    Warranty

    The warranty starts from the Invoice Date.

    Domestic Use: 2 Year
    Commercial Use: 2 Year
    Warranty Method: Clipsal in home warranty

    Features
    Specification Details
    Nominal supply Voltage 220-240V AC
    Frequency 50Hz(47-53), 60Hz(57-63)
    C-Bus Supply Voltage 15-36V DC 18mA 200mA
    AC Input Impedance 50kΩ @1kHz
    Electrical Isolation 3.75 kV
    Max units per network 10
    Load Rating 10A, Motor 2A
    Switch Operations <60,000 at Rated Load
    Contact Type Voltage free, magnetically latched
    Quiescent Power 10W
    Warm-up 5 Sec
    Restart Delay 0:00-42:30
    Operating Temperature 0 to 45°C
    Operating Humidity 10 to 95%
    Mains Terminals 2 x 1.5mm²(16 AWG)/1 x 2.5mm²(13 AWG)
    C-Bus Connections RJ45 Sockets
    Specifications

    These specifications and characteristics outline physical, mechanical, electrical details.

    Brand Clipsal by Schneider Electric
    SKU L5512RVF
    Barcode # 9311554336899
    Package Weight 0.710kg
    Package Width 0.110m
    Package Height 0.100m
    Package Length 0.230m
    TYPE VALUE
    Type Relay
    Brand Clipsal by Schneider Electric
    Power Supply Included
    Din Rail Yes
