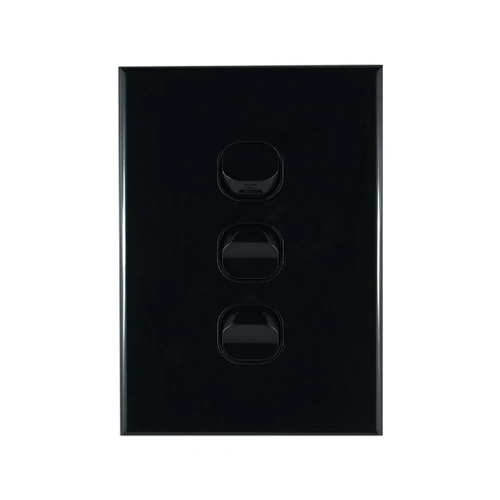

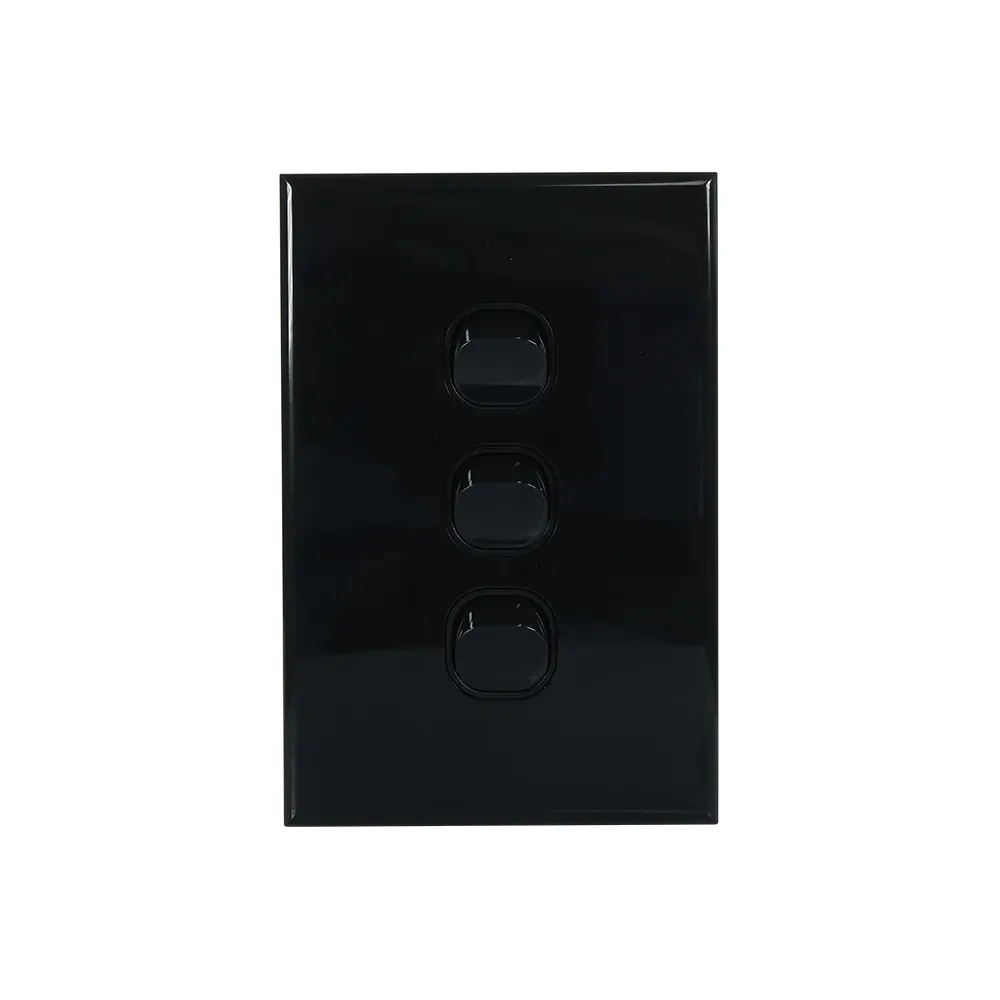

        CSG LS103VB-L | GEO 3 Gang Slimline Switch 10AX | Black

        The CSG LS103VB-L is a 3 gang vertical switch from the sleek GEO slimline range, featuring a super slim 6.5mm profile and black finish for a clean, modern look. Rated at 10AX, 250V AC, it’s perfect for standard lighting circuits in residential and commercial settings.

        Built from UV-stabilised virgin polycarbonate, this switch resists fading and wear, while silver nickel contacts, phosphor bronze springs, and brass terminals and screws provide strong, long-lasting electrical performance. Each gang supports two-way switching, making it ideal for multi-location lighting setups like hallways or staircases.

        Compliant with AS/NZS 3100:2017+A1-3 and AS/NZS 3133:2013+A1-2, the LS103VB-L blends style, function, and safety for reliable, licensed electrician installs.

        CSG LS103VB-L Features

        • 3 gang slimline design: 6.5mm low-profile plate suits contemporary spaces.
        • 10AX 250V rating: For standard light switching and general use.
        • Durable internal components: Silver nickel contacts and phosphor bronze springs.
        • Brass terminals and screws: Strong and corrosion-resistant.
        • Two-way switching support: Ideal for dual-control lighting.
        • Tested to Australian Standards: Fully compliant with AS/NZS 3100 and AS/NZS 3133.

        LS103VB-L FAQ
        Q: Can all switches be wired for two-way control?
        A: Yes, each gang supports two-way switching for multi-point control.

        Q: What are the switch plate dimensions?
        A: The faceplate is 115mm x 77mm with a 76mm x 55mm cut-out.

        Q: What materials are used inside the switch?
        A: It uses silver nickel contacts and phosphor bronze springs for reliability and longevity.

        (LS103VB-L)

        Warranty

        Warranty starts from Invoice Date
        5 Year In-House Warranty
        Warranty Method: Connected Switch Gear In-House Warranty

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Connected Switch Gear
        SKU LS103VB-L
        Barcode # 9337286003229
        Package Weight 0.100kg
        Package Width 0.120m
        Package Height 0.025m
        Package Length 0.080m
        TYPE VALUE
        Type Switch
        Brand Connected Switch Gear
        Range GEO Series
        Colour Black
        Rated Current (A) 10AX
        Height (mm) 115
        Width (mm) 77
        Number of Switches / Gangs 3
        Plate Thickness (mm) 6.5
        Rated Voltage (V) 250
