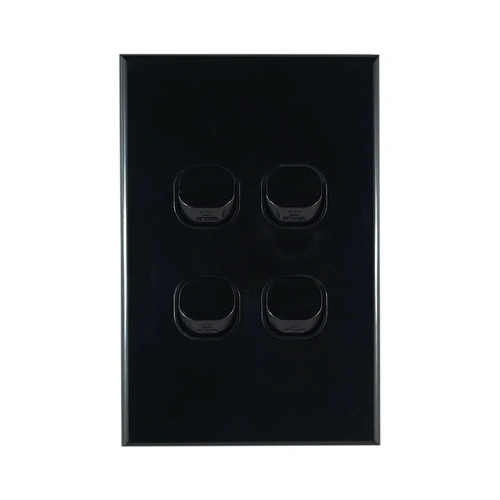

        CSG LS104VB-L | GEO 4 Gang Slimline Switch 10AX | Black

        The CSG LS104VB-L is a 4 gang vertical switch from the GEO slimline series, built for multi-point lighting control with a sleek, low-profile design. Its 6.5mm ultra-slim plate and gloss black finish offer a clean, modern aesthetic ideal for both new builds and stylish renovations.

        Rated at 10AX, 250V AC, this switch is manufactured from UV-stabilised virgin polycarbonate, ensuring long-term durability and colour stability. Inside, it features silver nickel contacts, phosphor bronze springs, and brass terminals and screws for dependable, long-lasting switching performance.

        Each gang supports two-way switching, making it perfect for stairwells, hallways, or large open spaces. Fully tested to AS/NZS 3100:2017+A1-3 and AS/NZS 3133:2013+A1-2, it offers both quality and peace of mind.

        CSG LS104VB-L Features

        • 4 gang slimline plate: 6.5mm thick with a modern gloss black finish.
        • 10AX 250V AC rating: Suitable for lighting and general switching.
        • Silver nickel and bronze internals: Reliable, high-performance contacts.
        • Brass screws and terminals: Strong, corrosion-resistant build quality.
        • Two-way switching compatible: Flexible use across multi-location lighting.
        • Australian Standards certified: Tested to AS/NZS 3100 and AS/NZS 3133.

        LS104VB-L FAQ
        Q: Can all four switches support two-way switching?
        A: Yes, each switch supports two-way wiring for versatile control.

        Q: What are the faceplate dimensions?
        A: 115mm x 77mm with a standard 76mm x 55mm cut-out.

        Q: What helps ensure the switch’s durability?
        A: Its internal components are made from silver nickel and phosphor bronze, and the UV-stabilised gloss finish resists fading.

        (LS104VB-L)

        Warranty

        Warranty starts from Invoice Date

        5 Year In-House Warranty
        Warranty Method: Connected Switch Gear In-House Warranty

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Connected Switch Gear
        SKU LS104VB-L
        Barcode # 9337286003236
        Package Weight 0.100kg
        Package Width 0.120m
        Package Height 0.025m
        Package Length 0.080m
        TYPE VALUE
        Type Switch
        Brand Connected Switch Gear
        Range GEO Series
        Colour Black
        Rated Current (A) 10AX
        Height (mm) 115
        Width (mm) 77
        Number of Switches / Gangs 4
        Plate Thickness (mm) 6.5
        Rated Voltage (V) 250
