        HAGER ADC216B | 16Amp 10 kA Single Pole RCBO
        $80.25 $72.95 ex. GST

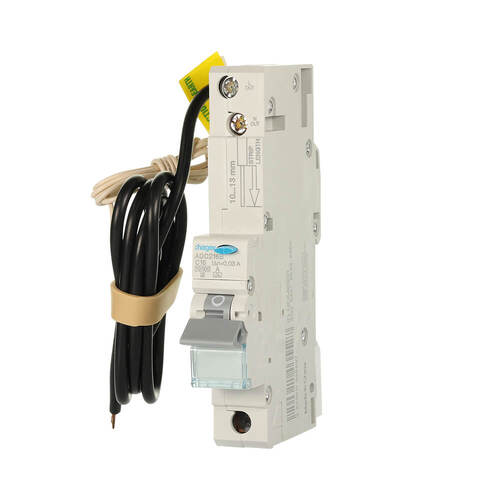

        HAGER ADC216B | 16Amp 10 kA Single Pole RCBO

        The HAGER ADC216B is a 16Amp single-pole RCBO (Residual Current Circuit Breaker with overcurrent protection) designed for reliable protection in residential and commercial electrical systems. With a breaking capacity of 10kA and compliance with IEC 60898-1, this RCBO ensures safety and performance.

        The ADC216B features a C-curve, suitable for various load types, and offers 30mA residual operating current for enhanced protection against electric shocks. It operates on a 230/240V AC supply and fits DIN rail type O for easy installation.

        HAGER ADC216B Features

        • High Breaking Capacity: Rated short circuit breaking capacity of 10kA.
        • Reliable Protection: 16A rated current with 30mA residual operating current.
        • Compliant with Standards: Meets IEC 60898-1 and IEC 61009-1 standards.
        • C-Curve: Suitable for various load types.
        • Easy Installation: DIN rail type O mounting with top and bottom screw terminals.

        ADC216B FAQ

        Q: What is the breaking capacity of this RCBO?
        A: The HAGER ADC216B has a rated short circuit breaking capacity of 10kA.

        Q: What type of protection does this RCBO provide?
        A: It provides both overcurrent and residual current protection with a 30mA residual operating current.

        Q: Is this RCBO compliant with international standards?
        A: Yes, it complies with IEC 60898-1 and IEC 61009-1 standards.



        Warranty starts from Invoice Date

        Domestic Use: 2 Year
        Commercial Use: 2 Year
        Warranty Method: Return to Sparky Direct

        Specification Details
        Model ADC216B
        Number of Protected Poles 1
        Number of Poles 1 P
        Type of Pole 1 P
        Fixing Mode DIN rail type O (symmetrical)
        Curve C
        Number of Modules 1
        Rated Short Circuit Breaking Capacity Icn AC 10 kA
        Rated Operational Voltage Ue 230 / 240 V
        Type of Supply Voltage AC
        Frequency 50/60 Hz
        Rated Insulation Voltage 250 V
        Rated Impulse Withstand Voltage 4000 V
        Rated Residual Operating Current 30 mA
        Rated Current 16 A
        Withstand Not Tripping on 8-20 μs Wave 0.25 kA
        Breaking and Opening Capacity 6000 A
        Min/Max Threshold Value of the AC Thermal Operation 1.13 / 1.45 In
        Magnetic Regulating Current 5 / 10 In
        Electric current / temperature -25°C ~ 70°C
        20.81A ~ 13.6A
        Depth of Installed Product 70 mm
        Height of Installed Product 115 mm
        Width of Installed Product 17.8 mm
        Total Power Loss under IN 4.9 W
        Power Loss per Pole at In 2.6 W
        Electric Endurance in Number of Cycles 2000
        Number of Mechanical Operations 10000
        Type of Top Connection for Modular Devices With screw
        Type of Bottom Rail Clip for Modular Devices Metallic isolated
        Type of Bottom Connection for Modular Devices BIconnect
        Top Removability for Modular Devices No
        Bottom Removability for Modular Devices No
        Suitable for Flush-Mounting Yes
        Connection Cross-Section at Output with Screw (Flexible Conductor) 1 / 16 mm²
        Connection Cross-Section at Output with Screw (Massive Conductor) 1 / 25 mm²
        Connection Cross-Section for Rigid Conductor (Upstream Terminals with Screws) 1 / 16 mm²
        Downstream Cage Clamp Delivery Status Opened
        Upstream Cage Clamp Delivery Status Opened
        Length of Conductors Used for the Heating Test 1 m
        Conductor Cross-Section Used for Heating Test 2.5 mm²
        Type Selective No
        Can be Accessorized No
        With Transparent Product Label Holder Yes
        Standard Text IEC 61009-1
        European Directive WEEE Concerned
        Protection Index IP IP20
        Residual Current Type A
        REACH Conform No
        RoHS Conform Yes
        Halogen Free No
        Operating Temperature -5…40 °C
        Degree of Pollution 2
        Class of Energy Limitation I²t 3
        Altitude 2000 m
        Air Humidity Protection 95% / 55°C
        Storage/Transport Temperature -40…70 °C

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Hager Electrical
        SKU ADC216B
        Barcode # 3250611035527
        Shipping Weight 0.2100kg
        Shipping Width 0.040m
        Shipping Height 0.080m
        Shipping Length 0.150m
        Shipping Cubic 0.000480000m3
        TYPE VALUE
        Type Circuit Protection
        Brand Hager Electrical
        Rated Current (A) 16
        Mounting Din Rail
        Curve C
        Overcurrent trip characteristic C Curve
        Voltage (V) 240V
        Residual Current 30mA
        Number of Poles 1P
        Rated Voltage 230/240V AC
        Breaking Capacity 10kA
