3.5 kW Cooling
3.7 kW Heating

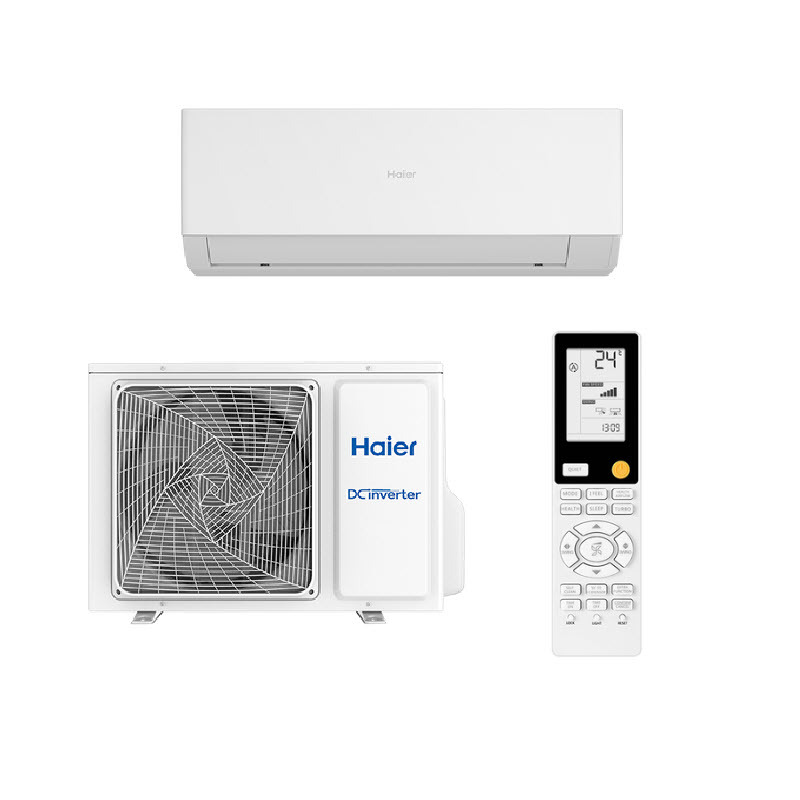

Haier Quartz: The Ultimate Blend of Style, Comfort, and Efficiency
When it comes to air conditioning, Australians deserve nothing but the best. Enter Haier Quartz, the perfect combination of style, efficiency, and comfort.
Self-cleaning technology: Your Quartz air conditioner will continue working efficiently to produce clean air, with a Self-clean function that flushes away dirt from the evaporator and reduces the growth of mould and bacteria. This process also cleans the outdoor unit, helping to clear salt and debris that can lead to corrosion.
Smart control: Use the SmartHQ™ app to turn on your air conditioner from anywhere to ensure the perfect temperature when you get home, or use your Wi-Fi-enabled Quartz with Google Home or Amazon Alexa voice control.
Coanda Plus airflow: Engineered to send airflow further, an aerodynamic louvre design helps to circulate air evenly throughout your room for total comfort.
Easy installation and maintenance: Designed to help your installer get the job done fast, Quartz air conditioners come with simple positioning specifications. The control board and motor are also easily accessible for maintenance.
Sleep mode: Sleep mode supports your ideal sleeping environment, raising, lowering or maintaining the temperature throughout the night for maximum comfort.
Turbo mode: With the Turbo function, the motor and fan work more frequently, so you can enjoy a cool or warm room within a much shorter time.
(AS35QCEHRA-SET)
Warranty starts from the Invoice Date
5-Year Warranty
The Haier '5-Year Parts and Labour' warranty applies to all Haier split, multi-split and ducted air conditioners professionally installed in domestic premises in Australia, so when you choose Haier, you do so with the confidence of knowing you have many years of worry-free comfort ahead.
Category | Specification |
---|---|
CAPACITY | |
Cooling capacity (kW): | 3.5kW |
Heating capacity (kW): | 3.7kW |
CONSUMPTION | |
COP: | 4.30 / 4.26 |
EER: | 4.22 / 4.17 |
HSPF-RES (Hot/Average/Cold): | 5.004 / 4.542 / 3.968 |
Star-Cool (Hot/Average/Cold): | 8.5 / 6.0 / 7.0 |
Star-Heat (Hot/Average/Cold): | 3.5 / 3.0 / 2.0 |
TCSPF-RES (Hot/Average/Cold): | 10.253 / 7.910 / 8.612 |
FEATURES | |
Blue fin coils: | true |
Built-in Wi-Fi smart control: | true |
Compressor type: | Rotary |
Concealed LED display: | true |
DRED (Demand Response) ready: | true |
Google Home: | true |
Infrared remote control: | true |
Refrigerant factory charge: | 1.02kg |
Standard controller: | YR-HJ |
INSTALLATION | |
Indoor unit model: | AS35QCEHRA |
Indoor unit weight: | 10kg |
Liquid line: | 6.35mm |
Maximum pipe run: | 15m |
Outdoor unit model: | 1U35MAEFRA |
Outdoor unit weight: | 30kg |
Suction line: | 9.52mm |
PERFORMANCE | |
Airflow: | 210L/S |
DC inverter: | true |
R32 Refrigerant: | true |
Sound power SWL (outdoor): | 63dBA |
Sound pressure SPL (indoor): | 40 / 36 / 32 / 22dBA |
Sound pressure SPL (outdoor): | 52dBA |
Working temperature cooling: | -10℃ ~ 46℃ |
Working temperature heating: | -15℃ ~ 24℃ |
POWER REQUIREMENTS | |
Supply frequency: | 50Hz |
Supply voltage: | 220-240V |
PRODUCT DIMENSIONS | |
Indoor unit depth : | 217mm |
Indoor unit height: | 307mm |
Indoor unit width: | 875mm |
Outdoor unit depth : | 275mm |
Outdoor unit height : | 553mm |
Outdoor unit width: | 800mm |
WARRANTY | |
Parts and labour: | 5 years |
These specifications and characteristics outline physical, mechanical, electrical details.
Brand | Haier |
SKU | AS35QCEHRA-SET |
TYPE | VALUE |
---|---|
Type | Air Conditioning |
