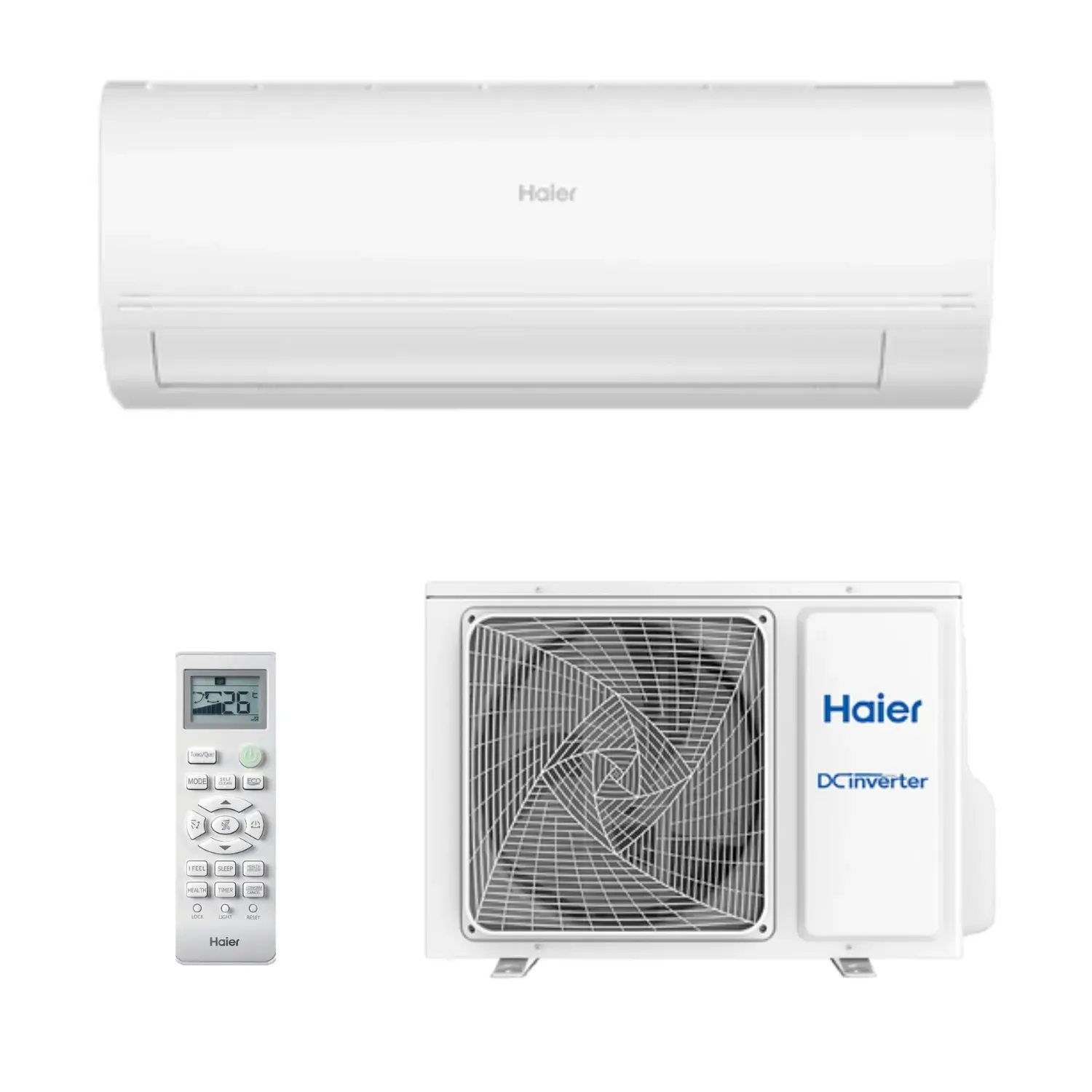

The Haier AS35TBMHRA-SET is a wall mounted reverse cycle split system rated 3.5kW cooling and 3.7kW heating, running R32 refrigerant under DC inverter control. The AS35TBMHRA-SET pairs the AS35TBMHRA indoor head with the 1U35MAMFRA outdoor unit on a single phase 220 to 240V supply. It belongs to the Haier Tempo series and carries a 5 year parts and labour warranty.
A 3.5kW head is the standard specification for a bedroom or a small living area, and undersizing appears as a system running continuously through every summer afternoon. Older non-inverter systems alternate between full output and off, overshooting the setpoint and consuming additional energy in the process. The DC inverter compressor modulates speed continuously instead of switching, maintaining the room closer to the temperature selected. A published EER of 3.70 and COP of 3.70 gives a buyer a comparable figure rather than a marketing claim.
For the installing tradesperson, this capacity represents the straightforward end of the range. An MCA of 7.0A against a 10A suggested breaker keeps the circuit within standard domestic practice, and the power cable terminates at the outdoor unit. At 28kg outdoor and 9kg indoor, positioning the units requires no specialist lifting equipment. Pipe runs extend to 15 metres with 10 metres of height difference, precharged to 7 metres.
Installation and refrigerant work must be carried out by a licensed installer holding an ARC refrigerant handling licence. The system is rated for single phase 220 to 240V supply only, and the power cable terminates at the outdoor unit rather than the indoor head. Operation outside minus 10 to 46 degrees Celsius on cooling falls beyond the published range.
(AS35TBMHRA-SET)
The Haier AS35TBMHRA-SET works well in small to medium areas such as bedrooms, home offices, and compact living rooms where steady, efficient heating and cooling is needed.
Yes, it includes Wi-Fi as standard, allowing control through the SmartHQâ„¢ app or by voice using Google Home or Alexa.
The unit features Intelligent Airflow and Coanda Plus, helping direct cool air upward and warm air downward for balanced coverage.
Yes, it’s designed to operate reliably in the high heat and cooler conditions experienced across Australian climates.
Turbo Cooling delivers rapid temperature drops when you need an immediate boost.
Yes, Sparky Direct stocks the Haier AS35TBMHRA-SET. Air conditioners can be picked up from our warehouse or shipped to select locations. Just enter your postcode at checkout to see if delivery is available to your area.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from the Invoice Date
5-Year Warranty
The Haier '5-Year Parts and Labour' warranty applies to all Haier split, multi-split and ducted air conditioners professionally installed in domestic premises in Australia, so when you choose Haier, you do so with the confidence of knowing you have many years of worry-free comfort ahead.
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Haier |
| SKU | AS35TBMHRA-SET |
| Model # | AS35TBMHRA-SET |
| TYPE | VALUE |
|---|---|
| Type | Air Conditioning |
| Brand | Haier |
| Range | Tempo |
| Indoor Unit (mm) | 805x200x292 |
| Outdoor Unit (mm) | 800x280x550 |
| Power Source | Single Phase 50Hz |
| Mounting | Wall Mounted |
| Voltage (V) | 220-240 |
| Pipe Size (Gas) OD mm (inch) | 9.52 (3/8) |
| Pipe Size (Liquid) OD mm (inch) | 6.35 (1/4) |
| Breaker Size (A) | 10 |
| Cooling Capacity (Rated) | 3.5kW |
| Heating Capacity (Rated) | 3.7kW |
| Outdoor Unit Weight (kg) | 28 |
| Indoor Unit Weight (kg) | 9 |
| Refrigerant Type | R32 |
