Description:

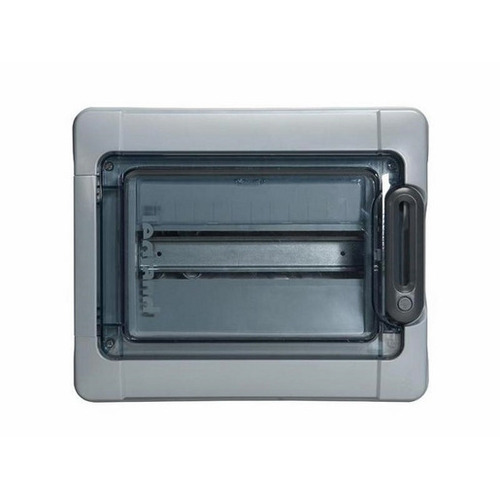

Upgrade your home's electrical system with the Legrand 601981, a 12 Module Surface Mount Weatherproof Switch Board that sets the benchmark for durability and adaptability. Dive into the benefits and find answers to frequently asked questions below.
Benefits:
Extreme Durability: Constructed with a Class II insulated enclosure and IK09 shock-resistant polystyrene material, this switchboard ensures long-lasting performance, even in challenging conditions.
Versatile Configuration: The fully reversible door and enclosure, along with removable chassis and faceplates, offer versatility in installation, adapting to your specific requirements.
Modular Flexibility: Featuring a 2-position rail for modular products and moulded cases, this switchboard provides adaptability to evolving electrical needs.
Efficient Cable Management: With a 150mm spacing between rails, the switchboard facilitates efficient cable organization, maintaining a tidy and organized electrical setup.
Enhanced Security: The lockable door handle, sealable cover, and faceplate enhance security, preventing unauthorized access and ensuring the safety of your electrical components.
IP2X Earth and Neutral Terminal Blocks: Supplied with IP2X Earth and Neutral terminal blocks, the switchboard guarantees a secure and reliable electrical connection.
Weatherproof Design: The switchboard is part of the Weatherproof PLEXO3 IP65 cabinets, ensuring its resilience against the elements for both indoor and outdoor installations.
Reversible Door and Cabinet: Both the door and cabinet are fully reversible, providing flexibility in installation and catering to various spatial constraints.
Tamper-Evident Cover: The tamper-evident cover adds an extra layer of security, alerting you to any unauthorized attempts to access the switchboard.
FAQ:
Q: Can I install the Legrand 601981 outdoors?
A: Yes, the switchboard is part of the Weatherproof PLEXO3 IP65 cabinets, making it suitable for both indoor and outdoor installations.
Q: How do I reverse the door and cabinet if needed?
A: The door and cabinet are designed to be totally reversible. Please refer to the product manual for detailed instructions on the reversal process.
Q: Can I use non-modular products with this switchboard?
A: Yes, the switchboard accommodates perforated plates and plain faceplates, allowing for the mounting of non-modular products as needed.
Q: Are direct perforation entry glands included?
A: Yes, the switchboard comes with direct perforation entry glands, ensuring convenient and secure cable entry.
Elevate your electrical control with Legrand 601981, a 12-module weatherproof switchboard that combines durability, adaptability, and enhanced security. Invest in a solution that goes beyond expectations, ensuring the longevity and efficiency of your home's electrical setup.
(601981)
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
Specifications | Details |
---|---|
Number of Rows | 1 |
Number of Modules | 12 |
Max. Permitted Current | 63A |
Short Circuit Current | 10kA |
Permissible Loads | 40N per Row |
Rated Operating Voltage | 400V AC ~ 50/60Hz |
Rated Insulation Voltage | 400V AC ~ 50/60Hz |
Operating Temperature | -25°C to +40°C |
Self Extinguishing | 650°C |
Protection Rating | IP65/IK09 |
Standards | IEC 60 439-3, IEC 60 695-2-11, IEC 62 262, IEC 62 208, RoHS, WEEE, REACH |
Material | ABS |
Material housing | Polycarbonate |
Colour | Grey |
Mounting method | Screw and snap-on mounting |
