        Learn more by watching our Major Tech MT1020 | 180MHz Dual Channel Oscilloscope video.

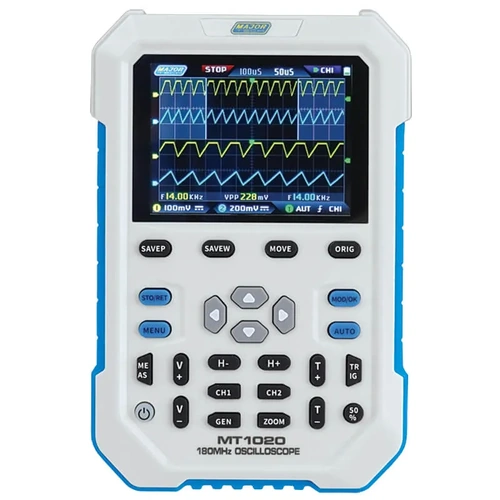

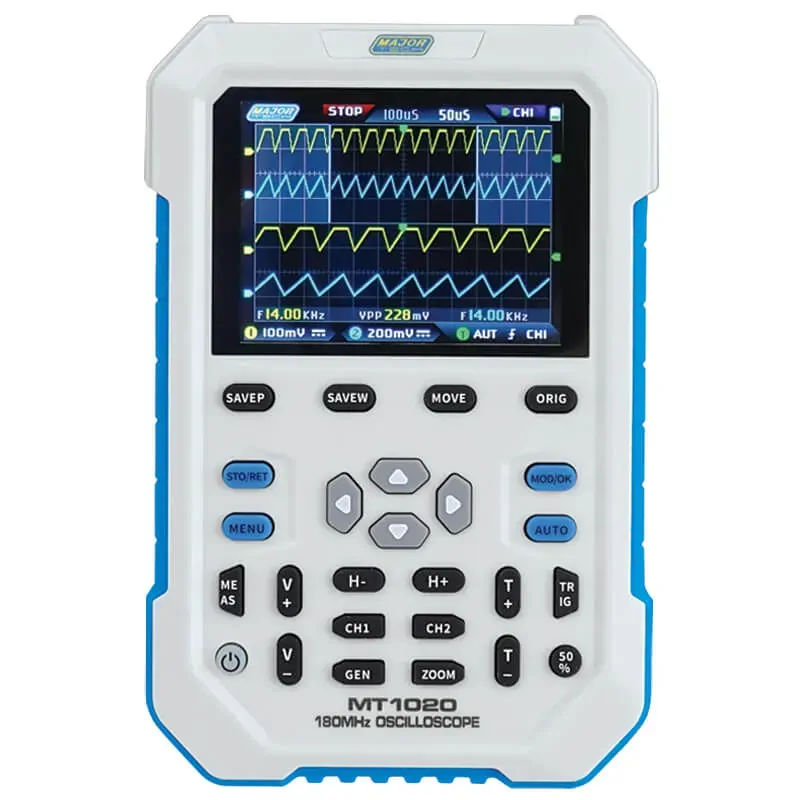

        Major Tech MT1020 | 180MHz Dual Channel Oscilloscope

        The Major Tech MT1020 is a compact, high-performance handheld oscilloscope designed for real-time signal analysis. It has a 500MSPS sampling rate and 180MHz bandwidth, delivering fast and accurate waveform measurements. It also doubles as a digital signal generator, producing 14 waveform types, including sine waves up to 20MHz. Perfect for troubleshooting, testing, and electrical diagnostics.

        The 2.8-inch IPS LCD provides sharp visuals with digital phosphor technology, making it easy to analyze waveforms. A waveform refresh rate of 50,000 wfm/s helps capture even low-probability anomalies, while the ZOOM time base function simplifies protocol analysis. It also features adjustable bandwidth limits, adaptive trigger suppression, and manual cursor measurements for fine-tuned readings.

        A 3000mAh rechargeable battery powers the device for up to 3.5 hours, with fast charging via 5V 2A allowing an 80% charge in just one hour. The USB data export function makes it easy to store and transfer waveform data.

        Major Tech MT1020 Features

        • Dual-Channel 180MHz Bandwidth – Captures detailed signal data with a 500MSPS sampling rate.
        • Built-in Signal Generator – Generates 14 waveform types, including sine waves up to 20MHz.
        • High-Contrast IPS LCD – 2.8-inch display with digital phosphor technology for clear waveform visuals.
        • Fast Waveform Refresh Rate – Captures up to 50,000 wfm/s to detect anomalies.
        • Adjustable Bandwidth & Trigger Modes – Supports YT, XY, and rolling time base functions.
        • USB Data Export & Storage – Saves up to 250 waveform sets and 90 screenshots.
        • Long-Lasting Battery – 3000mAh capacity for up to 3.5 hours of operation, with fast charging support.

        MT1020 FAQ:

        Q: What is the highest signal frequency this oscilloscope can analyze?
        A: It has a 180MHz bandwidth and supports sine waves up to 20MHz with its built-in signal generator.

        Q: How long does the battery last?
        A: The 3000mAh battery lasts up to 3.5 hours on a full charge.

        Q: Can I save and transfer waveforms?
        A: Yes, it can store up to 250 waveform sets and 90 screenshots, and supports USB data export.

        (MT1020)

        100-Day Fuss-Free Returns
        We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

        • Items must be unused, with all parts, accessories, and original packaging.
        • We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
        • Proof of purchase is required.
        • Return shipping is the responsibility of the customer.

        If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.


        All products come with a manufacturer’s or supplier’s warranty

        • Warranty starts from the Invoice Date
        • Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
        • Sparky Direct isn’t responsible for losses caused by product failure.
        • Warranties are void if products aren’t installed by a licensed electrician.

        Damaged or Faulty Goods
        If your order arrives damaged or is faulty, let us know within 24 hours.

        • Sparky Direct will pay for return shipping via an emailed return label.
        • If the fault is confirmed, we will send you a replacement item or provide a refund.

        Contact us via our chat to arrange the return.


        Exclusions
        We can’t accept returns for:

        • Items that have been installed, modified, or used
        • Clearance, End of life, Discontinued, or special order items (unless faulty)
        • All PPE Items
        • Goods returned without original packaging or proof of purchase

        How to Request a Return

        1. Contact our customer service team with your order number.
        2. Confirm it’s eligible under our return or warranty policy.
        3. Pack the item securely and return it using a trackable service.
        4. Once we receive and inspect it, we’ll process your refund or replacement.

        Warranty starts from Invoice Date

        Domestic Use: 2 Year
        Commercial Use: 2 Year
        Warranty Method: Return to Sparky Direct

        All Major Tech Meters sold through Sparky Direct are covered by the manufacturer’s warranty. If you believe your meter is faulty or defective, you may request an assessment under this warranty policy.

        How to Lodge a Warranty Claim

        To initiate a warranty claim:

        1. Return to Sparky Direct
          Ship the meter back to Sparky Direct along with:

          • A copy of your proof of purchase
          • A brief description of the issue
          • Your contact details

          Please ensure the unit is securely packaged to prevent damage in transit.

        2. Forwarded for Assessment
          Upon receiving your meter, we will forward it to Major Tech’s authorised service centre for inspection, testing, and calibration.

        Assessment Process

        Major Tech’s service lab will assess the returned unit to determine:

        • Whether the fault is due to a manufacturer’s defect (covered under warranty), or
        • If the issue is the result of user error or no fault is found.

        Outcomes

        • If approved under warranty: The product will be repaired or replaced at no cost to you.
        • If not covered under warranty: The lab may offer repair services, which will be quoted and billed directly to you by the service provider.

        Important Notes

        As Major Tech’s service labs are independent providers, Sparky Direct cannot govern or guarantee turnaround times or any costs incurred for repairs outside of warranty coverage.

        Please allow up to 7-14 working days for the return of your product.

        Function Range
        Number of Channels 2
        Analogue Bandwidth 180MHz
        Sampling Rate 500MS/s
        Input Coupling AC/DC
        Rise Time 2.5 Seconds
        Storage Depth 120Kpts
        Input Impedance 1MΩ to 18PF
        Vertical Sensitivity 5mV to 10V (1X)
        Time Base Range 5nS to 50s
        Trigger Detection Digital Trigger
        Trigger Mode Auto / Single / Normal
        Trigger Edge Rising / Falling
        Measurement Range 40mV to 80V (1X)
        Screenshot Storage 90
        Capture Signal 500
        Signal Generator 14 Standard Functioning Signals
        Waveform Storage 250 Groups
        Parameter Measurement 12 Kinds
        Cursor Measurement Frequency / Period / Amplitude
        Screen Size 71mm / 2.3 inch
        Screen Resolution 320 × 240 Pixel
        Display Technology IPS Full View
        Battery Capacity 3000mAh (Rechargeable)
        Standby Time 3.5 Hours on Full Charge
        Dimensions 135 × 90 × 40mm

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Major Tech
        SKU MT1020
        Barcode # 6008229041006
        Package Weight 0.478kg
        Package Width 0.133m
        Package Height 0.073m
        Package Length 0.234m
        TYPE VALUE
        Type Oscilloscope
        Brand Major Tech
        Channels 2
        Display Size 2.3"
        Dimensions 135 x 90 x 40mm
        Sampling Rate 500MS/s
        Coupling Method AC/DC
