Learn more by watching our Major Tech MT329 | Handheld Multifunction Installation Tester CAT IV 600V | Bluetooth video.

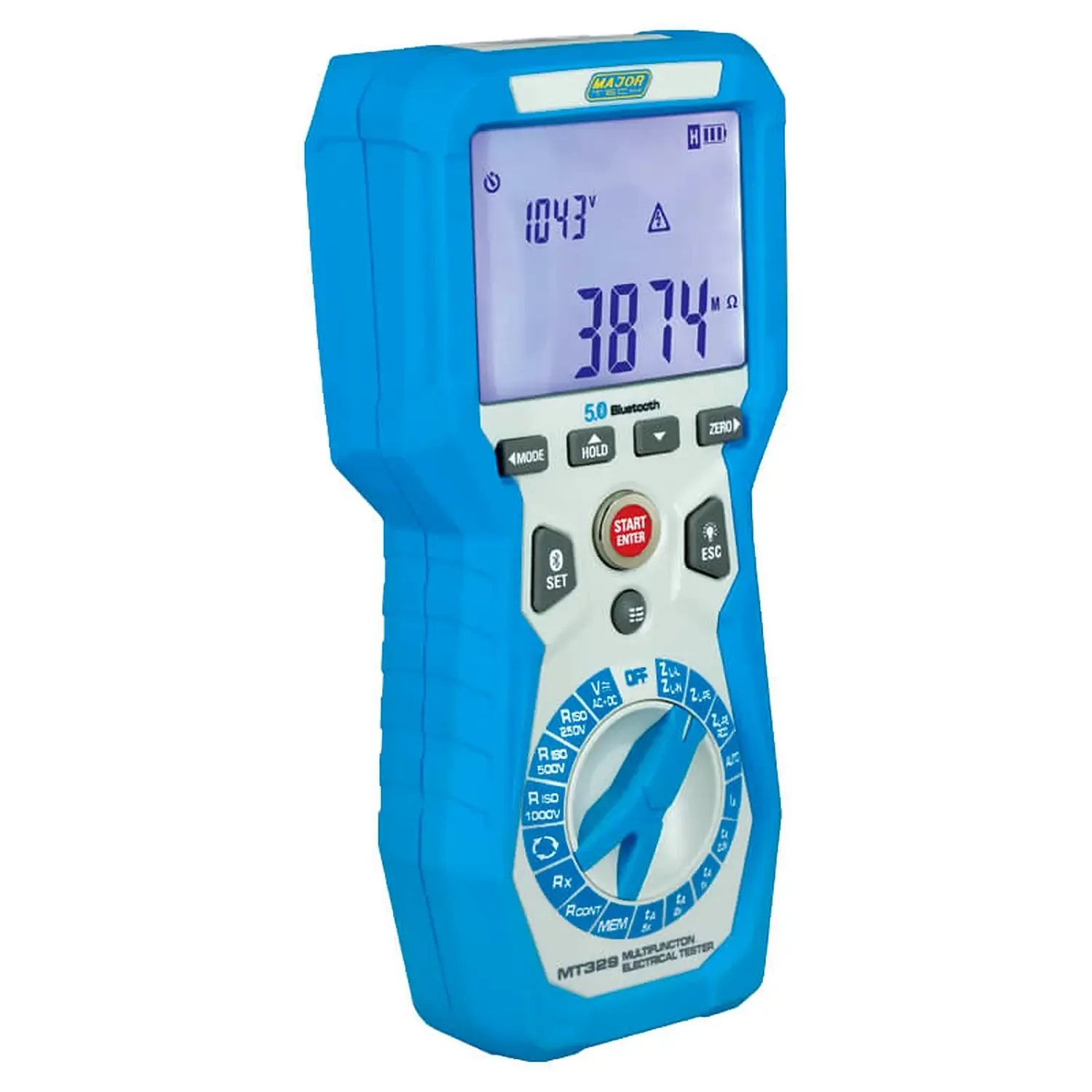

The Major Tech MT329 is a handheld multifunction installation tester combining insulation, continuity, resistance, loop impedance, RCD, voltage, and phase sequence testing, rated CAT IV 300V and CAT III 600V to IEC 61010-1. It tests insulation at 250V, 500V, and 1000V up to 4000MΩ, and measures loop impedance with an 18.3A high current method or a no-trip method for RCD-protected circuits. The MT329 runs trip time, trip current, and auto test sequences on Type A, Type AC, and Type B RCDs, with touch voltage and earth resistance readings. Results save to internal memory and transfer over Bluetooth to the Major Tech Meter-X app on iOS and Android.
Installation verification runs the same sequence on every job: insulation, continuity, loop impedance, and RCD performance. Each of those tests once meant its own instrument, and swapping between separate testers slows the board work and doubles the calibration list. The MT329 puts the full sequence behind one rotary selector, from 1000V insulation tests to no-trip loop measurements on circuits protected by RCDs rated 30mA and above. A backlit multi-LCD shows loop impedance, prospective fault current, and supply voltage together instead of one figure at a time.
For sparkies doing periodic verification and compliance work, the RCD auto test runs the trip time, trip current, touch voltage, and earth resistance sequence on its own. The operator only resets the RCD between trips. Results file into a memory of 1000 measurement sets across 10 banks and download to the Meter-X app over Bluetooth, so board results reach the report without typing them up again. The magnetic strap holds the tester on the panel for two-handed probe work, the design suits one-handed use, and PSC and PEFC figures come straight from the measured loop impedance and supply voltage.
The MT329 is a tool for licensed electricians and qualified personnel; loop and RCD testing energises test currents on live installations and follows safe work procedures. Do not measure circuits where voltage exceeds 550V, and fit the protective caps to the test leads before working in CAT III or CAT IV environments. Insulation testing requires the circuit under test to be de-energised, and the tester discharges the test voltage automatically after each measurement.
(MT329)
It is used for full electrical testing, helping sparkies check installs and find faults.
Yes. It combines several test functions into one unit, reducing the need for separate tools.
Yes. It covers the main tests needed for installation verification.
Yes. The backlit screen makes it easier to see in low light areas.
Yes. It is built for regular use across commercial and industrial jobs.
Yes. Sparky Direct stocks this tester with fast dispatch and delivery.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 2 Year
Commercial Use: 2 Year
Warranty Method: Return to Sparky Direct
All Major Tech Meters sold through Sparky Direct are covered by the manufacturer’s warranty. If you believe your meter is faulty or defective, you may request an assessment under this warranty policy.
To initiate a warranty claim:
Return to Sparky Direct
Ship the meter back to Sparky Direct along with:
Please ensure the unit is securely packaged to prevent damage in transit.
Forwarded for Assessment
Upon receiving your meter, we will forward it to Major Tech’s authorised service centre for inspection, testing, and calibration.
Major Tech’s service lab will assess the returned unit to determine:
As Major Tech’s service labs are independent providers, Sparky Direct cannot govern or guarantee turnaround times or any costs incurred for repairs outside of warranty coverage.
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Major Tech |
| SKU | MT329 |
| Model # | MT329 |
| Barcode # | 6008229042461 |
| Package Weight | 5.700kg |
| TYPE | VALUE |
|---|---|
| Type | Multifunction Testers |
| Brand | Major Tech |
| Height (mm) | 210 |
| Width (mm) | 97 |
| Depth (mm) | 68 |
