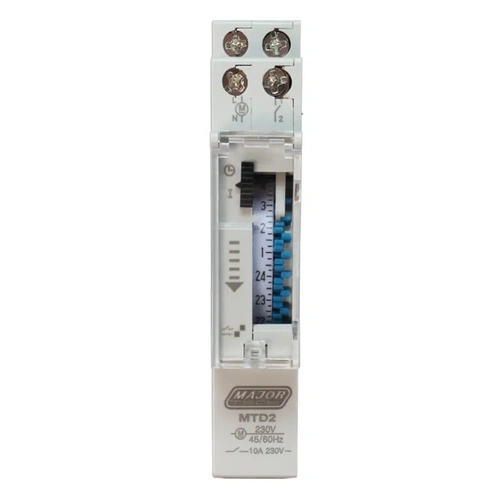

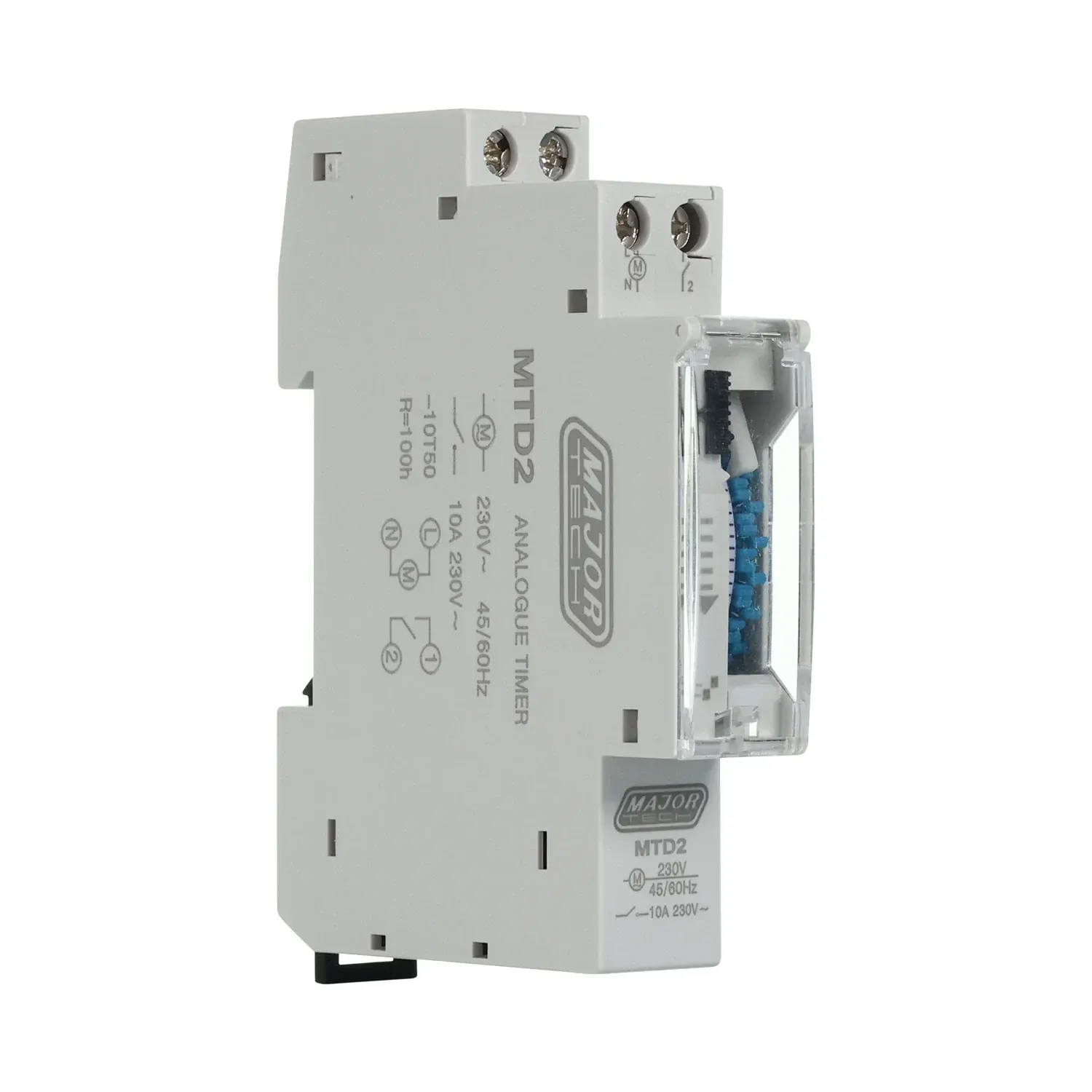

        Major Tech MTD2 | 24 Hour Analogue Timer 16A | 100 Hour Backup

        The MTD2 is a compact 24-hour analogue timer for simple and reliable load control in lighting, heating, pumps, and general automation. It features 96 programmable segments for 15-minute switching intervals and is rated for 16A resistive or 4A inductive loads at 230V AC.

        Designed for DIN rail mounting, it includes a 100-hour battery backup, manual override switch, and ultra-low 0.5W standby power draw. Ideal for indoor installations in switchboards, pool systems, or geyser control, it delivers day-to-day performance with ±1 sec/day accuracy and quiet mechanical operation.

        MTD2 Features

        • Switching Capacity: 16A resistive / 4A inductive at 230V AC
        • Programmable Segments: 96 pins with 15-minute interval control
        • Battery Backup: 100-hour reserve to retain settings
        • Manual Override: Switches between automatic and permanent on/off
        • Compact Design: 90 x 66 x 17.5mm for tight switchboard installs
        • Low Power Use: Only 0.5W in standby, IP20 rated for indoor use

        MTD2 FAQ

        Q: Will it keep time during a blackout?
        A: Yes, the 100-hour battery backup preserves all settings.

        Q: Can I manually switch loads without changing the timer?
        A: Yes, the override lets you switch between automatic and manual modes instantly.

        Q: Is it suitable for inductive loads like motors?
        A: Yes, it supports up to 920W constant inductive loads at 230V AC.

        (MTD2)

        Warranty

        Warranty starts from the Invoice Date.

        1 Year Limited Warranty
        Warranty Method: Return to Sparky Direct

        Features
        Specification Details
        Switching Capacity 16A (resistive) / 4A (inductive) at 230V AC
        Power Consumption 0.5W
        Timing Accuracy ±1 second per day @ 22°C
        Battery Backup ±100 hours
        Dial Type Daily: 24 hours / 96 pins
        Minimum Unit of Time 15 minutes
        Operating Temperature -10°C to +50°C
        IP Rating IP20
        Dimensions 90 × 66 × 17.5 mm
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Major Tech
        SKU MTD2
        Model # MTD2
        Barcode # 6008229003929
        Package Weight 0.010kg
        Package Width 0.100m
        Package Height 0.023m
        Package Length 0.068m
        TYPE VALUE
        Type Analogue Time
        Brand Major Tech
        Battery Backup ±100 hours
        Switching Capacity 16A (resistive) at 230V AC
        Power Consumption (W) 0.5W
        Timing Accuracy ±1 second per day @ 22°C
        Dial Type Daily: 24 hours/96 pins
        Minimum Unit of Time 15 Minutes
