        Learn more by watching our Major Tech MTi15 | Thermal Imager 160x120px 3.5in LED video.

        Major Tech | Thermal Imager 160x120px 50Hz Wi-Fi | 7.5mm Manual Focus Lens

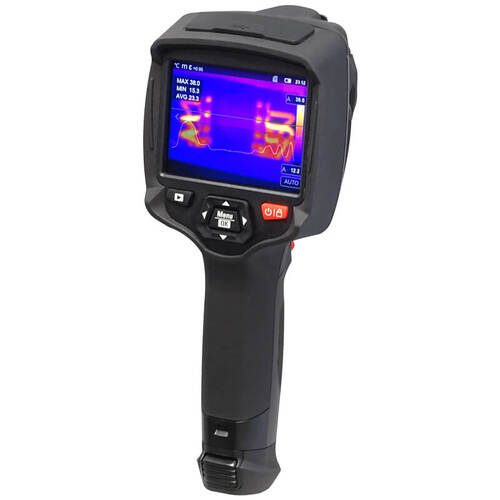

        The Major Tech MTi15 is a handheld thermal imager with a 160 x 120 pixel detector that reads 19,200 real temperature points per frame at a 50Hz image frequency. It measures object temperatures from -20°C to 150°C on the low range and 0°C to 650°C on the high range, with rated accuracy of ±2°C or ±2% of reading. The MTi15 pairs a manually focused 7.5mm lens and 20.7° x 15.6° field of view with a 3.5 inch 640 x 480 touch screen. Captures share over 802.11 Wi-Fi to PC, iOS, and Android devices, or transfer with live video to a PC over USB Type-C.

        Fault-finding on a crowded board often comes down to one termination, one busbar joint, or one motor bearing rather than the whole wall of gear. The MTi15's 7.5mm manually focused lens sharpens the image on the exact target, because an out-of-focus thermal image gives inaccurate radiometric data. Its 20.7° x 15.6° field of view concentrates all 19,200 measurement points on the detail that matters instead of spreading them across the room. The 50Hz image frequency keeps the picture smooth while tracking across live equipment.

        For plant and maintenance electricians and HVAC installers, the MTi15 turns a scan into same-day paperwork. Captures stream live over Wi-Fi to the Thermview app, which analyses images and shares PDF reports from a phone on site. The supplied Thermal Imager Reporter PC software organises captures into professional reports, with audio commentary reviewable alongside the images. With storage for more than 6,000 images and over 60 minutes of video, a full day of inspections comes back documented, not remembered.

        Features

        • 160 x 120 pixel thermal detector — the uncooled microbolometer reads 19,200 real temperature points per frame at 50Hz, with NETD below 0.05°C resolving fine temperature differences on the MTi15.
        • Manual focus 7.5mm lens — the focus ring dials the 20.7° x 15.6° field of view onto the target; correct focus keeps the radiometric data accurate.
        • Dual measurement ranges — -20°C to 150°C and 0°C to 650°C with rated accuracy of ±2°C or ±2% of reading; the low range is the more accurate choice where the two overlap.
        • 3.5 inch touch screen — the 640 x 480 LCD runs five image modes (thermal, visible, picture-in-picture, auto fusion, and zoom) with 1-16x continuous digital zoom.
        • 2 megapixel visual camera — the built-in camera with a 65° lens feeds the visible, picture-in-picture, and fusion modes.
        • Twelve colour palettes — eight standard options including Iron, Rainbow, Grey Inverted, and Hot-Cold, plus four alarm palettes with adjustable high, low, and zone thresholds.
        • Full analysis toolset — centre spot, 3 manual spots, automatic hot and cold markers, and 3 area plus 2 line analyses run on the MTi15 touch screen.
        • Measurement corrections — adjustable emissivity from 0.01 to 1.00, plus reflected temperature, ambient temperature, humidity, and distance compensation.
        • Wi-Fi and USB-C output — 802.11 Wi-Fi streams images and real-time video to the Thermview app, with USB Type-C carrying data and live video to a PC.
        • Deep on-board storage — more than 6,000 JPEG or HIR images with measurement data and over 60 minutes of MPEG-4 video across the 8GB micro SD card and 3.4GB internal memory.
        • Complete field kit — supplied with the lens, a 3.7V 2600mAh Li-ion battery running up to 4 hours per charge, an AC adaptor, 8GB micro SD card, USB cable, non-slip strap, PC software, and carrying case.
        • Operating limits — rated for -15°C to 50°C ambient and 10 to 90% humidity; never point the lens at the sun or laser sources, which can damage the detector.

        Where to use

        • Switchboard and electrical panel inspections — the MTi15 reveals temperature anomalies across terminations, breakers, and busbar joints in a single frame.
        • Motor and rotating plant checks — thermal scans pick up heat anomalies on motors before a fault takes the machine offline.
        • Compressor lines and HVAC work — temperature imaging supports diagnosis and verification across compressor lines and HVAC plant.
        • Plant and maintenance rounds — the MTi15 suits scheduled predictive maintenance scans that document equipment condition and flag developing faults.
        • Equipment troubleshooting and verification — before-and-after captures confirm a repair has resolved the heat signature found on the first scan.
        • Single-target detail work — the manual-focus lens and 16x digital zoom sharpen readings on one joint, termination, or bearing.
        • Dim switchrooms and roof spaces — the built-in LED flashlight lights the visual camera's view where ambient light is poor.
        • Live client walk-throughs — Wi-Fi streaming of real-time video to a smart device supports on-the-spot demonstration and reporting.

        The MTi15 operates within a rated span of -20°C to 650°C and ambient conditions of -15°C to 50°C only. Never look into the laser or point it at people, animals, or reflective surfaces, and never aim the lens at the sun or other intense energy sources, which can damage the detector. No ingress protection rating is published, so keep the unit and battery dry.

        (MTi15)

        The MTi15 has a 160 x 120 pixel detector reading 19,200 temperature points per frame at 50Hz, behind a manually focused 7.5mm lens with a 20.7° x 15.6° field of view. The 3.5 inch touch screen displays at 640 x 480 pixels.

        Object temperatures span -20°C to 150°C on the low range and 0°C to 650°C on the high range, with rated accuracy of ±2°C or ±2% of reading. Where the two ranges overlap, the low range gives the more accurate result.

        Correct focus directs infrared energy onto the detector pixels accurately; an out-of-focus thermal image is blurry and its radiometric data is inaccurate. The focus ring on the 7.5mm lens lets the operator sharpen the image on the exact target before capturing.

        The imager streams real-time video and transfers images over 802.11 Wi-Fi to the Thermview app on Android and iOS, which can analyse captures and share PDF reports. USB Type-C carries data and live video to a PC, with Thermal Imager Reporter software supplied.

        The kit includes the imager and lens, a 3.7V 2600mAh Li-ion battery, an AC adaptor, an 8GB micro SD card, a USB cable, a non-slip strap, PC software, a user manual, a warranty card, and a carrying case. A card reader is not included.

        The MTi15 carries a 2 year warranty for domestic and commercial use, starting from the invoice date. Lodge a claim by returning the unit to Sparky Direct with proof of purchase; it is then forwarded to Major Tech's authorised service centre for inspection, testing, and calibration. Allow 7 to 14 working days.

        No ingress protection rating is published for the imager, so it should not be treated as weatherproof, and the battery must be kept dry. Operating limits are -15°C to 50°C at 10 to 90% humidity, and the battery charges between 0°C and 50°C.

        The Major Tech MTi15 is available online from Sparky Direct, with Australia-wide delivery to any state or territory including regional areas. Sparky Direct is an Australian electrical wholesaler established in 2005, supplying more than 500,000 customers with transparent trade pricing.

        100-Day Fuss-Free Returns
        We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

        • Items must be unused, with all parts, accessories, and original packaging.
        • We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
        • Proof of purchase is required.
        • Return shipping is the responsibility of the customer.

        If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.


        All products come with a manufacturer’s or supplier’s warranty

        • Warranty starts from the Invoice Date
        • Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
        • Sparky Direct isn’t responsible for losses caused by product failure.
        • Warranties are void if products aren’t installed by a licensed electrician.

        Damaged or Faulty Goods
        If your order arrives damaged or is faulty, let us know within 24 hours.

        • Sparky Direct will pay for return shipping via an emailed return label.
        • If the fault is confirmed, we will send you a replacement item or provide a refund.

        Contact us via our chat to arrange the return.


        Exclusions
        We can’t accept returns for:

        • Items that have been installed, modified, or used
        • Clearance, End of life, Discontinued, or special order items (unless faulty)
        • All PPE Items
        • Goods returned without original packaging or proof of purchase

        How to Request a Return

        1. Contact our customer service team with your order number.
        2. Confirm it’s eligible under our return or warranty policy.
        3. Pack the item securely and return it using a trackable service.
        4. Once we receive and inspect it, we’ll process your refund or replacement.

        Warranty starts from Invoice Date

        Domestic Use: 2 Year
        Commercial Use: 2 Year
        Warranty Method: Return to Sparky Direct

        All Major Tech Meters sold through Sparky Direct are covered by the manufacturer’s warranty. If you believe your meter is faulty or defective, you may request an assessment under this warranty policy.

        How to Lodge a Warranty Claim

        To initiate a warranty claim:

        1. Return to Sparky Direct
          Ship the meter back to Sparky Direct along with:

          • A copy of your proof of purchase
          • A brief description of the issue
          • Your contact details

          Please ensure the unit is securely packaged to prevent damage in transit.

        2. Forwarded for Assessment
          Upon receiving your meter, we will forward it to Major Tech’s authorised service centre for inspection, testing, and calibration.

        Assessment Process

        Major Tech’s service lab will assess the returned unit to determine:

        • Whether the fault is due to a manufacturer’s defect (covered under warranty), or
        • If the issue is the result of user error or no fault is found.

        Outcomes

        • If approved under warranty: The product will be repaired or replaced at no cost to you.
        • If not covered under warranty: The lab may offer repair services, which will be quoted and billed directly to you by the service provider.

        Important Notes

        As Major Tech’s service labs are independent providers, Sparky Direct cannot govern or guarantee turnaround times or any costs incurred for repairs outside of warranty coverage.

        Please allow up to 7-14 working days for the return of your product.

        Specification Details
        Field of View 20.7° x 15.6°
        Spatial Resolution (IFOV) 1.88mrad
        Thermal Sensitivity/NETD <0.05° at 30°C (86°F)/50mK
        Image Frequency 50Hz
        Focus Mode Manual
        Focal Length 7.5mm
        Focal Plane Array (FPA)/Spectral Range Uncooled Microbolometer/8-14µm
        IR Resolution 160 x 120
        Display 3.5″ TFT LCD, Touchscreen
        Display Resolution 640 x 480 pixels
        Image Modes IR Image, Visual image, Pic-in Pic, Auto Fusion
        Colour Palettes Iron, Rainbow, Grey, Grey inverted, Brown, Blue/Red, Feather & Zone Alarm
        Object Temperature Range -20°C to 150°C/0°C to 650°C
        Object Temperature Accuracy ±2°C or ±2% of reading
        Spot Centre spot, 3 Adjustable Spots
        Automatic Features Auto hot or cold markers,
        2 Line Analysis,
        3 Area Analysis
        Adjustable Emissivity 0.01 to 1.0
        Measurement Correction Emissivity, Reflected Temperature
        Storage Media 8GB Micro SD Card, 3.4GB Internal EMMC
        Video Storage Mode Standard MPEG-4
        Image Storage Mode Bitmap (.bmp) and simultaneous visual image including measurement data
        USB Type C, Data and Live Video transfer to PC
        WiFi 802.11 Data and Live Video transfer to App
        Size 224 x 77 x 96mm
        Weight 500g

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Major Tech
        SKU MTi15
        Model # MTi15
        TYPE VALUE
        Type Thermometer
        Brand Major Tech
        Height (mm) 96
        Width (mm) 77
        Length (mm) 224
        Power Source Rechargeable Li-ion Battery
        Temperature Range -20°C to 150°C/0°C to 650°C
        Display 3.5″ TFT LCD, Touchscreen
        Field of View 20.7° x 15.6°
        Image Frequency 50Hz
        Focal length 7.5mm
        IR Resolution 160 x 120
        Media Storage 8GB Micro SD Card, 3.4GB Internal EMMC
        Connections USB Type C, Data and Live Video transfer to PC/App
