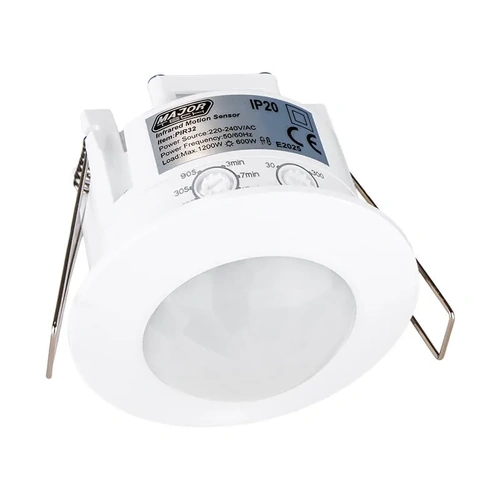

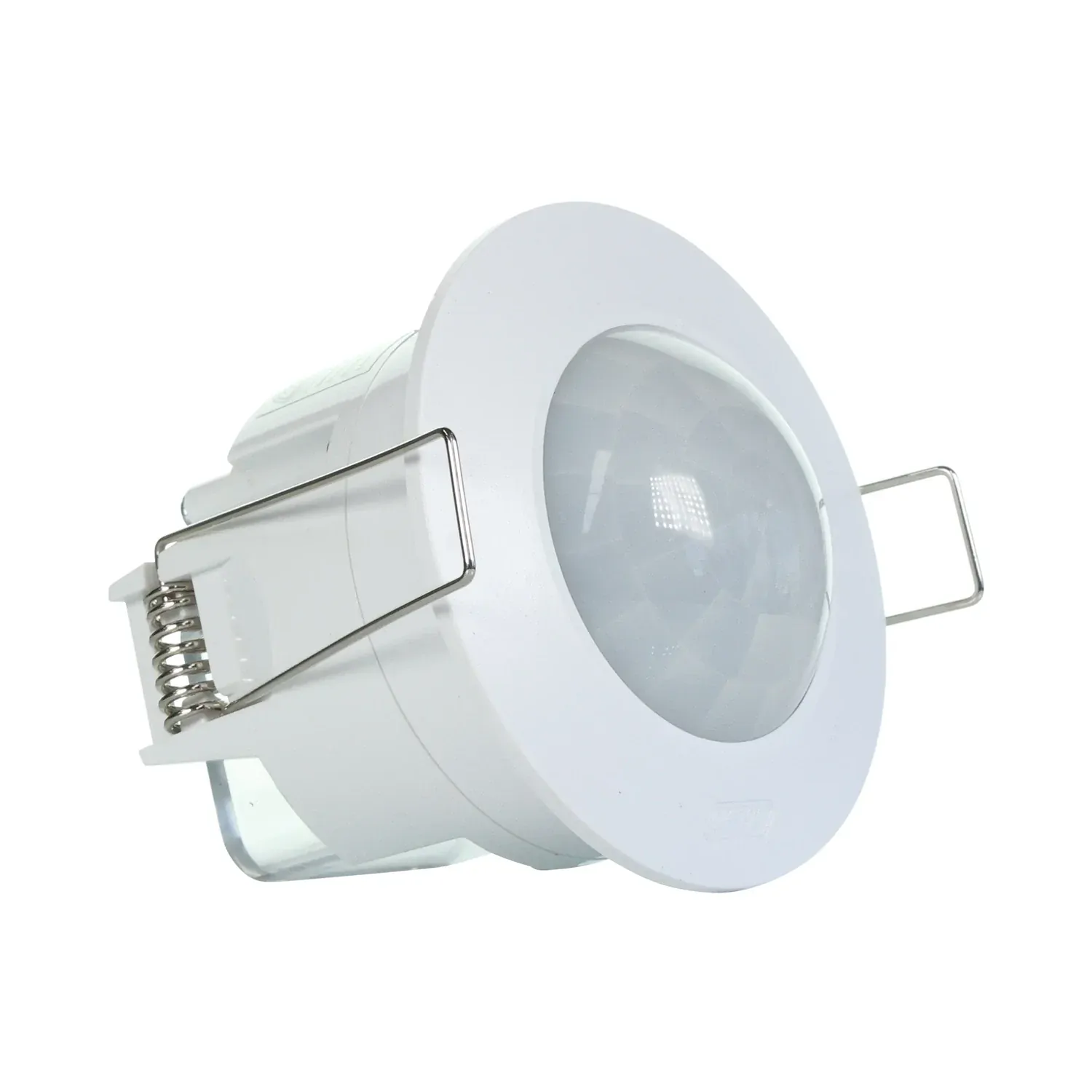

        Major Tech PIR32 | 360° PIR Motion Sensor Ceiling Mount | IP20

        The Major Tech PIR32 is a compact 360° passive infrared sensor designed for indoor lighting automation. Ideal for homes, offices, bathrooms, and corridors, it detects motion and body heat to automatically switch lights or devices on and off.

        With a 6m detection range, adjustable delay (10 sec to 15 min), and ambient light sensitivity (<3 to 2000 Lux), it offers flexible control based on user needs and environment. Rated for 1200W incandescent or 600W LED/CFL, the PIR32 is easy to install into a 64mm ceiling cutout and is suited for dry indoor use only (IP20).

        PIR32 Features

        • 360° Motion Detection: Ceiling-mounted design for wide indoor coverage
        • 6m Detection Range: Ideal for standard rooms and hallways
        • Time Delay & Lux Settings: Adjustable from 10s to 15min and <3 to 2000 Lux
        • Low Power Use: <0.5W standby consumption
        • Indoor Rated: IP20, fits Ø64mm ceiling cutout

        PIR32 FAQ

        Q: Where can this sensor be installed?
        A: It’s ideal for indoor ceilings in hallways, bathrooms, offices, or retail spaces.

        Q: Can I adjust how long the light stays on?
        A: Yes, the delay can be set anywhere between 10 seconds and 15 minutes.

        Q: What is the required cutout size?
        A: The sensor fits into a standard Ø64mm ceiling cutout.

        (PIR32)

        Warranty

        Warranty starts from Invoice Date

        2 Year Limited Warranty
        Warranty Method: Return to Sparky Direct

        Features
        Specification Details
        Detection Area 360°
        Detection Distance 6m Max
        Detection Motion Speed 0.6 to 1.5 m/s
        Ambient Light <3 to 2000 Lux (Adjustable)
        Installation Height 2.2m – 4m
        Voltage 220 to 240V AC
        Power Frequency 50/60Hz
        Rated Load Incandescent: 1200W
        LED / CFL: 600W
        Time Delay 10 sec (±3 sec) to 15 min (±2 min)
        Hole Cut Out Size Ø64mm
        Power Consumption <0.5W
        Mounting Ceiling Mount
        Working Temperature -20°C to 40°C
        Working Humidity <93% RH
        IP Rating IP20 (Indoor installation)
        Standards IEC 60669-1 / 60669-2-1
        AS/NZS 60669.1 / 60669.2.1
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Major Tech
        SKU PIR32
        Model # PIR32
        Barcode # 6008229007767
        Package Weight 0.118kg
        Package Width 0.085m
        Package Height 0.120m
        Package Length 0.085m
        TYPE VALUE
        Type Sensor
        Brand Major Tech
        Voltage (V) 220-240V AC
        Time Delay 10 sec (±3 sec) to 15 min (±2 min)
        Detection Distance 6M Max
        Detection Area 360°
        Detection Motion Speed 0.6 to 1.5m/s
        Incandescent 1200W
        LED / CFL 600W
