        Description

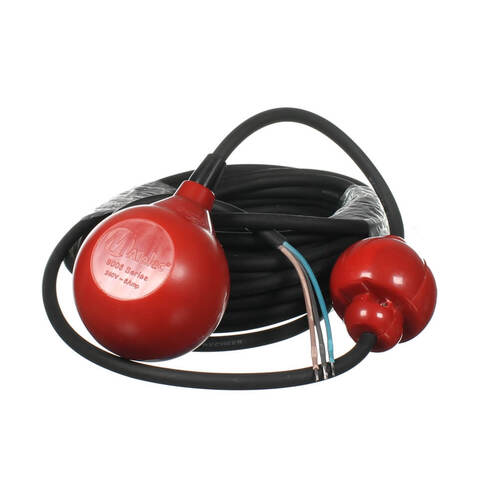

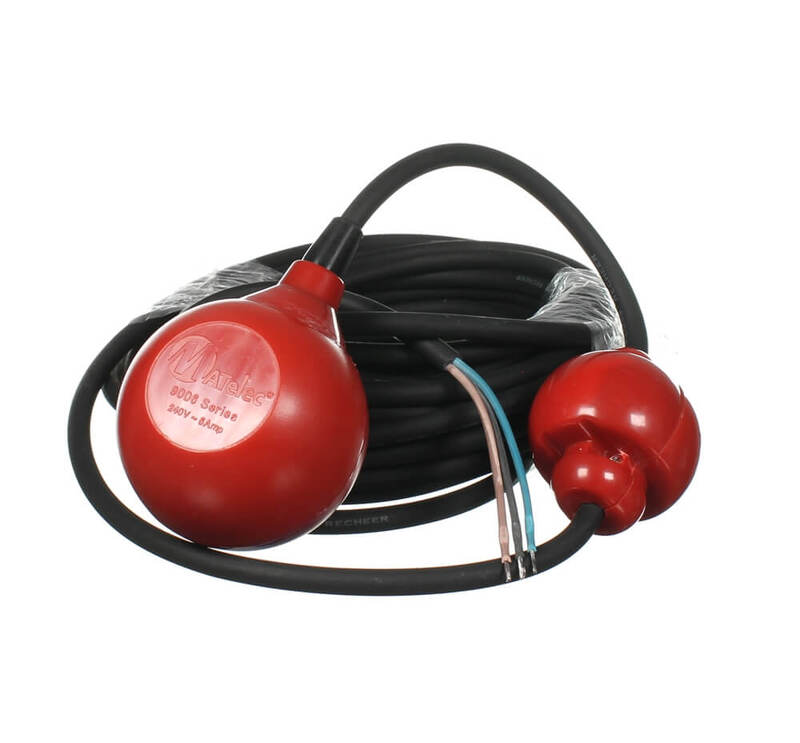

        Matelec FSW-12551 | 9006 Liquid Float Switch 50M Cable Length

        The Matelec FSW-12551 is a 9006 series liquid float switch featuring a 50 metre neoprene cable, built for long-range and deep tank level control in electrical, industrial, and water management systems. Designed for normally open or normally closed switching, it uses a microswitch that activates at a 25° angle from horizontal.

        This float switch supports 240V AC operation, rated at 6A, and offers high resistance to acids, oils, and alkalis thanks to its robust ABS housing. With a protection rating of IP68 at 20m depth, it's suited for demanding submersion applications. The design includes a sliding detent action that minimises false triggering from wave motion and ensures consistent switching accuracy.

        FSW-12551 Features

        • 50 metre cable length (neoprene): Ideal for deep or long-distance tank and sump applications.
        • Rated to 240V AC, 6A (COS φ): Microswitch with NO and NC contacts for flexible control logic.
        • 25° switching angle: Allows reliable operation and adjustable differential setup.
        • IP68 rated at 20 metres depth: Suitable for continuous submersion.
        • ABS housing with acid, alkali, and petrochemical resistance: Built for harsh chemical environments.

        FSW-12551 FAQ
        Q: What environments is this float switch suited for?
        A: It’s ideal for tank level detection, pump control, and wastewater applications, especially where long cable reach is needed.

        Q: Can this switch be used for both rising and falling levels?
        A: Yes, it supports normally open and normally closed operation, depending on wiring.

        Q: Is the float suitable for use with chemicals?
        A: Yes, the ABS housing is resistant to acid, alkali, and petro-based liquids.

        (FSW-12551)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Matelec
        SKU FSW-12551
        Package Weight 1.509kg
        Package Width 0.195m
        Package Height 0.050m
        Package Length 0.195m
        TYPE VALUE
        Type Switches
        Brand Matelec
        Range Float Switches
        Colour Red Body / Black Lead
        Rated Current (A) 6
        Protection IP68 @ 20mtrs
        Cable size mm (OD) 7
        Chemical Resistance Acid / Alkaline / Petro
        Cable Conductor Size (mm2) 3 x 0.75
        Cable material Neoprene Rubber
        Liquid Density Min .65g/cm Max 1.5g/cm
        Working Pressure .35MPa
        Contact Lifespan 10,000 Switches
        Switching Speed 600 Per Minute
        Liquid Temperature Min 5 Max 60 Degrees
        Contact Configuration 1 x N/O & 1 N/C
        Material ABS Plastic (acrylonitrile butadiene-styrene)
        Voltage (V) 240VAC 50Hz
