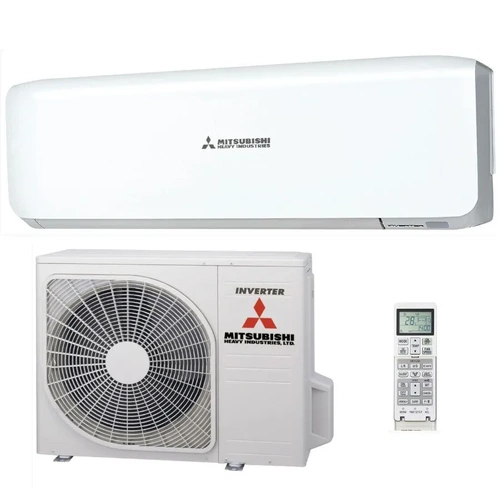

        Mitsubishi DXK09ZSA-WF1-SET | 2.5kW Avanti Split System Air Conditioner | Built-in Wi-Fi

        The Mitsubishi Heavy Industries DXK09ZSA-WF1 is a 2.5kW reverse-cycle split system from the Avanti Series, designed for efficient, year-round comfort in bedrooms, home offices, and small living spaces. The updated WF1 model features built-in Wi-Fi and smart voice control, giving you remote access from anywhere via the Smart M-Air App, Amazon Alexa, or Google Assistant.

        With a compact and stylish indoor unit, the system is built for quiet performance and improved indoor air quality. It includes dual filtration with PM2.5 and Allergen Clear filters to help trap dust, smoke, and pollen, making it a great choice for sensitive environments.

        DXK09ZSA-WF1-Set Features

        • Built-in Wi-Fi: Remote operation via the Smart M-Air App.
        • Voice Control Ready: Compatible with Alexa and Google Assistant.
        • 2.5kW Cooling / 3.2kW Heating: Ideal for rooms up to 20m².
        • PM2.5 & Allergen Filters: Captures dust, pollen, and fine particles.
        • Quiet Operation: Runs silently for bedroom or study use.
        • Reverse Cycle Function: Delivers heating and cooling in one unit.
        • Modern Design: Slimline profile with soft LED lighting.

        DXK09ZSA-WF1-Set FAQ

        Q: Can I control it with my phone?
        A: Yes, the Smart M-Air App gives you full access to all functions remotely.

        Q: Is it compatible with smart home systems?
        A: Yes, it works with both Alexa and Google Assistant for voice control.

        Q: Does it help with air quality?
        A: Absolutely, it includes filters that capture allergens and PM2.5 for cleaner indoor air.

        (DXK09ZSA-WF1-SET)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 5 Year Parts & Labour Warranty
        Warranty Method: Manufacturers

        Features
        Specification Details
        Model Number DXK09ZSA-WF1-SET
        Cooling / Heating Capacity 2.5 kW / 3.2 kW
        Energy Label (GEMS 2019) – Hot Zone Cooling: 5.0 stars
        Heating: 3.5 stars
        Energy Label – Average Zone Cooling: 4.0 stars
        Heating: 3.0 stars
        Energy Label – Cold Zone Cooling: 4.0 stars
        Heating: 3.0 stars
        Power Source 1 Phase, 220–240 V, 50 Hz
        Indoor Unit Dimensions (HxWxD) 290 × 870 × 230 mm
        Outdoor Unit Dimensions (HxWxD) 540 × 780 (+62) × 290 mm
        Indoor / Outdoor Unit Weight Indoor: 10 kg
        Outdoor: 36 kg
        Refrigerant R32 (0.75 kg) – Precharged to 15 m
        Max Vertical Height (O.U. vs I.U.) Max 10 m (higher or lower)
        Wi-Fi & Voice Control Built-in Wi-Fi, Compatible with Google Assistant & Alexa
        Air Filtration Allergen Clear Filter + NOVAShield™ Nano Filter (PM2.5)
        Smart App Smart M-AIR (iOS & Android)
        LED Brightness Control Yes – Adjustable on indoor unit
        Demand Response Ready Yes (AS4755 compliant)
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Mitsubishi Heavy Industries
        SKU DXK09ZSA-WF1-SET
        Model # DXK09ZSA-WF1-SET
        TYPE VALUE
        Type Air Conditioner
        Brand Mitsubishi Electric
        Series Avanti®
        Cooling Capacity (Rated) 2.5
        Heating Capacity (Rated) 3.2
