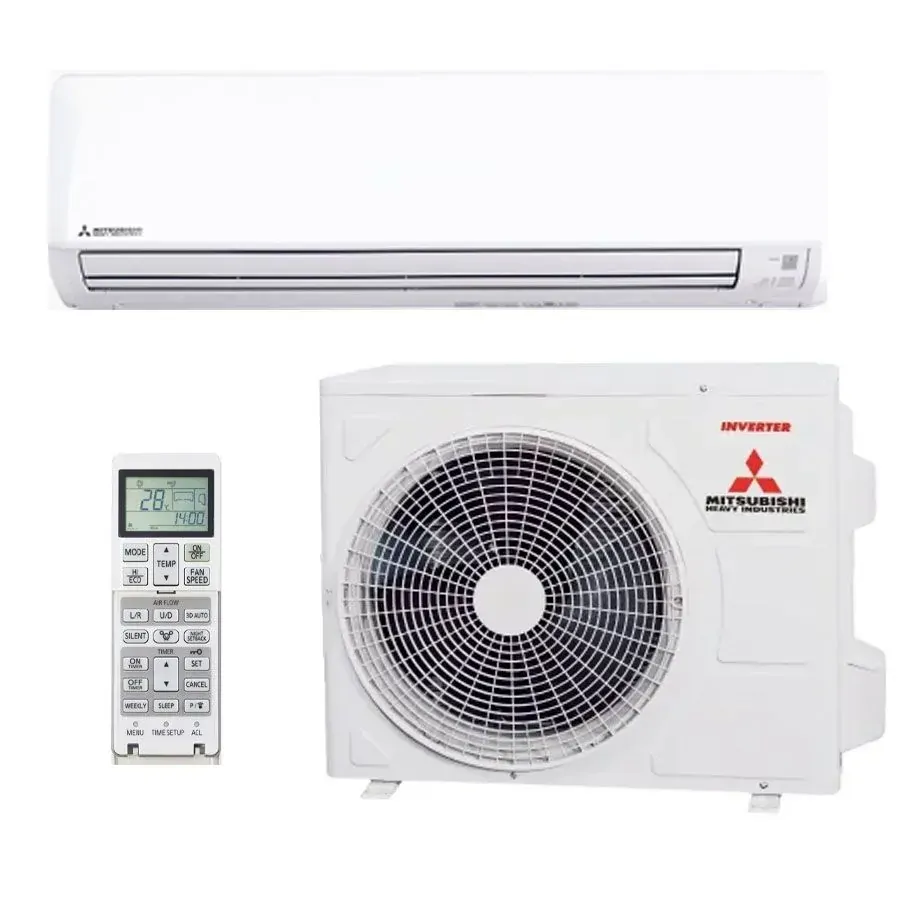

Mitsubishi Heavy Industries | Bronte 6.3kW Split System 240V | Built-in Wi-Fi
The Mitsubishi Heavy Industries DXK21ZRA-WF1-SET is a 6.3kW reverse-cycle split system for large living spaces and open-plan areas. Built-in Wi-Fi allows remote control via the Smart M-Air app, with voice command integration for Amazon Alexa and Google Assistant. It delivers powerful cooling to 6.3kW and heating to 7.1kW, with dual-layer air filtration and long-reach airflow up to 18 metres.
Large modern homes often struggle with uneven temperature distribution and poor air quality during heating and cooling cycles. Open-plan layouts, extended wall lengths, and retrofit applications require an air conditioner that can move air quickly and effectively across the entire space. The DXK21ZRA-WF1-SET addresses this with 18-metre long-reach airflow that distributes conditioned air across large rooms without creating hot or cold spots. The unit's NOVAShield™ PM2.5 filter and Allergen Clear system capture fine particles and improve indoor air quality. This is a key consideration for families managing dust, pollen, and allergens year-round.
Tradies and property managers value the DXK21ZRA-WF1-SET for its retrofit simplicity and remote monitoring capability. The built-in Wi-Fi eliminates the need for aftermarket modules; installers can commission the unit and hand over app access to homeowners immediately. The Smart M-Air app allows technicians to monitor operating status, schedule timers, and track power consumption remotely, reducing call-backs for minor adjustments. The unit's 5-year manufacturer warranty covers parts and labour, and its R32 refrigerant pre-charge to 15 metres cuts installation complexity on standard residential runs.
Features
- 6.3kW cooling / 7.1kW heating — rated capacity suitable for rooms over 60 square metres; delivers both summer cooling and winter warmth on a single 1 Phase 240V 50Hz supply.
- Built-in Wi-Fi and voice control — no external module required; control via Smart M-Air app on smartphone or voice command through Amazon Alexa or Google Assistant (separate smart speaker required).
- 18-metre long-reach airflow — jet-engine blade technology distributes air across large open spaces; minimises dead zones in living areas and renovated home additions.
- NOVAShield™ PM2.5 filter + Allergen Clear system — dual-filter design captures fine particles (dust, pollen, smoke) and allergens; improves indoor air quality during continuous operation.
- Quiet inverter motor operation — variable-speed compressor reduces noise and energy consumption; rated for unobtrusive background running in bedrooms and living spaces.
- LED display brightness control — adjustable brightness on the indoor unit minimises light disturbance at night; useful feature for bedrooms and media rooms.
- 1 Phase 240V 50Hz power supply — standard domestic electrical supply; no 3-phase upgrade required; suitable for residential installations.
- R32 refrigerant, 1.25kg charge — pre-charged to 15 metres, reducing on-site commissioning time; compliant with modern refrigerant regulations.
- Indoor unit 339×1197×262mm — slim horizontal profile fits standard wall space; mounts cleanly above furniture or shelving without protruding into the room.
- Outdoor unit 640×800×290mm — compact outdoor condenser; rated for maximum 20m vertical height difference between indoor and outdoor units, accommodating multi-level homes.
- Energy Label (GEMS 2019) — Cooling: 4 stars (Hot zone), 3.5 stars (Average zone), 4 stars (Cold zone); Heating: 3.5 stars (Hot zone), 3 stars (Average zone), 2.5 stars (Cold zone); performance varies by climate zone.
- 5-year manufacturer warranty — covers parts and labour for domestic use; in-home service available; installed by licensed electrician only.
Where to use
- Large open-plan living areas — the 18-metre airflow reach makes the DXK21ZRA-WF1-SET ideal for open-plan kitchens, lounges, and dining spaces where a single unit needs to cool or heat the entire floor plan.
- Home additions and renovations — reverse-cycle heating and cooling suit modern extensions; the Wi-Fi app lets homeowners adjust temperature remotely during staged renovation work.
- Multi-room retrofit installations — tradies specify the DXK21ZRA-WF1-SET on second-storey retrofits and room-by-room heating upgrades where duct work or multiple units aren't practical.
- Smart home integration — built-in Wi-Fi and voice compatibility appeal to owners using Alexa or Google Home ecosystems; eliminates the need for external smart modules.
- Commercial light-duty spaces — medium-sized offices, small retail, and service areas benefit from the unit's cooling and heating capacity; the Wi-Fi monitoring helps track energy use across multiple tenancies.
- Family homes with air quality concerns — the dual-filter Allergen Clear + NOVAShield™ system suits families with allergies, pets, or dust-sensitive conditions.
The DXK21ZRA-WF1-SET is not designed for external installation, damp exposed locations, or high-temperature industrial environments. It is a wall-mounted indoor/outdoor split system rated for domestic and light commercial use only. Do not install in areas subject to direct rainfall, saltwater spray, or extreme temperature fluctuations.
