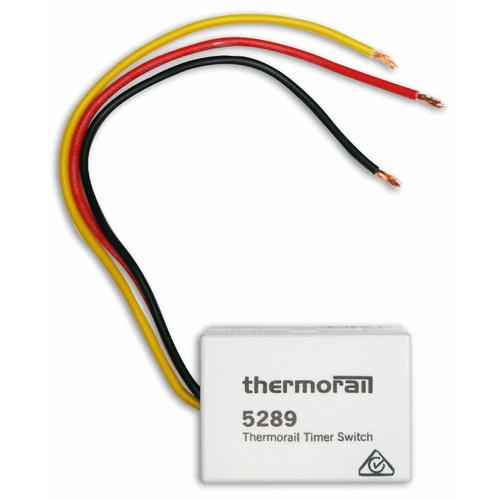

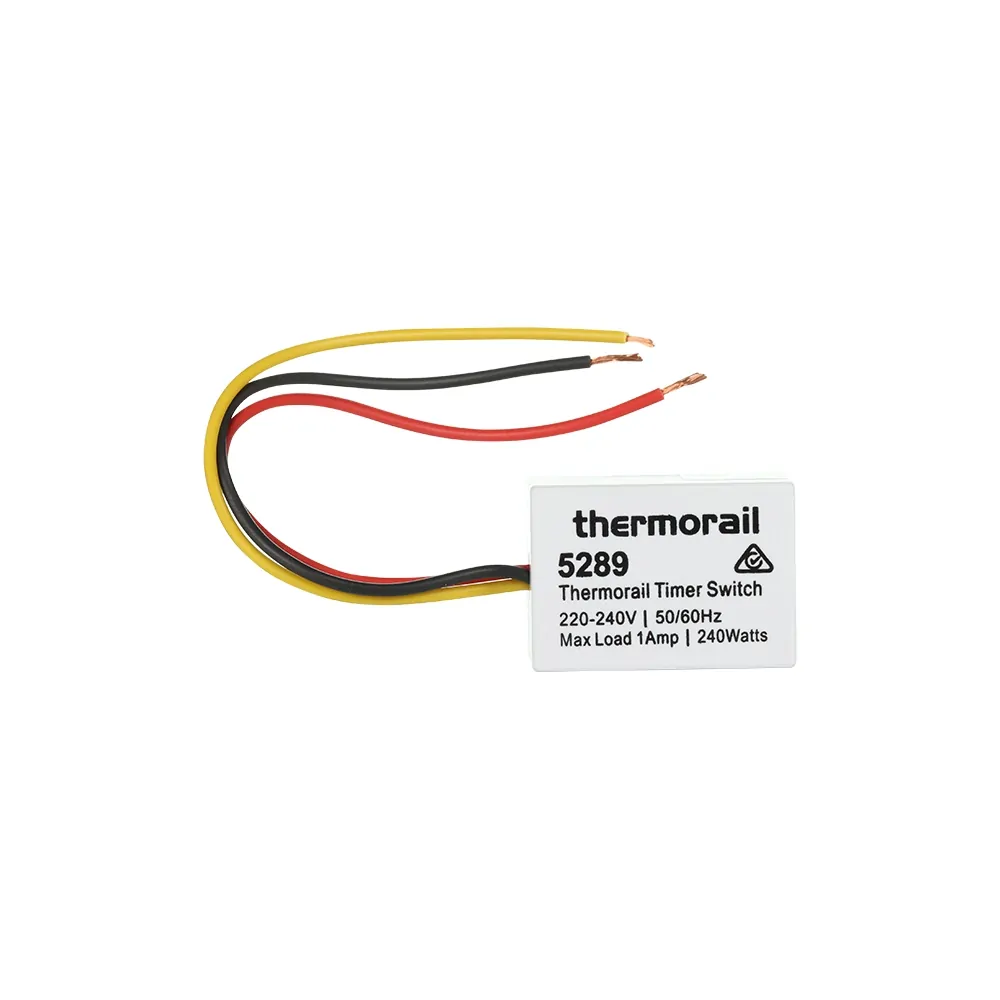

        Thermogroup 5289 | Thermorail Eco Timer For Heated Towel Rails

        The Thermogroup 5289 Eco Timer is a simple and cost-effective way to control your heated towel rails. Designed for concealed installation behind a standard switch plate (not included), it lets you set and forget a heating schedule for warm, dry towels. Running on a 12-hour cycle, it automatically switches your towel rail on at the same time each morning and evening.

        You can adjust the heating period from 1 to 11 hours and choose from three power levels: 50%, 75%, or 100%. Programming is done using the wall switch, with audible beeps confirming your settings. Once programmed, the timer repeats your schedule every 12 hours, helping you reduce energy use without sacrificing comfort. With a supply voltage of 220-240V AC and a maximum load of 13A, the Eco Timer is IP20 rated for indoor use and meets IEC60730-2-7:2015 safety standards. It’s an energy-efficient, reliable solution that keeps your towel rails running smoothly while lowering running costs.

        5289 Key Features:

        • 12-hour schedule: Automatically turns the towel rail on twice a day at the same times.
        • Adjustable run time: Choose from 1 to 11 hours of heating.
        • Three power settings: Select 50%, 75%, or 100% power output.
        • Concealed design: Installs neatly behind a standard switch plate (not included).
        • Audible beeps: Confirms your settings with sound.
        • Reliable power: Runs on 220-240V AC, up to 13A load.
        • IP20 rated: Safe for indoor, dry locations.
        • Complies with IEC standards: Meets IEC60730-2-7:2015 safety requirements.

        5289 Eco Timer FAQ:

        Q: How does it work?
        A: The timer turns your towel rail on twice a day, at the same times every morning and evening. It runs for the duration you set.

        Q: Can I adjust the heating time?
        A: Yes! You can pick a run time from 1 to 11 hours and select how much power you want—50%, 75%, or 100%.

        Q: Is it easy to install?
        A: Absolutely. It fits behind a standard switch plate and can be wired to a spare switch (switch plate not included).

        (5289)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparkydirect

        Features
        Specification Details
        Model 5289 Eco Timer
        Supply Voltage 220 - 240V AC
        Maximum Load 13A
        IP Rating IP20
        Size (mm) W86 x H86 x D22
        Colour White
        Compliance IEC60730-2-7: 2015
        Operating Period Continuous
        GWT 850°C
        Mounting Independently Mounted / Suspended by wiring
        Type of Action Type 1.Q
        Operating Time Variable 1-12 Hours
        Pollution Degree II
        Number of Cycles 1
        PTI 175
        Rated Impulse Voltage 4000 Volts
        BPT 125°C
        Ambient Temperature Range 0°C to 55°C
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Thermogroup
        SKU 5289
        Barcode # 9349970004429
        Package Weight 1.000kg
        TYPE VALUE
        Type Timer
        Brand Thermogroup
        Colour White
        Voltage (V) 220-240
        IP Rating IP20
        Maximum Load 13A
        Dimensions 86 x 86 x 22mm
        Impulse Voltage (V) 4000
