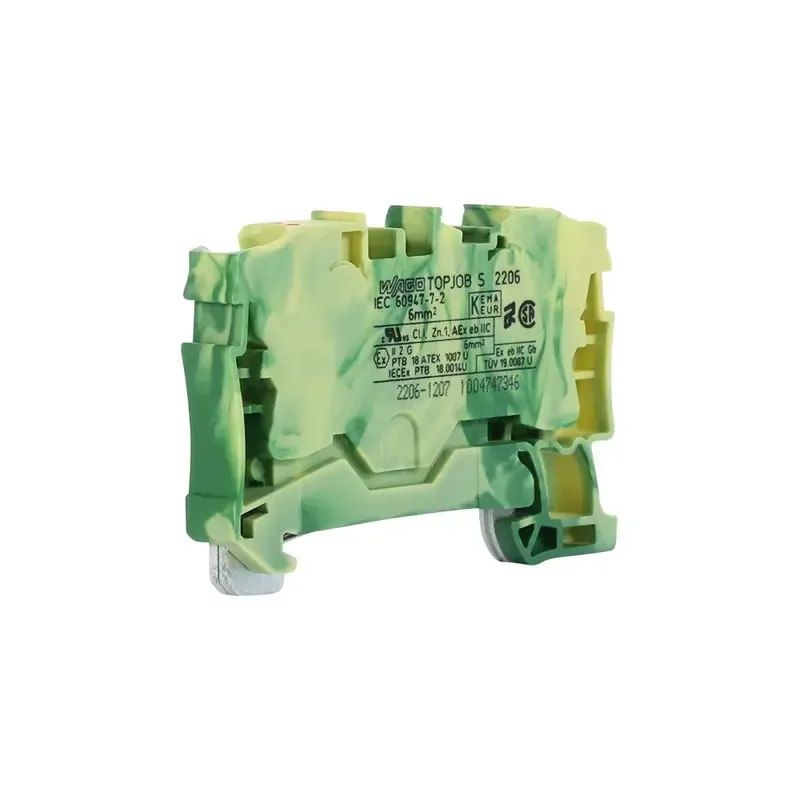

The Wago 2206-1207 is a two-conductor ground terminal block with a 6mm2 nominal cross-section. This listing supplies one block rather than Wago's fifty-piece packaging unit. The 2206-1207 takes 0.5 to 10mm2 copper conductors and mounts on DIN-35 rail at 7.5mm wide. Conductors go in through a push-button Push-in CAGE CLAMP, and a test port takes a probe.
Earth positions on a switchboard rarely land on a round number. Supplied as a single block, the 2206-1207 lets an earth bar be built to the exact position count. At 7.5mm wide each block consumes little rail, so an extra position can often be added without shifting gear. The 0.5 to 10mm2 range covers control wiring through to a 10mm2 main earth on one part number.
An earth connection that cannot be demonstrated becomes a problem at inspection. The integrated test port takes a probe, so continuity is checked with conductors still terminated. Push-button CAGE CLAMP actuation holds spring pressure instead of relying on a screw staying torqued. Two jumper slots let a push-in jumper bar common adjacent blocks across a run.
The 2206-1207 is a green-yellow earth block, so it takes earth conductors only and never an active or a neutral. It carries no amp rating, because an earth terminal is sized by the earthing arrangement the electrician is working to, not by a figure on the block. Every run also needs an end plate on the end, ordered separately.
(2206-1207-Single)
One block. Wago packs this item in boxes of fifty, and this listing breaks the pack so a board can be ordered to the exact number of earth positions it needs.
0.5 to 10mm2 solid or fine-stranded copper, which is 20 to 8 AWG. The 6mm2 figure in the product name is the nominal cross-section, not the maximum the block accepts.
Solid conductors from 1 to 10mm2 and ferruled ones from 2.5 to 6mm2 push straight in. Bare fine-stranded conductors need the operating tool, and so does getting any conductor back out.
No, and Wago does not publish one. An earth block is not sized from a terminal rating. The earth conductor size comes from the earthing arrangement the installing electrician is working to.
7.5mm of rail per block. It stands 57.3mm high and sits 32.9mm deep off the top edge of the rail, and weighs 18g.
Yes. Each block has two jumper slots. Drop a push-in jumper bar in and press it down until it hits the backstop, and the blocks are commoned.
Yes. Wago lists an end and intermediate plate as a required accessory, sold separately. Allow one for the end of each terminal run.
Hazardous area approvals under ATEX, IECEx, AEx, CCC, EAC and INMETRO for Ex eb IIC Gb and Ex eb I Mb. Marine approvals come from ABS, Bureau Veritas, DNV GL and Lloyds Register, plus EN 50155 rail testing.
The Wago 2206-1207 is available online from Sparky Direct, with Australia-wide delivery to any state or territory including regional areas. Sparky Direct is an Australian electrical wholesaler established in 2005, supplying more than 500,000 customers with transparent trade pricing.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Wago |
| SKU | 2206-1207-Single |
| Model # | 2206-1207-Single |
| Barcode # | 4055143846721 |
| Package Weight | 0.018kg |
| TYPE | VALUE |
|---|---|
| Type | Electrical Accessories |
| Brand | Wago |
| Colour | Yellow/Green |
| Height (mm) | 57.3 |
| Width (mm) | 7.5 |
| Depth (mm) | 32.9 |
| Mounting | DIN rail |
| Weight (g) | 18 |
| Connection Type | Push-in Cage Clamp |
| Solid Conductor | 0.5 - 10mm² |
| Fine-Stranded Conductor | 0.5 - 10mm² |
