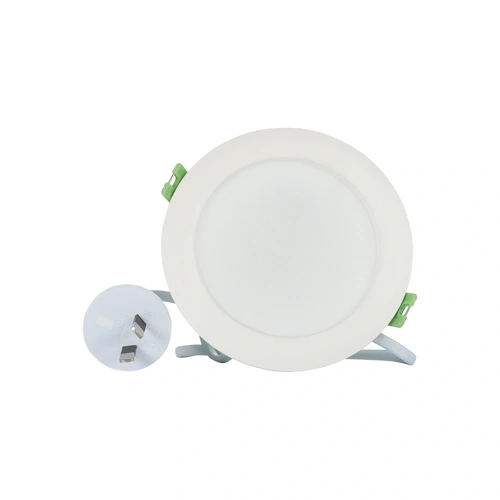

        XLED XDA4-W | 9W Dimmable LED Downlight Tri Colour | 90MM Cutout

        The XLED XDA4-W, also known as the AuraOne MKIV, is a 9W dimmable LED downlight with a 90mm cutout and tri-colour switching for warm, neutral, or cool white lighting. Designed for quick fit-outs or upgrades, it features a twist-lock trim, opal diffuser, and comes pre-wired with a 75cm flex and plug for fast installation.

        With an integrated dimmable driver, it supports 10–95% dimming, making it suitable for residential and light commercial settings. The 110° beam angle ensures even coverage, and the polycarbonate body offers a clean white finish with optional silver or black trims for a custom look.

        XDA4-W Features

        • 9W LED downlight with 90mm cutout: Designed for recessed ceiling installations.
        • Tri-CCT selectable (3000K / 4000K / 6000K): One fitting, three colour temperature options.
        • Integral dimmable driver (10%–95%): Compatible with standard dimmer systems.
        • Twist-lock removable trim: Makes maintenance and trim changes easy.
        • Supplied with 75cm flex and plug: Ready for quick connection during install.

        XDA4-W FAQ
        Q: What cutout size is required for this fitting?
        A: A 90mm cutout is required for installation.

        Q: Can I change the colour temperature?
        A: Yes, the unit includes 3 preset CCT options: 3000K, 4000K, and 6000K.

        Q: Is this downlight dimmable?
        A: Yes, it includes an integrated dimmable driver, supporting 10% to 95% dimming.

        (XDA4-W)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 3 Year
        Commercial Use: 3 Year
        Warranty Method: Return to Sparky Direct



        Features
        Specification Details
        Model AuraOne MKIV (XDA4)
        IP Rating IP44
        Material Polycarbonate body with opal polycarbonate diffuser
        Trim Twist lock removable trim (white standard, optional silver and black)
        Plug Complete with 75cm flex & plug
        CRI >80+
        Power Factor >0.9
        Beam Angle 110°
        Colour Temperature Options 3000K (700lm), 4000K (750lm), 6000K (870lm)
        Lifespan 40,000 hours
        Dimensions ⌀115mm x 65mm (90mm cut out)
        Lamp 9W SMD2835 LED
        Control Gear Integral electronic dimmable LED driver (10%-95% dimming)
        Mounting Recessed
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand ILD
        SKU XDA4-W
        Barcode # 0796548147009
        Package Weight 0.198kg
        Package Width 0.115m
        Package Height 0.055m
        Package Length 0.115m
        TYPE VALUE
        Type Down Light
        Brand ILD
        Colour White
        Lumens (Lm) 700,750,870lm
        Light Colour (K) 3000K, 4000K, 6000K
        Dimmable Yes
        Beam Angle 110°
        CRI >80+
        IP Rating IP44
        Dimensions ⌀115mm x 65mm (90mm cut out)
        Lifespan (Hrs) 40,000 Hrs
