Learn more by watching our Clipsal RCBE225/30S | 25AMP RCBO 1P+N 4.5kA Resi MAX video.

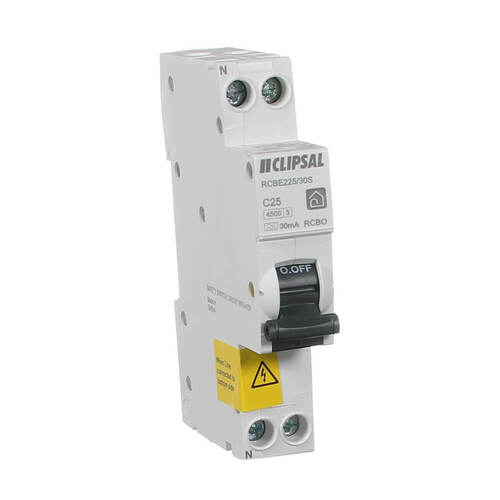

The Clipsal RCBE225/30S is a single-module RCBO rated 25A with 30mA earth-leakage protection, combining overcurrent and residual-current protection in one device. Part of the Resi MAX range, the RCBE225/30S has a C trip curve, a 4.5kA breaking capacity, and a Type A earth-leakage class. The device clips onto a standard DIN rail and complies with AS/NZS 61009.
Domestic switchboards fill quickly once every final subcircuit needs its own residual-current protection under the wiring regulations. The RCBE225/30S answers this with a single-module footprint, so additional RCBO poles fit within the same board or load centre. Because the line and load terminals are non-sensitive, the device accepts supply from either the top or bottom and installs without re-running the existing cabling. That makes it a practical replacement when upgrading an older board or swapping an alternative brand.
Licensed electricians specify the Resi MAX RCBO when a switchboard upgrade must stay economical without resorting to an unfamiliar brand. The RCBE225/30S maintains a recognised Clipsal switchboard fit while containing installation cost, which preserves margin on fixed-price contracts. Each unit arrives as specified and clips directly onto the DIN rail, so a full board of poles goes in efficiently on the tools. The trip-free ON/OFF locking mechanism also allows the circuit to be isolated during testing or maintenance.
The RCBE225/30S is rated IP20 and is not weatherproof, so it must be housed inside an enclosed switchboard or modular enclosure. It is not suited to outdoor, damp, or exposed locations, and switchboard installation must be carried out by a licensed electrician.
Verified Sparky Direct customer reviews: Clipsal RCBE225/30S | 25AMP RCBO 1P+N 4.5kA Resi MAX (RCBE225/30S)
"Looks great, feels great" — Cameron
"Great quality product from Clipsal, and cheap." — Marky
"Item as described. Great price and very quick delivery." — Grumpy
(RCBE22530S)
Switchboard work on the RCBE225/30S must be carried out by a licensed electrician. The RCBO clips onto the DIN rail as a single module and wires from the top or bottom, since the line and load terminals are non-sensitive. The two-year Clipsal warranty is void if installed by an unlicensed person.
The Resi MAX RCBO combines two functions in one module: a 25A C-curve overcurrent breaker for overload and short circuit, and a 30mA Type A residual-current device for earth leakage. Type A trips on both AC and pulsating DC fault currents, giving shock protection on final subcircuits.
The RCBE225/30S is a 1P+N device that takes just one 18mm module on the DIN rail. It protects one pole on the active, and the two-pole mechanism switches both the active and neutral contacts. The narrow width lets more RCBOs fit in a crowded board or load centre.
In most cases yes. The RCBE225/30S has non-sensitive line and load terminals and can be fed from the top or bottom, so existing cabling usually does not need re-running when swapping out another brand. The unit is designed to sit in Clipsal switchboards and Resi MAX boards.
The Resi MAX RCBO is certified to AS/NZS 61009, the Australian and New Zealand standard for residual current operated circuit breakers with integral overcurrent protection. It is also RoHS compliant. The rated breaking capacity is 4.5kA at 240V AC.
The RCBE225/30S carries a two-year Clipsal warranty for both domestic and commercial use, running from the invoice date. Clipsal handles claims as an in-home warranty on this product. Keep proof of purchase, and note the warranty is void if the RCBO is not installed by a licensed electrician.
The RCBO is rated IP20 (IP40 inside a modular enclosure) and is not weatherproof, so it cannot be installed outdoors or in a damp area. It must be housed in an enclosed switchboard, away from moisture and dust, and is not suitable for exposed locations.
The Clipsal by Schneider Electric RCBE225/30S is available online from Sparky Direct, with Australia-wide delivery to any state or territory including regional areas. Sparky Direct is an Australian electrical wholesaler established in 2005, supplying more than 500,000 customers with transparent trade pricing.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 2 Year
Commercial Use: 2 Year
Warranty Method: Clipsal in home warranty
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Clipsal by Schneider Electric |
| SKU | RCBE22530S |
| Model # | RCBE225/30S |
| Barcode # | 9311554758967 |
| Package Weight | 0.140kg |
| TYPE | VALUE |
|---|---|
| Type | Circuit Protection |
| Brand | Clipsal by Schneider Electric |
| Range | Clipsal - Max 4 |
| Rated Current (A) | 25 |
| Height (mm) | 92.5 |
| Width (mm) | 18 |
| Depth (mm) | 71.5 |
| Standards | AS/NZS 61009 |
| Mounting | DIN Rail |
| Voltage (V) | 240V |
| Number of Poles | 1P+N,1 |
| IP Rating | IP20 ( IP40 Enclosed ) |
| Breaking Capacity | 4.5kA |
| Box increments (This item is sold individually) | 12 |
| Neutral Position | Left |
| Earth Leakage Sensitivity | 30mA |
| Earth Leakage Protection Class | Type A |
| Curve | C |
