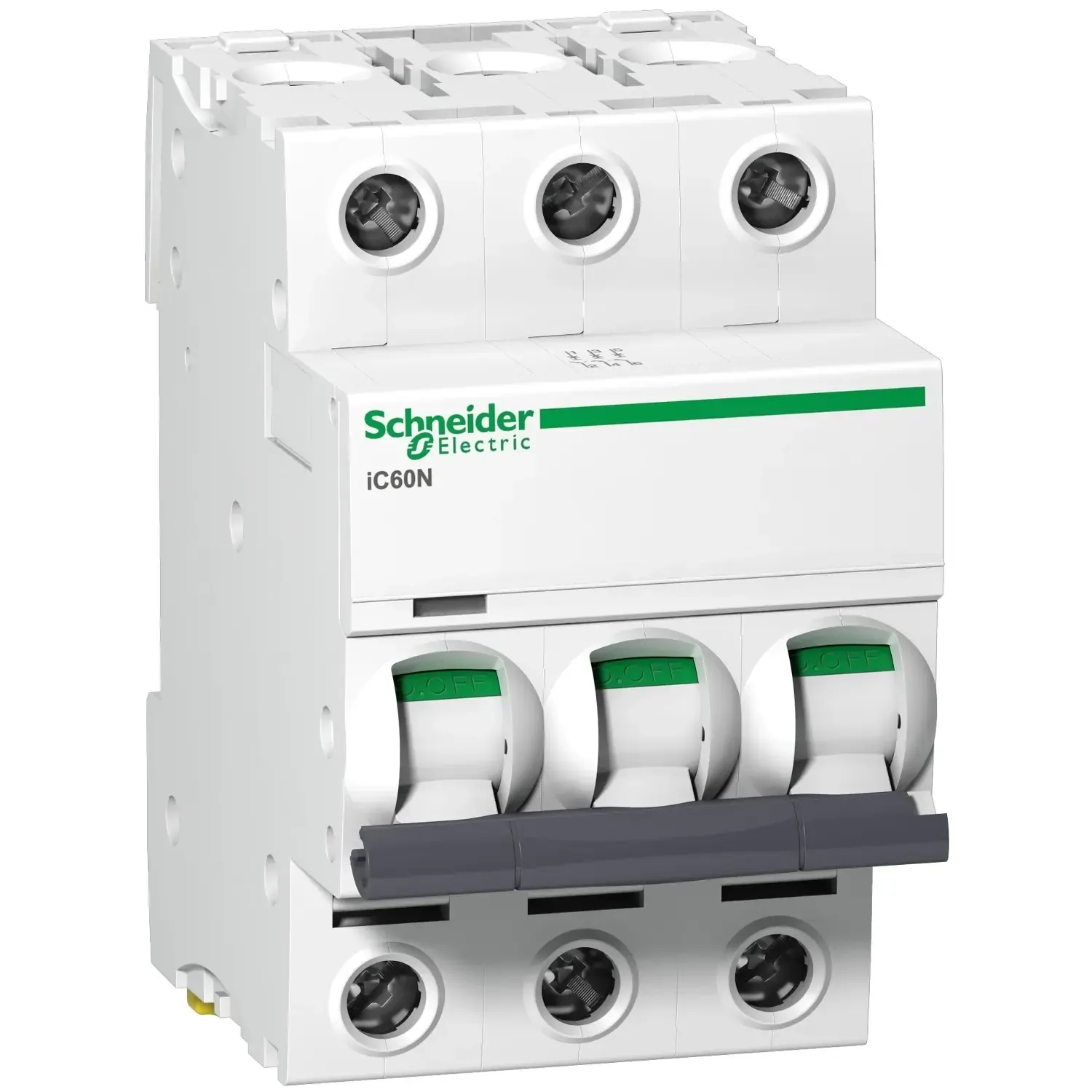

The Schneider Electric A9F44340 is a 40A three pole circuit breaker from the Acti9 iC60N Disbo range. It protects a three phase circuit against overload and short circuit, and all three phases trip together. The A9F44340 has a C curve and is rated 6000A Icn at 400V AC to EN/IEC 60898-1. It clips onto DIN rail and takes up three modules.
A 40A three phase circuit feeds sub-boards and larger fixed plant, and the board it sits in is not always in a cool switchroom. Plant rooms, rooftop enclosures and sheds run hot through summer, and coastal and tropical sites add humidity on top. The A9F44340 is rated to operate from -35 to 70 degrees Celsius and at 95 percent humidity at 55 degrees, with tropicalisation class 2 treatment to IEC 60068-1.
The A9F44340 is three modules wide, so it fits a standard three phase way on the rail. Mechanical endurance is 20000 operating cycles against 10000 electrical, which covers a circuit switched regularly for servicing. The handle padlocks and takes a seal in the off position.
The A9F44340 is not a residual current device and provides no earth leakage protection on its own. It is rated IP20, so installation must be inside a switchboard or enclosure, and the breaker is not suitable for exposed or wet positions. Rated voltage stops at 440V AC and 180V DC, so the device must not be fitted above those limits.
(A9F44340)
The A9F44340 protects a three phase circuit against overload and short circuit. A bimetallic element trips on sustained overcurrent, and a solenoid trips within milliseconds on a fault. All three poles open together, and the toggle is reset by hand once the fault is cleared.
The breaker conforms to EN/IEC 60898-1 and EN/IEC 60947-2. Rated short-circuit capacity is 6000A Icn at 400V AC under 60898-1, and 10kA Icu at 380 to 415V AC under 60947-2. Utilisation category is A, rated insulation voltage 500V AC, impulse withstand 6kV.
Installation or replacement inside a switchboard must be carried out by a licensed electrician under AS/NZS 3000. The breaker clips onto DIN rail without tools. Terminals are tightened to 3.5 N.m with 14mm of insulation stripped from the conductor.
One terminal top or bottom, taking 1 to 35mm2 rigid or 1 to 25mm2 flexible. Wire stripping length is 14mm for a top or bottom connection. Tightening torque is 3.5 N.m top or bottom.
The handle is padlockable, and sealable with 0.7mm cable diameter in the off or on position. A contact position indicator and a trip indicator are fitted, and control type is a toggle.
Earth leakage protection is listed as a separate block, so it is not built into the breaker. Protection covers overload and short circuit only.
Schneider Electric states a contractual warranty of 18 months. Claims are made through Schneider Electric, or through Sparky Direct, with proof of purchase and the date of installation.
The Schneider Electric A9F44340 is available online from Sparky Direct, with Australia-wide delivery to any state or territory including regional areas. Sparky Direct is an Australian electrical wholesaler established in 2005, supplying more than 500,000 customers with transparent trade pricing.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 18 Months
Commercial Use: 18 Months
Warranty Method: Clipsal in home warranty
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Clipsal by Schneider Electric |
| SKU | A9F44340 |
| Model # | A9F44340 |
| Barcode # | 3606480513459 |
| Package Weight | 0.319kg |
| TYPE | VALUE |
|---|---|
| Type | Circuit Protection |
| Brand | Schneider Electric |
| Range | Acti9 |
| Colour | White |
| Rated Current (A) | 40 |
| Height (mm) | 85 |
| Width (mm) | 54 |
| Depth (mm) | 78.5 |
| Protection | C Curve |
| Voltage (V) | 415 |
| Number of Poles | 3 |
