Learn more by watching our Clipsal RCBE232/30S | 32AMP RCBO 1P+N 4.5kA Resi MAX video.

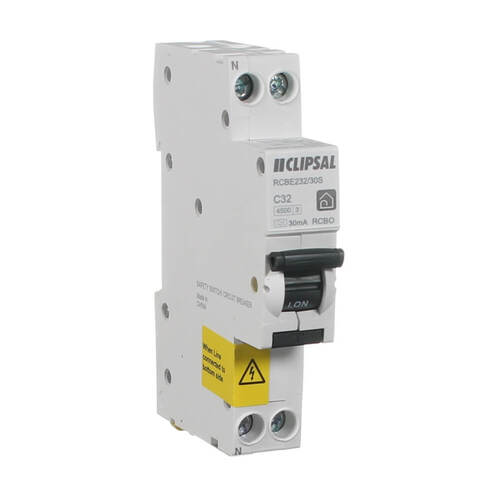

The Clipsal RCBE232/30S is a single-module RCBO rated 32A that combines overcurrent protection with 30mA earth-leakage detection in one pole width. The RCBE232/30S carries a Type A earth-leakage class, a C curve, and a 4.5kA breaking capacity, and complies with AS/NZS 61009. It mounts on standard DIN rail and is part of the Clipsal Resi MAX range.
Domestic switchboards fill up fast once every circuit needs residual current protection under current wiring rules. This device answers that with a single-module footprint that frees up board space while still switching both active and neutral. A sparky upgrading an older board, or chasing an earth-leakage fault on a power circuit, can drop one in without re-planning the whole load centre. Because the line and load terminals are non-sensitive, it can replace an alternative-brand RCBO with no rewiring.
Licensed electricians reach for the Resi MAX range when they want one consistent brand across a domestic board, so one replacement keeps the whole enclosure on a single brand and footprint. The RCBE232/30S can be wired from the top or bottom, which speeds up busbar and incoming cable connection on a tight board. It locks in the ON or OFF position with a trip-free mechanism, giving a defined isolation point during fault-finding. At trade pricing on a one-module device, it is an inexpensive line item to add when bringing an older board up to standard.
The RCBE232/30S is rated IP20 and must sit inside a switchboard or modular enclosure, never in an exposed or weather-affected position. It is a domestic distribution device and is not built for industrial fault levels above its 4.5kA breaking capacity. As a Type A device, it detects AC and pulsating DC earth leakage but not the smooth DC residual current produced by some electronic loads.
Verified Sparky Direct customer reviews: Clipsal RCBE232/30S | 32AMP RCBO 1P+N 4.5kA Resi MAX (RCBE232/30S)
"Clipsal quality, easy to work with" — Scott
"Finally managed to get one that matched the rest of my breakers" — Rob
"Great RCBO. Never had one fail or give me an issue" — HB
(RCBE23230S)
Installation must be carried out by a licensed electrician. The RCBE232/30S clips onto standard 35mm DIN rail in a switchboard, takes up one module, and can be wired from the top or bottom. Line and load terminals are non-sensitive, so terminal polarity is not critical.
The non-sensitive line and load terminals let the RCBE232/30S replace many alternative-brand RCBOs without rewiring the existing connections. It is one DIN module wide and suits Clipsal switchboards and most third-party enclosures that take 35mm DIN rail and a 1P+N device.
Type A earth-leakage protection detects both AC and pulsating DC residual currents at a 30mA threshold, the level used for shock protection on socket and lighting circuits. The device also gives overcurrent protection through a 32A thermal-magnetic C-curve trip and a 4.5kA breaking capacity.
This Resi MAX RCBO complies with AS/NZS 61009, the standard for residual current operated circuit breakers with integral overcurrent protection. It is also free of substances of very high concern (SVHC) and compliant with the EU RoHS directive for hazardous substances.
Resi MAX boards are commonly fed by a 1P+N pin-type busbar comb, such as the Clipsal RMXPH112 12-module comb, with the RMXPC1 cable connector set for tails. Both line and load can be taken from the top or bottom, so the comb can sit on either rail.
The RCBE232/30S carries a two-year Clipsal warranty for both domestic and commercial use, running from the invoice date. Clipsal handles many claims directly through an in-home service. Warranty is void if the device is not installed by a licensed electrician.
The RCBE232/30S is for indoor switchboard mounting only. It is rated IP20 on its own and IP40 inside a modular enclosure, so it must sit within an enclosure and never in an exposed or weather-affected spot. It is built for domestic boards, not industrial fault levels above 4.5kA.
The Clipsal by Schneider Electric RCBE232/30S is available online from Sparky Direct, with Australia-wide delivery to any state or territory including regional areas. Sparky Direct is an Australian electrical wholesaler established in 2005, supplying more than 500,000 customers with transparent trade pricing.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 2 Year
Commercial Use: 2 Year
Warranty Method: Clipsal in home warranty
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Clipsal by Schneider Electric |
| SKU | RCBE23230S |
| Model # | RCBE232/30S |
| Barcode # | 9311554758998 |
| Package Weight | 0.140kg |
| TYPE | VALUE |
|---|---|
| Type | Circuit Protection |
| Brand | Clipsal by Schneider Electric |
| Range | Clipsal - Max 4 |
| Rated Current (A) | 32 |
| Height (mm) | 92.5 |
| Width (mm) | 18 |
| Depth (mm) | 71.5 |
| Standards | AS/NZS 61009 |
| Mounting | Din Rail |
| Voltage (V) | 240V |
| Number of Poles | 1P+N |
| IP Rating | IP20 ( IP40 Enclosed ) |
| Breaking Capacity | 4.5kA |
| Box increments (This item is sold individually) | 12 |
| Neutral Position | Left |
| Earth Leakage Sensitivity | 30mA |
| Earth Leakage Protection Class | Type A |
| Curve | C |
