Learn more by watching our Major Tech MT1883 | 1000V AC/DC IP67 Manual Ranging Multimeter video.
Description:

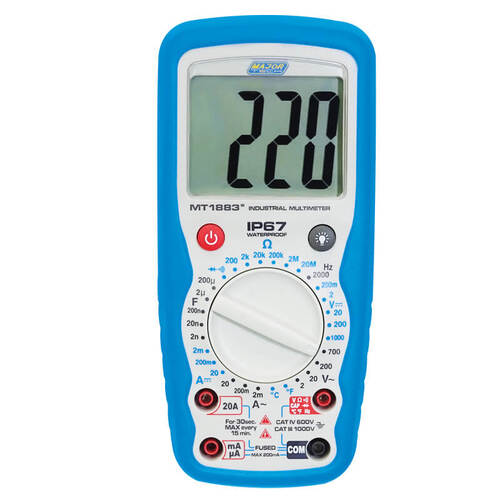

The MT1883 is an average reading 2000 count manual range DMM and has a large backlit LCD display. The meter measures AC voltage up to 700V and DC voltage up to 1000V, fused AC and DC current up to 10 Amps, temperature measurement in °C or °F, resistance, frequency measurement and capacitance measurement, plus a diode test function and continuity buzzer. The meter measures AC voltage and current for the frequency range of 50Hz to 400Hz. The MT1883 is the first choice for electronic technicians and electricians, including students studying electronics.
Features:
(MT1883)
Warranty starts from Invoice Date
Domestic Use: 2 Year
Commercial Use: 2 Year
Warranty Method: Return to Sparky Direct
All Major Tech Meters sold through Sparky Direct are covered by the manufacturer’s warranty. If you believe your meter is faulty or defective, you may request an assessment under this warranty policy.
To initiate a warranty claim:
Return to Sparky Direct
Ship the meter back to Sparky Direct along with:
Please ensure the unit is securely packaged to prevent damage in transit.
Forwarded for Assessment
Upon receiving your meter, we will forward it to Major Tech’s authorised service centre for inspection, testing, and calibration.
Major Tech’s service lab will assess the returned unit to determine:
As Major Tech’s service labs are independent providers, Sparky Direct cannot govern or guarantee turnaround times or any costs incurred for repairs outside of warranty coverage.
Function | Range | Resolution | Accuracy |
DC voltage | 200mV – 1000V | 0.1mV | ±(0.5% + 2 Digits) |
AC voltage | 2.000V – 700V | 0.1mV | ±(1.0% + 3 Digits) |
DC Current | 10A | 2.000mA – 10A | ±(2.5% + 10 Digits) |
AC Current | 10A | 2.000mA – 10A | ±(3.0% + 10 Digits) |
Resistance | 200.0Ω – 20.00MΩ | 0.1Ω | ±(1.2% + 2 Digits) |
Frequency | 2000kHz | 1Hz | ±(1.5% + 5 Digits) |
Capacitance | 2.000nF – 200.0μF | 1pF | ±(4.0% + 3 Digits) |
Temperature | -20°C to 760°C | 1°C | ±(3.0% + 5 Digits) |
AC Bandwidth | 50Hz to 400Hz | ||
Digital Display | 2000 | ||
Continuity | Yes | ||
Diode Test | Yes | ||
Overrange Indication | Yes | ||
Input Impedance | >10MΩ VDC & >9MΩ VAC | ||
Min Max | Yes | ||
Enclosure | Double moulded waterproof IP67 | ||
Low Battery Indication | Yes | ||
Battery | 9V | ||
Weight | 375g | ||
Dimensions | 182 x 81 x 50mm | ||
Safety Specs | IEC61010-1 CAT IV 600V |
These specifications and characteristics outline physical, mechanical, electrical details.
Brand | Major Tech |
SKU | MT1883 |
Barcode # | 6008229006166 |
Package Weight | 0.732kg |
Package Width | 0.130m |
Package Height | 0.130m |
Package Length | 0.225m |
TYPE | VALUE |
---|---|
Type | Multimeter |
Brand | Major Tech |
Battery | 9V |
Safety Specs | IEC61010-1 CAT IV 600V |
DC Voltage | 200mV – 1000V |
Dimensions (mm) | 182 x 81 x 50mm |
