        Learn more by watching our Major Tech MT222 | 22kV AC Voltage Detector video.

        Additional related video.

        Description

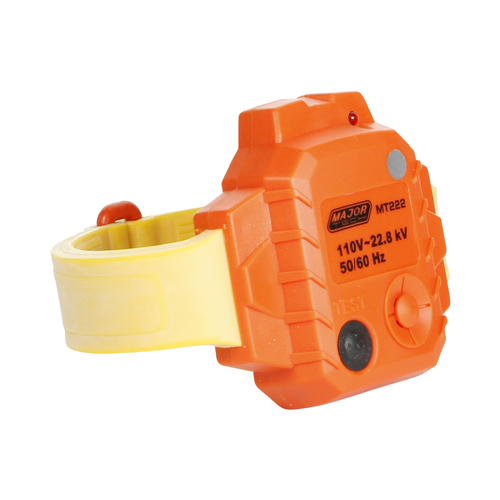

        Major Tech MT222 | 22kV AC Voltage Detector

        Description:

        The MT222 is a personal sensor for detecting AC Voltage from 100V AC to 22kV AC and alert users with bright LED indication and a loud audible buzzer sound, while approaching live equipment where dangerous voltage is present. The MT222 provides electric engineering personnel, power engineering personnel, firefighting personnel and instrument equipment workers with prominent warning when approaching high voltage source. Supplied with a rubber strap and hooks, the unit can be worn on the wrist, around the arm or placed on a safety helmet. The unit uses a CR2032 battery and typical battery life is around 50 hours.

        Features:

        • Compact, easy to wear and convenient in use
        • LED visual indication and Audible indication
        • AC voltage detection from 100V to 22kV
        • Non-contact detection by proximity
        • IP65 waterproof housing
        • Use on wrist, arm or on a safety helmet
        • Self-test function
        • Comply with EN 61326-1
        • Low power consumption

        (MT222)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 2 Year
        Commercial Use: 2 Year
        Warranty Method: Return to Sparky Direct

        All Major Tech Meters sold through Sparky Direct are covered by the manufacturer’s warranty. If you believe your meter is faulty or defective, you may request an assessment under this warranty policy.

        How to Lodge a Warranty Claim

        To initiate a warranty claim:

        1. Return to Sparky Direct
          Ship the meter back to Sparky Direct along with:

          • A copy of your proof of purchase
          • A brief description of the issue
          • Your contact details

          Please ensure the unit is securely packaged to prevent damage in transit.

        2. Forwarded for Assessment
          Upon receiving your meter, we will forward it to Major Tech’s authorised service centre for inspection, testing, and calibration.

        Assessment Process

        Major Tech’s service lab will assess the returned unit to determine:

        • Whether the fault is due to a manufacturer’s defect (covered under warranty), or
        • If the issue is the result of user error or no fault is found.

        Outcomes

        • If approved under warranty: The product will be repaired or replaced at no cost to you.
        • If not covered under warranty: The lab may offer repair services, which will be quoted and billed directly to you by the service provider.

        Important Notes

        As Major Tech’s service labs are independent providers, Sparky Direct cannot govern or guarantee turnaround times or any costs incurred for repairs outside of warranty coverage.

        Please allow up to 7-14 working days for the return of your product.

        Features

        Specifications

        Function Range
        Power On Indicator Self-Test button
        Non-Contact Voltage (NCV) Yes
        AC Voltage 110 – 22.8kV
        Frequency 50 – 60Hz
        Voltage Detector Visual Red LED
        Voltage Detector Audible Intermitted beeps
        Enclosure Moulded IP65
        Battery CR2032
        Weight 70g
        Dimensions 61 x 62 x 18.5mm
        Safety Specs IEC61326-1
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Major Tech
        SKU MT222
        Barcode # 6008229034459
        Package Weight 0.170kg
        Package Width 0.074m
        Package Height 0.135m
        Package Length 0.158m
        TYPE VALUE
        Type Compact Multimeter
        Brand Major Tech
        Dimensions (mm) 61 x 62 x 18.5mm
        Voltage Detector Visual Red LED
        Voltage Detector Audible Intermitted beeps
