Learn more by watching our Major Tech MT873 | 600V AC/DC True RMS Multimeter video.
Additional related video.
Description:

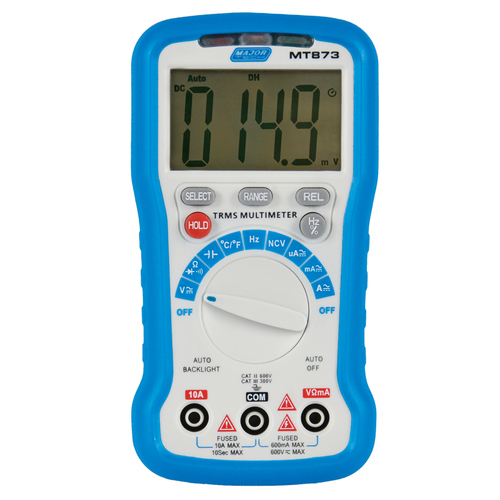

The MT873 is a True RMS multimeter and can be used to measure AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, Non-Contact AC Voltage (NCV) detection, diode test and audible continuity. It also features data hold & relative mode functions. This multimeter is a slim sized, portable, robust drop-proof digital multimeter that has a 6000 count digit LCD monitor with large 25mm digits that offer clear and easy reading. The circuitry design is centred on large-scale IC A/D converters in conjunction with an overload protection circuit, the meter offers excellent performance and is ideal for a versatile digital multimeter.
Features:
(MT873)
Warranty starts from Invoice Date
Domestic Use: 2 Year
Commercial Use: 2 Year
Warranty Method: Return to Sparky Direct
All Major Tech Meters sold through Sparky Direct are covered by the manufacturer’s warranty. If you believe your meter is faulty or defective, you may request an assessment under this warranty policy.
To initiate a warranty claim:
Return to Sparky Direct
Ship the meter back to Sparky Direct along with:
Please ensure the unit is securely packaged to prevent damage in transit.
Forwarded for Assessment
Upon receiving your meter, we will forward it to Major Tech’s authorised service centre for inspection, testing, and calibration.
Major Tech’s service lab will assess the returned unit to determine:
As Major Tech’s service labs are independent providers, Sparky Direct cannot govern or guarantee turnaround times or any costs incurred for repairs outside of warranty coverage.
Function | Range | Resolution | Accuracy |
DC Voltage | 600mV – 600V | 0.1mV | ±(0.5% + 2 Digits) |
AC Voltage | 6V – 600V | 1mV | ±(1.0% + 3 Digits) |
DC Current | 600μA – 10A | 0.1μA | ±(1.2% + 2 Digits) |
AC Current | 600μA – 10A | 0.1μA | ±(1.5% + 3 Digits) |
Duty Cycle | 0.1 to 99.9% | 0.001 | ±(2% + 2 Digits) |
Resistance | 600Ω – 60MΩ | 0.1Ω | ±(1.0% + 2 Digits) |
Frequency | 9.999Hz – 9.999MHz | 0.001Hz | ±(0.1% + 5 Digits) |
Capacitance | 9.999nF – 99.99mF | 1pF | ±(2.5% + 5 Digits) |
Temperature | -20°C to 1000°C | 1°C | ±(3.0% + 1°C Digits) |
True RMS Measurements | Yes | ||
AC Bandwidth | 40Hz to 400Hz | ||
Digital Display | 6000 | ||
Continuity | Yes | ||
Diode Test | Yes | ||
Non-Contact Voltage (NCV) | Yes | ||
Overrange Indication | Yes | ||
Input Impedance | 10MΩ VDC & 10MΩ VAC | ||
Data Hold | Yes | ||
Enclosure | Rubber holster | ||
Low Battery Indication | Yes | ||
Battery | 9V | ||
Dimensions | 150 x 100 x 36mm | ||
Safety Specs | IEC61010-1 CAT II 600V |
These specifications and characteristics outline physical, mechanical, electrical details.
Brand | Major Tech |
SKU | MT873 |
Barcode # | 6008229027512 |
Package Weight | 0.341kg |
Package Width | 0.060m |
Package Height | 0.180m |
Package Length | 0.110m |
TYPE | VALUE |
---|---|
Type | Compact Multimeter |
Brand | Major Tech |
Height (mm) | 36 |
Width (mm) | 100 |
Length (mm) | 150 |
